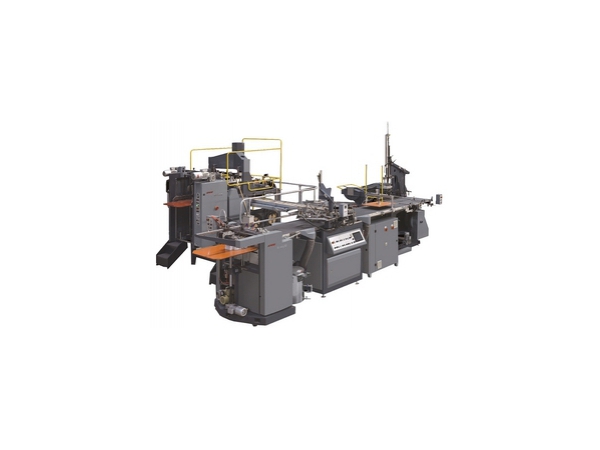

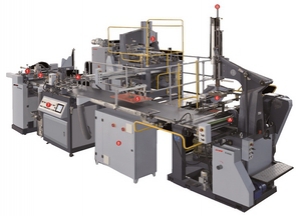

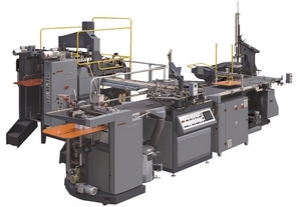

S600/S600A Automatic Rigid Box Making Machine
Forming and folding mechanism adopts mechanical and electrical pneumatic to solve the whole folding ear, middle folding ear.
Forming and folding mechanism adopt mechanical and pneumatic together to achieve full fold into the high-end 60mm
Features
- Feeder part: Feeder to achieve automatic delivery for wrap paper and cardboard, suck one sheet per time precisely, keep them no deviation during delivery.
- Gluer part: Hot-melting glue system to automatic heating, circulation, mix the glue and precision to control the viscosity of glue, can also automatic wash up gluing tank after finish glue work.
- Corner tapping part: Automatic folding cardboard and sticking its four corners by hot melt glue tape, then delivery it to named place of converying belt.
- Spotter part: The hydraulic pneumatic spotter device combine with precision photoelectric detecting switch can to correcting and keep right positioning the sticked cardboard box on glued wrap paper.
- Press part: The square press tooling can compact each conveying box that under its range, make the touch surface between wrap paper and cardboard more neat and smooth, expel air bubbles.
- Box forming parts: Can continuous feeding, folding box, turn in box, box wrapped with one time finish.
- Control panel: The convenient control panel equipped with sensitive touch screen-HMI system can freely transform between English and Chinese, make each operate turn to easy.
- PLC Part: This machine adopts the advanced PLC, it can precision control and realize the details operation of automatic rigid box production process.
Remark
1.The max and min size of the boxes are affect by those size of material and quality of material.
2.The detail production speed of this machine depend on several factors: raw materials, glue and the operator's skill.
