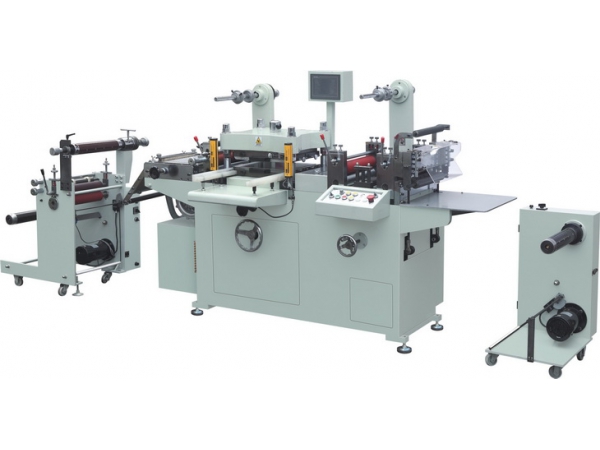

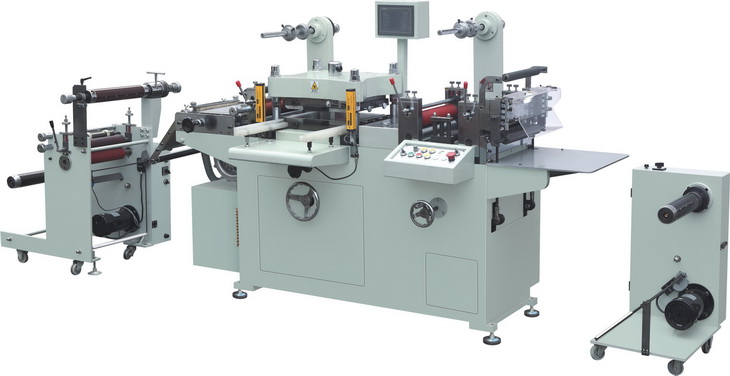

YS-350B/450B
flatbed die cutter integrates the die cutting and laminating, which can perform
multi-layer laminating, partial laminating and multi-web laminating. The
laminating and stripping system are driven by an advanced motor. Feeding,
laminating, stripping, rewinding and all processes are automatically controlled
the PLC system.
The
die cutter machine construction is sturdy, durable and stable. Oil gear case is
built inside to reduce abrasion, extend working life and improve machine
efficiency.
Applicable materials
Various insulating materials including PVC, films, Mylar film, copper foil, aluminum foil, foam, etc.
Specifications
Model | YS-350B | YS-450B |
Die Cutting Speed | 30-180次/分 | 30-170/次/分 |
Max. Web Width | 320mm | 420mm |
Max. Unwind Diameter | 580mm | 580mm |
Max. Rewind Diameter | 580mm | 580mm |
Max. Die Cutting Width | 300mm*350mm | 400mm*450mm |
Positioning Precision | ±0.10mm | ±0.10mm |
Main Motor Power | 2.2kw | 3.0kw |
Total power | 4.5kw | 6kw |
Power Supply | 220V/380 | 220V/380 |
Overall Dimension | 2900X1300X1450mm | 3000X1400X1450mm |
Weight | About 1700kg | About 2500kg |
