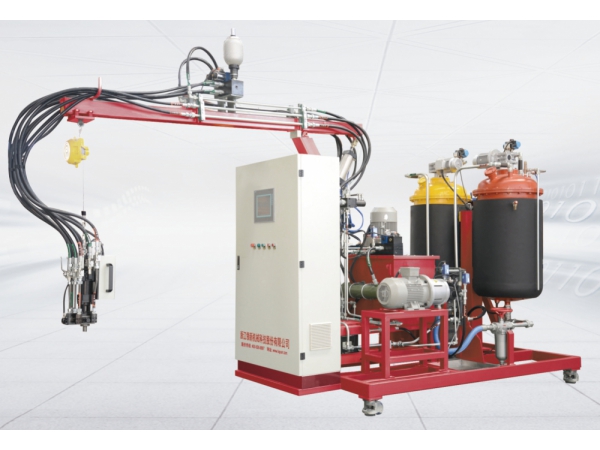

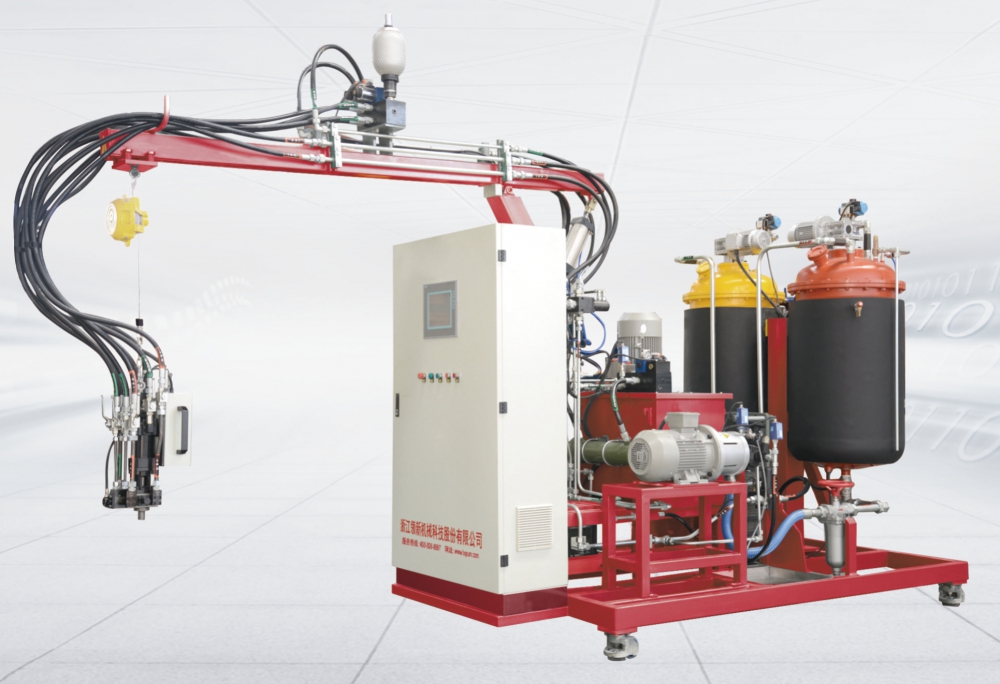

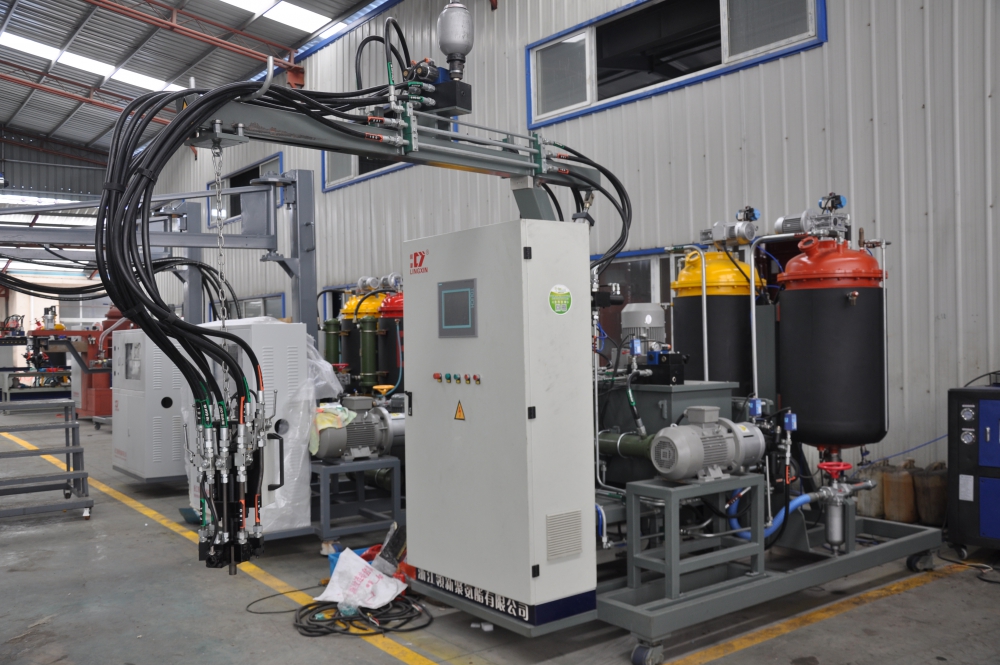

The rigid foam high pressure polyurethane foaming machine is specially designed for the production of polyurethane products by automatically mixing and pouring polyurethane. The PU foaming machine is compatible with foaming of 141B and complete water foaming systems.
The high pressure foaming machine provides pressure generated from its main pump. The polyhydric alcohol and polyisocyanate materials will be mixed under high pressure. Therefore, the mixing head is easy to use and does not need regular cleaning, and the foaming quality is higher than other mixing operations.
The series of high pressure foaming machine is typically used to prepare rigid polyurethane foam plastics. This sort of foam plastics have good performance in sealing, heat preservation and waterproof qualities. They are often used as refrigerator and cold storage insulation layers, heat accompanying pipelines, insulation boards and more.
1. The Gelanrex high precision plunger variable pump provides accurate and steady operation.
2. This feeding program provides 100 stations, and every station can be set directly to meet the production of multiple products.
3. The mixing head used for the injection process can move freely in six directions, include front and back, left and right, up and down. Additionally, the double close switch control ensures accurate injection.

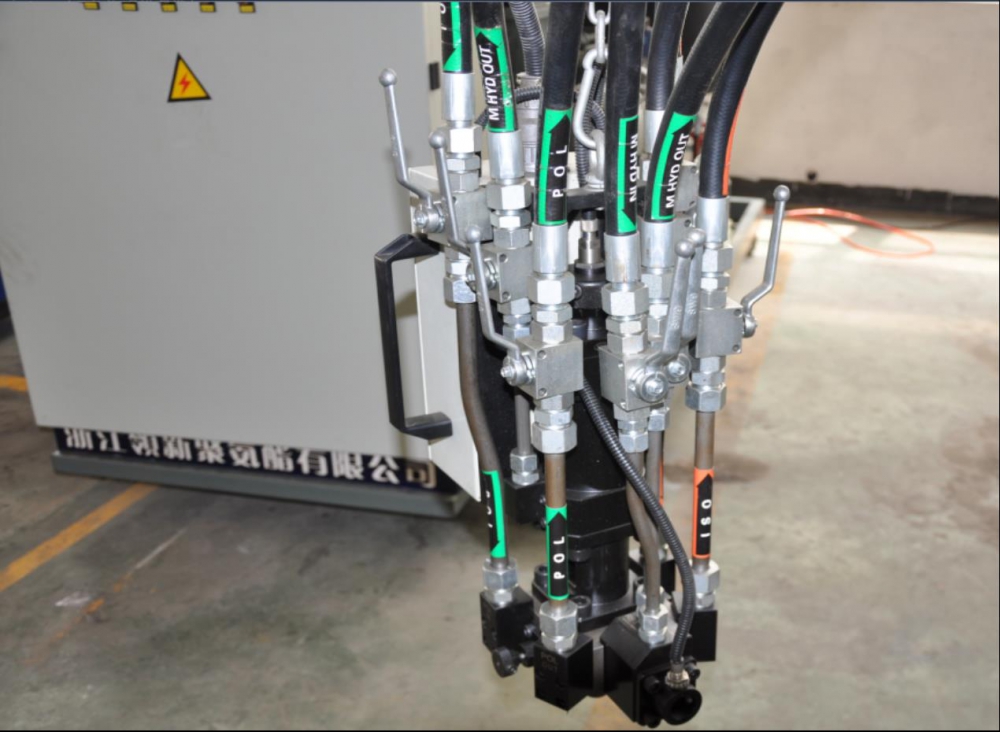

4. The high precision mixing head is made of high strength material. The service life is over 500,000 uses. High pressure injection and impact mixing produces a high level of mixing uniformity. The machine's self-cleaning function leaves no residue, meaning no cleaning and no maintenance.
5. The pressure needle valve handles two kinds of raw materials (polyisocyanate and polyhydric alcohol) and they will be automatically locked when they achieve mixing balance, to ensure the pressure of the two materials is consistent.

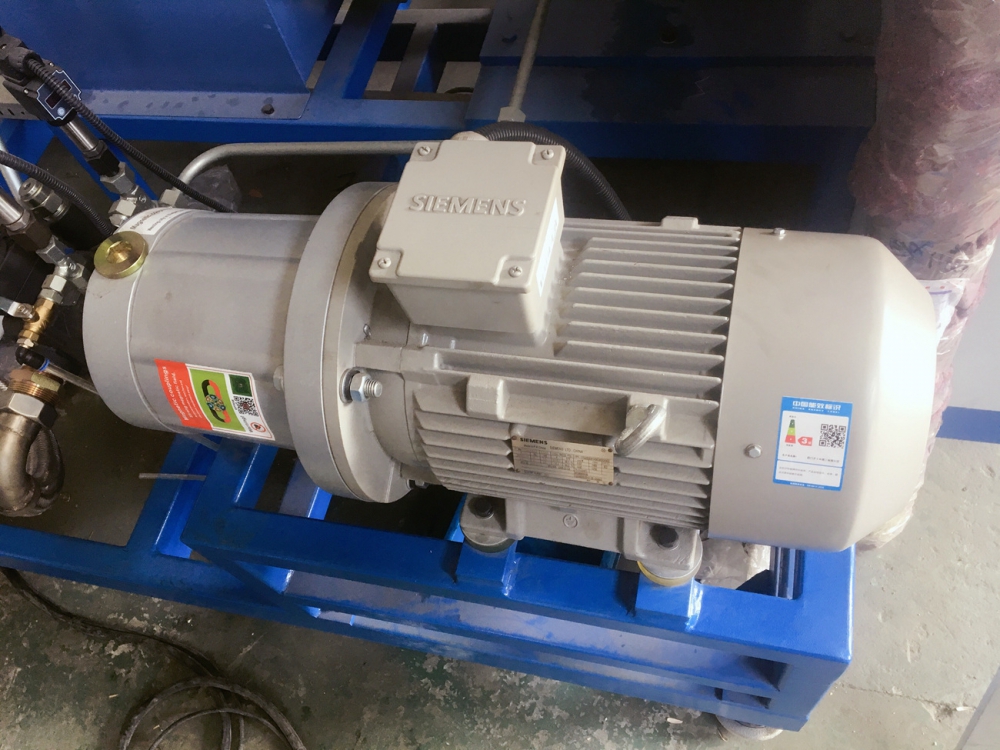

6. The magnetic coupling adopts permanent magnet control that prevents temperature increases and leakages.
7. The raw materials timing cycle function makes sure the raw material does not crystallize when the equipment is not being used.
8. A fully digitized and modularized integration system controls all technological process. It features excellent visualization for precise and safe operation.
If you do not find what you need on this table, please contact Lingxin directly and customize the polyurethane equipment that meets your actual needs.
