Features
Yongshi

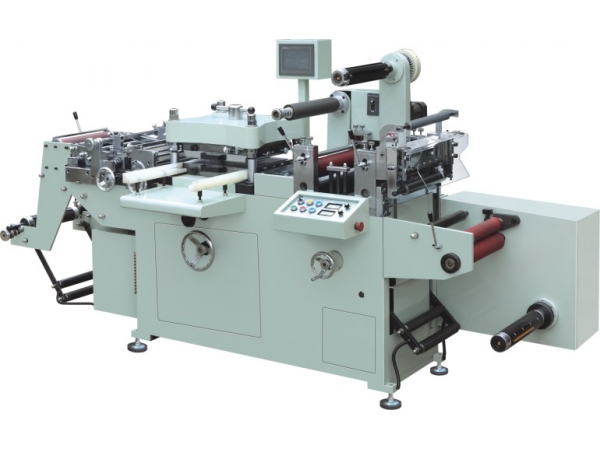

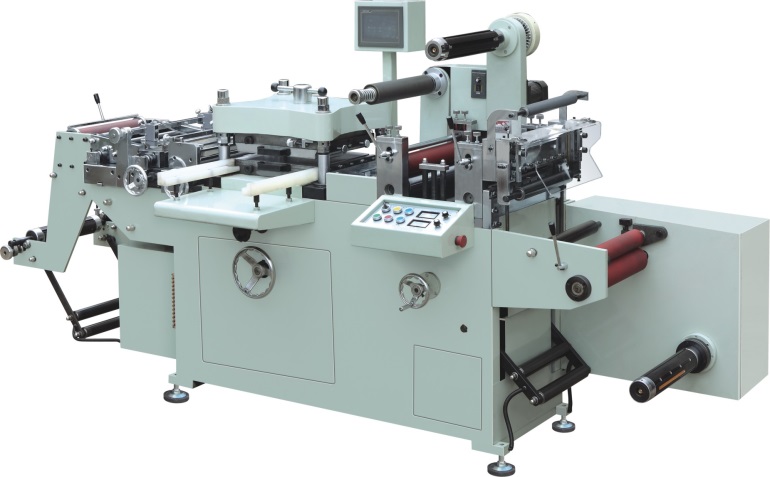

YS-350Z high speed flatbed die cutter adopts a flatbed die cutting press and
steel rule dies to convert materials into custom shapes and designs. A
photoelectric sensor is adopted to detect and track the position of fed web to
ensure the cutting precision and consistency.
This flatbed die cutting machine features a servo motor driven feeder and advanced control HMI to provide a maximal die cutting speed of 300 times/min. The PLC computer auto controls all processes from material feeding, die cutting, stripping, waste removal to unwinding.
Applications
The flatbed die cutter is ideal for cutting of labels of different materials: paper, cloth, adhesive laminates, plastic/polymer films, etc. It can be paired with high-speed label printing machine, flexo printing machine, continuous screen-printing machine, gravure printing machine or anti-counterfeiting label press. The high-speed die cutter is applicable to a variety of industries including electronics, adhesive tapes, packaging, clothing, digital printing, nameplates, etc.
Optional：laminating, gold stamping, perforating
Specifications
model | YS-350Z |
Max. Feeding width | 320mm |
Cutting Area | 300*350mm |
Cutting Speed | 300 times/min |
Positioning Accuracy | ±0.10mm |
Main Motor Power | 3.0kw |
Overall Dimension(L*W*H) | 2900*1300*1400mm |
Unwinding/Rewinding Diameter | 600mm |
Voltage | 380v |
Total power | 6kw |
weight | 1700kg |

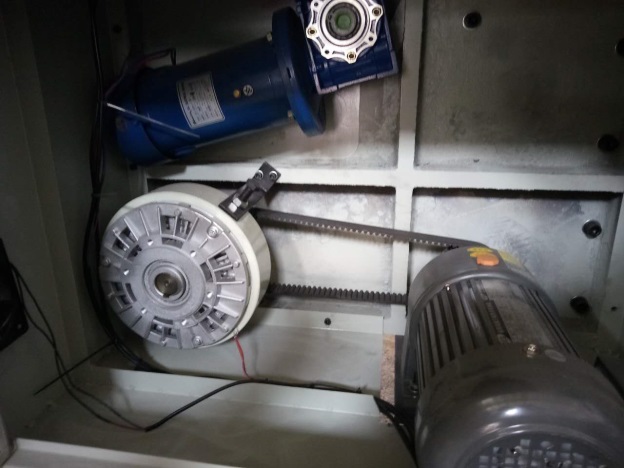

Independent
motor for waste removal and magnetic powder control

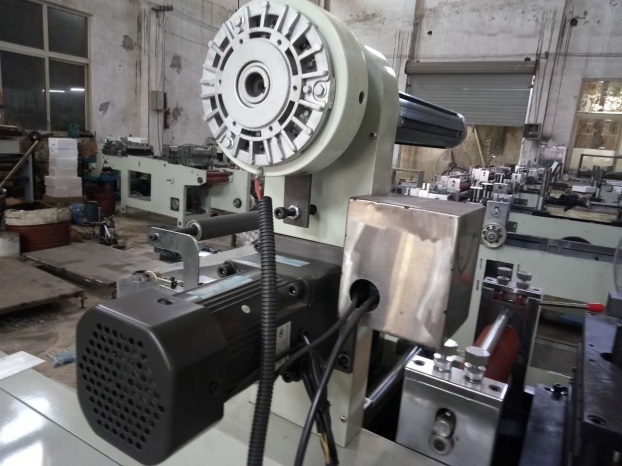

Independent motor for rewinding and magnetic powder control

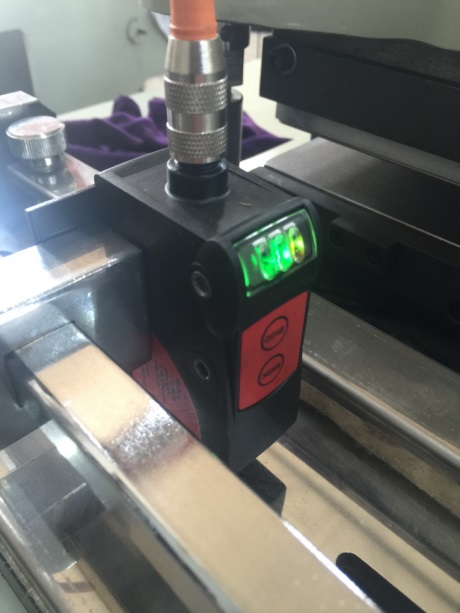

LEUZE color code tracking device

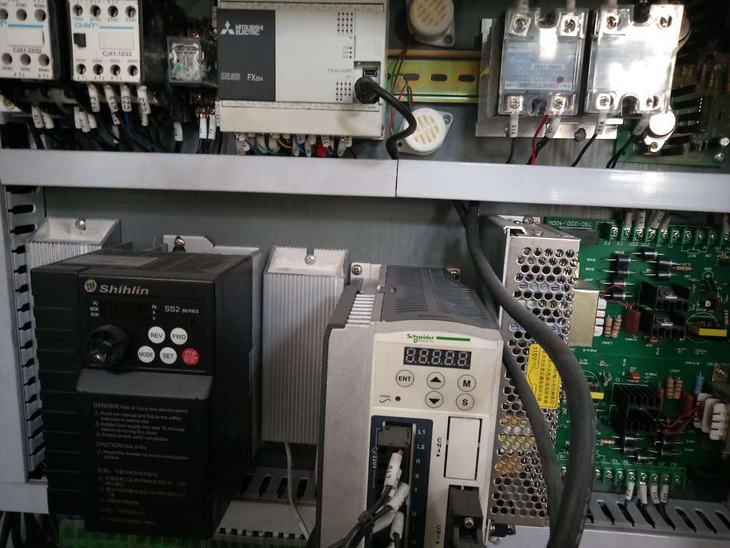

Advanced electrical control system
