Features

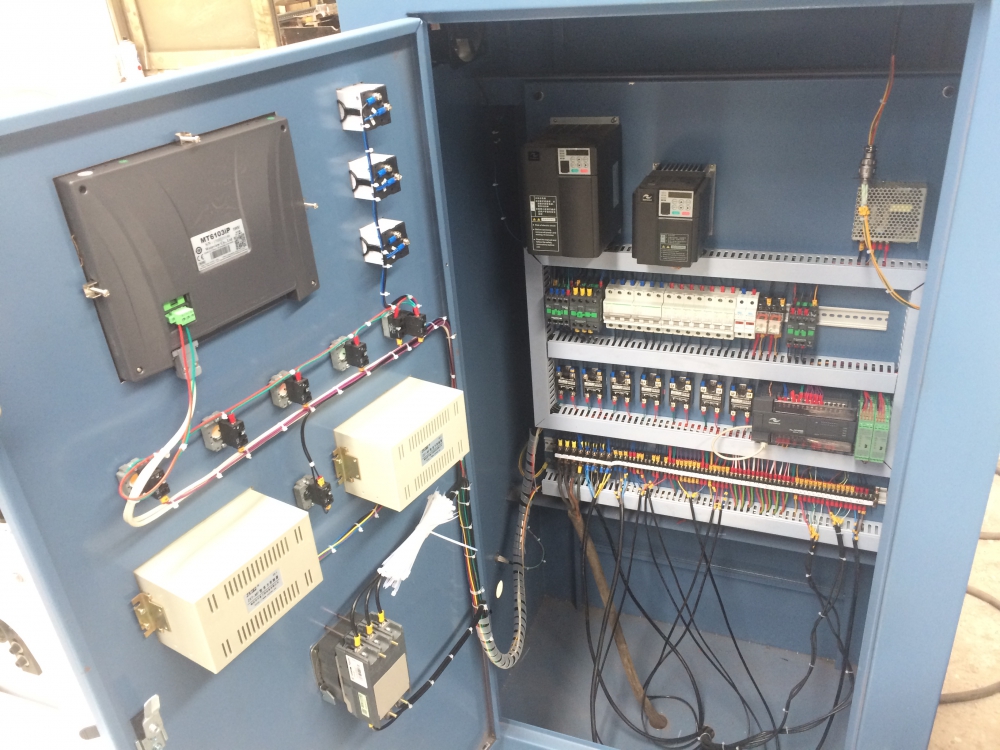

1. RT series hot melt coater features a PLC control system with touch screen HMI, providing easy operation. With high automation, the hot melt adhesive fed can be precisely controlled according to the required coating width and coating thickness.
2. Adopting a PID controller offers precise temperature control in the hot melt coating machine, with tolerance less than 1℃.
3. The melt tank comes with the Teflon anti-stick coat on the surface, preventing hot melt adhesive against carbonization.
4. The hot melt coating equipment is equipped with a high precision gear metering pump, allowing for stable adhesive feeding especially at high and low speed.

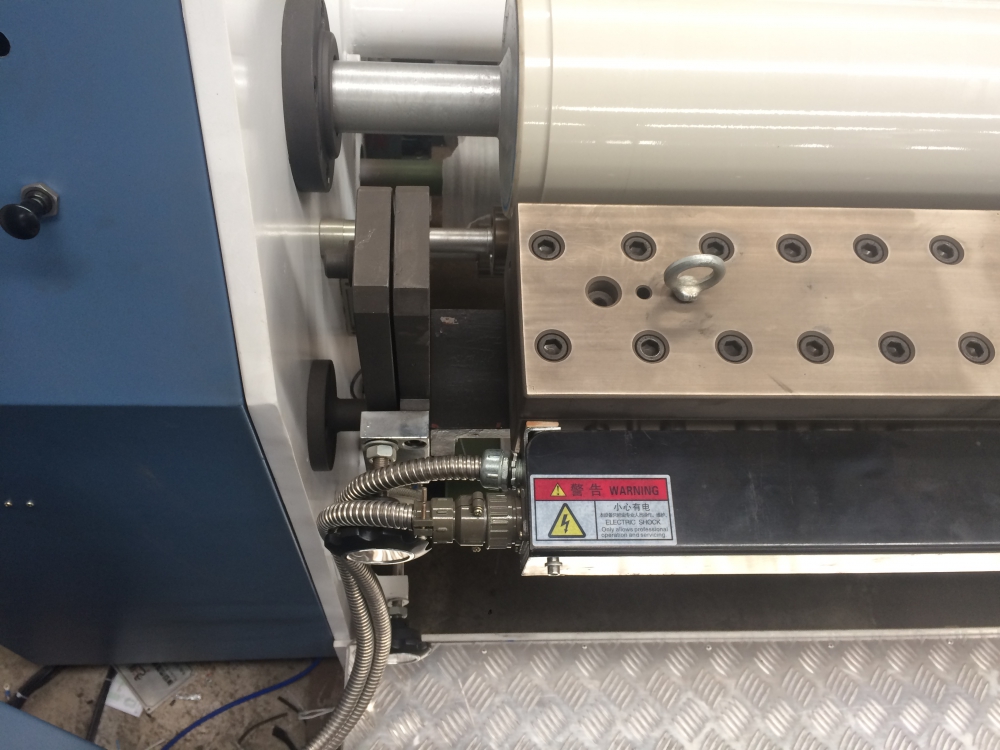

5. Featuring with a superior quality alloy coating head, the hot melt coater machine ensures excellent coating result.

Applications

The hot melt coater is applied for manufacturing labels, tapes and tamper evident products in one pass, and is widely used as:
Paper Roll Coater

Wood Roll Coater

Metal Roll Coater

Glass Roll Coater

Plastic Roll Coater

Foam Roll Coater

Hardboard Roll Coater

Technical Parameters

Model	RT
Coating Width	400-2500mm
Coating Weight	10-200g/㎡
Coating Speed	50M/min
Unwind Roll Diameter	1000mm
Rewind Roll Diameter	700mm
Web Guiding System	1 set
Length	4800mm
Height	1350mm
