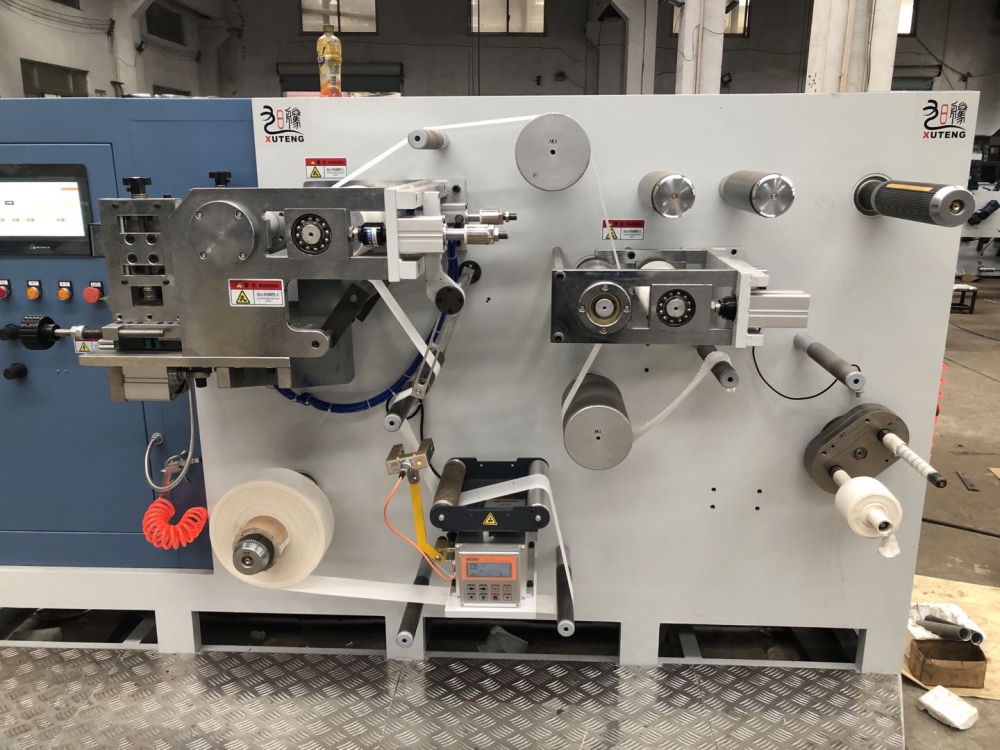

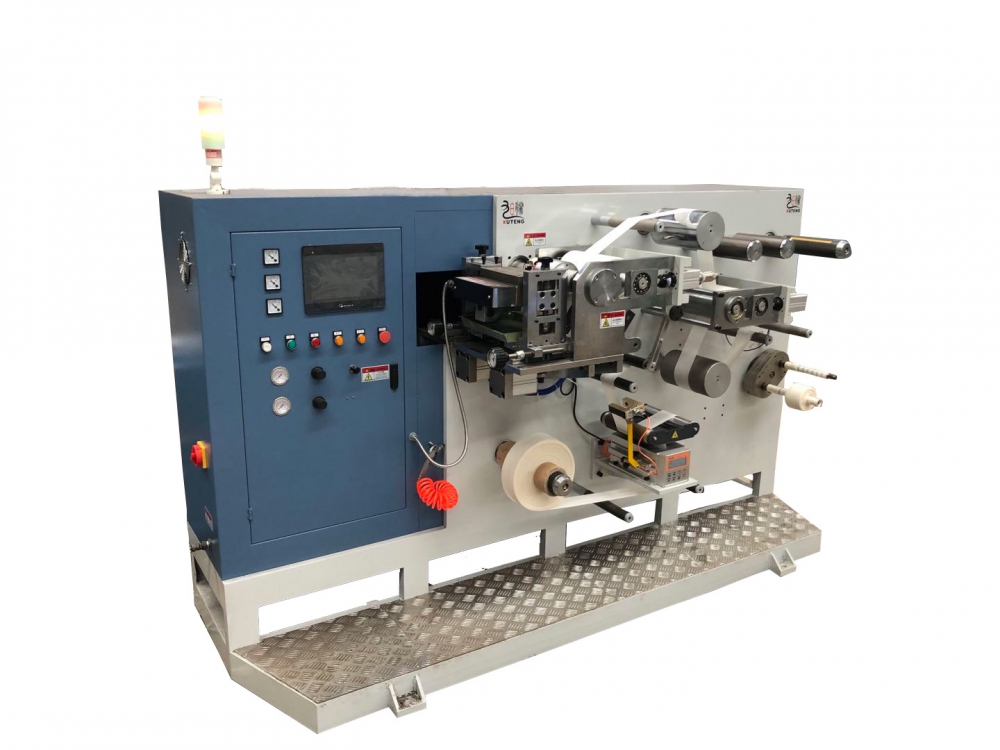

Hot Melt Coater for Elastic Bandage (RTB200 Series)
RTB200 series hot melt coater is type of roll coating equipment which is specially designed for the manufacture of elastic bandages.
Features 1. Featuring with compact size and easy operation, the hot melt coating machine
is designed with a coating width up to 200mm, which is an ideal hot melt
coating machine for elastic bandages with narrow web.
2. Partial or full coating is realized by utilizing transfer coating; Coating
weight can be freely adjusted to meet different application needs.
3. With high coating stability, roll coating with zero tension is suitable for
the coating of elastic substrates featuring no stretch and deformation.
4. An automatic web guiding system provides smooth material feeding.
5. Coating technique can be customized according to customer needs.
Technical
Parameters
Model | RTB |
Length | 2100mm |
Width | 950mm |
Height | 1300mm |
Width of All Rolls | 240mm |
Max. Coating Width | 200mm |
Max. Substrate Diameter | 400mm |
Diameter of Paper Core | 76mm |
Unwinding Unit | 2sets |
Rewinding Unit | 1sets |
Coating Weight | 15-120g/m² |
Max. Coating Speed | 30m/min |
