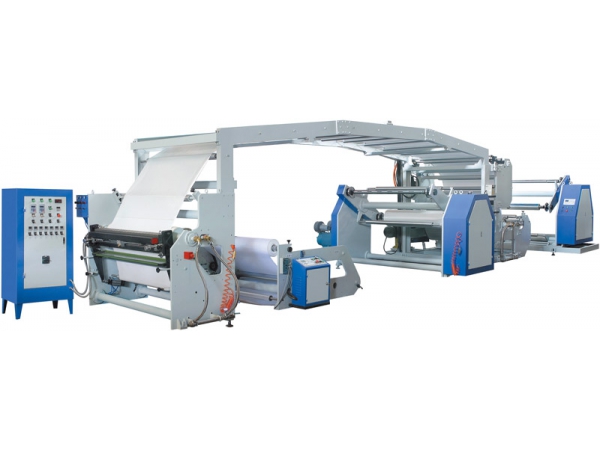

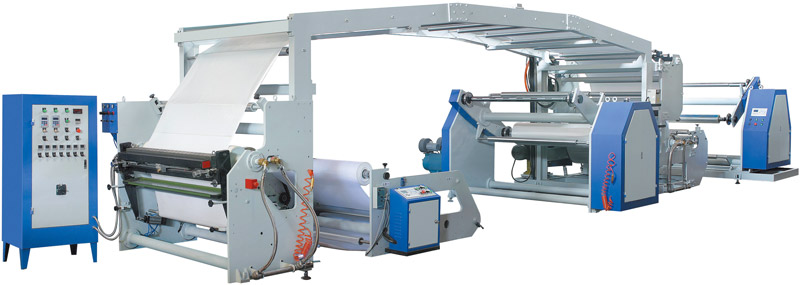

Hot Melt Roll Coating Equipment, 150M/min Double Station (RTH Series)

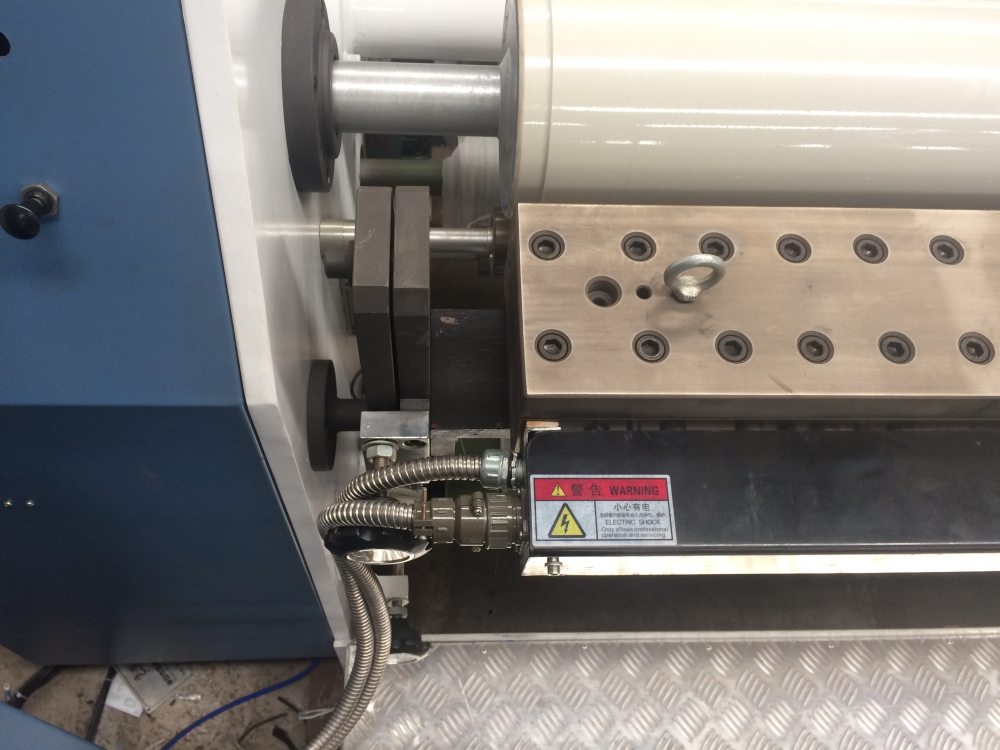

Features 1. Equipped with high precision alloy steel coating heads, outstanding coating
result is achieved by the hot melt coating equipment.
2. The hot melt roll coating equipment is designed with two stations for
rewind/unwind. Roll change can be quickly carried out without machine stop.
3. High production speed up to 150m/min
4. The time interval from coating to laminating is prolonged, minimizing the
damage to the substrate laminated.
Applications
The hot melt coating machine is especially suited for the coating of pressure sensitive adhesives, which is used to manufacture self-adhesive labels, thermal labels, tapes, etc.
Technical Parameters
Model | RTH |
Coating Width | 400-2500mm |
Coating Weight | 10-200g/㎡ |
Coating Speed | 150M/min |
Unwind Roll Diameter | 1000mm |
Rewind Roll Diameter | 1000mm |
Web Guiding System | 1 set |
Length | 12000mm |
Height | 2600mm |
