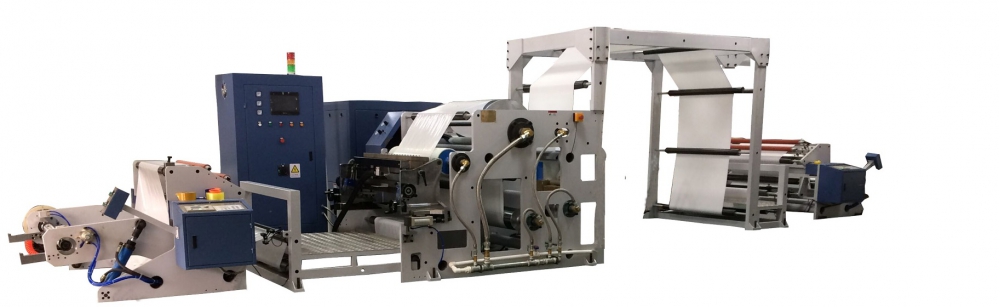

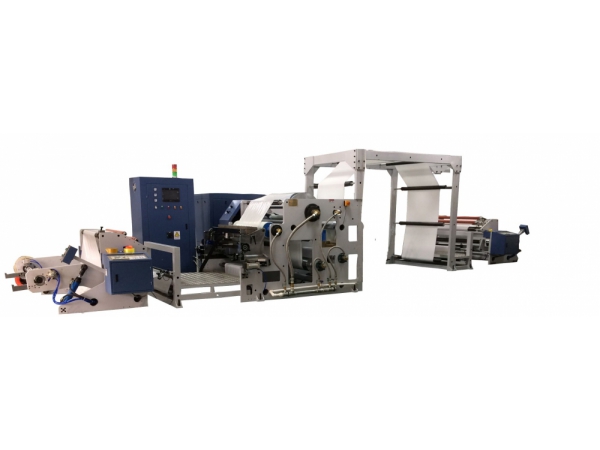

Non-Scratch Hot Melt Coater, High Speed Hot Melt Coating (WHT-150 Series)
High speed hot melt coating machine is suitable for pressure-sensitive hot melt adhesive coating. It's applicable to the manufacture of thermal labels, electronic labels, transparent film adhesive tapes, etc.

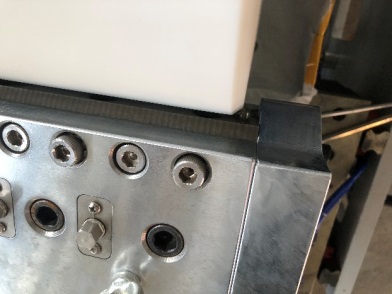

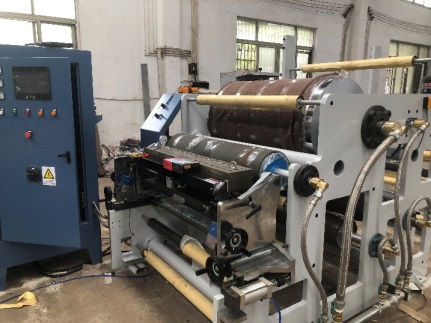

Features 1. Smooth coating surface achieved by utilizing the latest coating head.

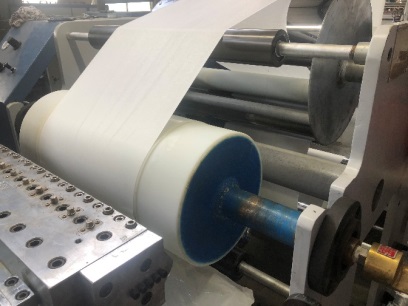

2. The tension for the rewind unit is controlled by an independent servo motor,
allowing for low failure.
3. Hydraulic lifting device for material loading and unloading; quick roll
change without machine stop; easy operation

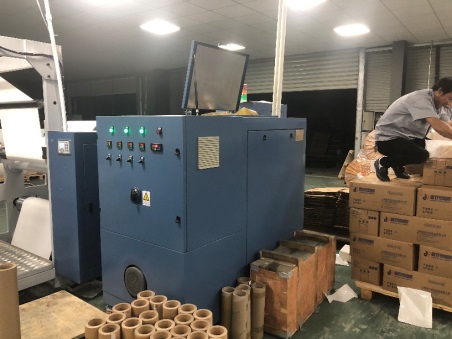

4. The hot melt coater features a PLC control system with touch screen HMI,
providing easy operation. With high automation, the hot melt adhesive fed can
be precisely controlled according to the required coating width and coating
thickness.
Technical Parameters
Model | WHT-150 |
Coating Width | 400-1500mm |
Coating Weight | 13-80g/m2 |
Coating Speed | 150m/min |
Unwinding Unit | 2 sets |
Unwind Roll Diameter | 1000mm |
Rewinding Unit | 1 set (two positions) |
Rewind Roll Diameter | 1000mm |
Max. Working Temperature | 230℃ |
Length | 12000mm |
Height | 2500mm |
