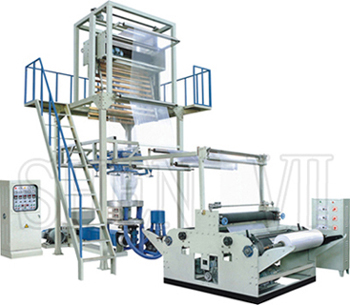

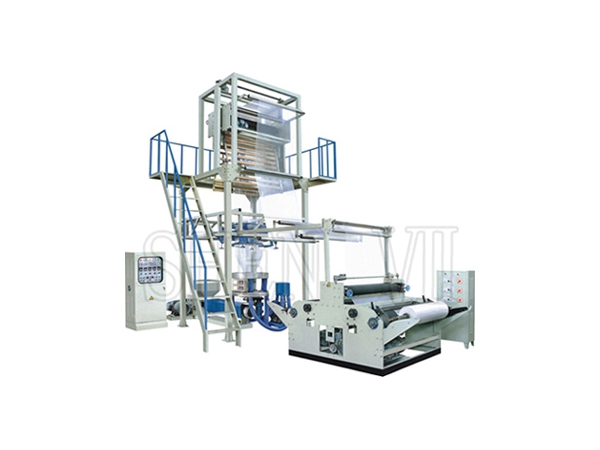

The plastic blown film extrusion machine , a kind of rotary head blowing machine, is ideal for blowing plastic films of all types such as low density polyethylene (LDPE), high density polyethylene (HDPE), and linear low density polyethylene (LLDPE). They are used for garbage bag, vest bag, printing composition, fluids packing, etc.
Features
1. The machine barrel and screw arbor of the pe film blowing achine
both use quality alloy steel, with nitriding and fine machining.
2. The dual-reeling dual-unreeling reeling devices, power of which
uses moment motor, are able to maintain proper tension, regular reeling
and unreeling, and easy reel change.
| Model of Machine | SJ-C600 | SJ-C800 | SJ-C55 | SJ-C60 |
| Suitable Material | LDPE , HDPE | LDPE , HDPE | LDPE , HDPE , LLDPE | LDPE , HDPE , LLDPE |
| Screw Diameter | ф55mm | ф55mm | ф55mm | ф60mm |
| Screw I/D Length | L/D 28:1 | L/D 28:1 | L/D 28:1 | L/D 28:1 |
| Blowing Film Driving Motor | 11kw | 15kw | 15kw | 18.5kw |
| Max. Extrusion Output | 35kg /hr | 50kg /hr | 50kg /h | 65kg /h |
| Die Size | 40-80mm | 80-130mm | ф100-ф150mm | ф100-ф180mm |
| Width of Blowing Film | 600mm | 600mm | 800mm | 1000mm |
| Thickness of Blowing Film | 0.008 ~ 0.10 mm | 0.008 ~ 0.10 mm | 0.01-0.10 mm | 0.01`0.10 mm |
| Weight of Overall | 4300kg | 5000kg | 2300kg | 3000kg |
| Cover Dimensions(LxWxH) | 7500 x2000 x 3200mm | 8000 x 2400 x 4000mm | 6000 ×2000 ×4000mm | 6500 × 2200 × 4500mm |
ShenⅦ is a primary PE film blowing machine manufacturer based in China. We also offer printing machine, laminating machine, paper bag machine, non woven bag machine, and much more.
