Features

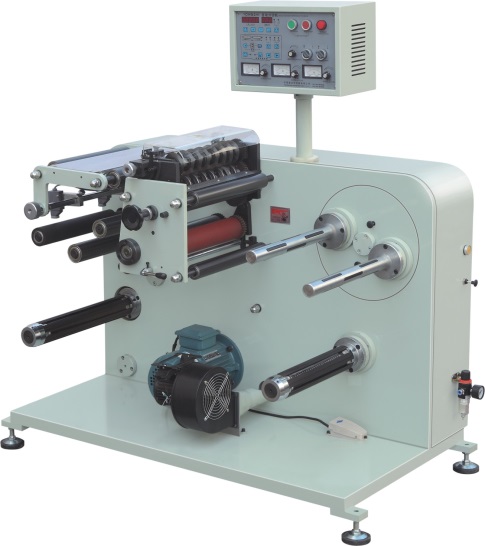

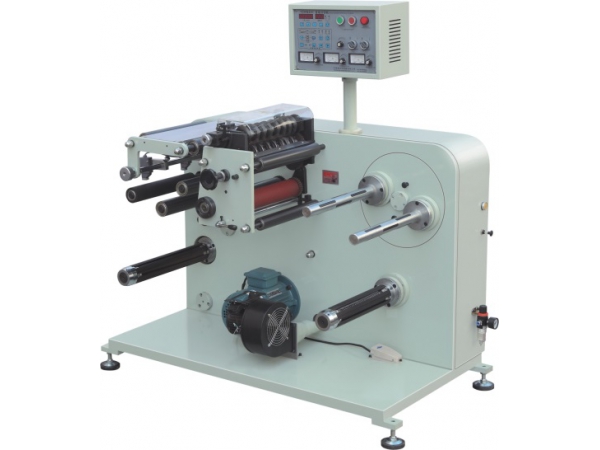

YS-320FII/420FII
automatic turret rewinder, 2 spindle turret works in combination with an auto
die cutter and is suitable for slitting narrow web paper labels.
The automatic turret rewinder is designed with functions like auto web length count, fixed-length auto stop, auto web guide and position correction, etc. It delivers superior performance with features of compact design, high production efficiency, high slitting precision, easy operations and high stability.
Specifications
Type | YS-320FII | YS-420FII |
Slitting Speed | 120m/min | 120m/min |
Max. Web Width | 320mm | 420mm |
Max. Unwind Roll Diameter | 500mm | 500mm |
Max. Rewind Roll Diameter | 500mm | 500mm |
Min. Slit Width | 16mm | 16mm |
Max. Slit Width | 320mm | 420mm |
Positioning Accuracy | ±0.10mm | ±0.10mm |
Voltage | 220v | 220v |
Main Motor Power | 1.5kw | 1.5kw |
Weight | 400kg | 500kg |
Overall Dimension | 1200*800*1280mm | 1300*900*1280mm |
