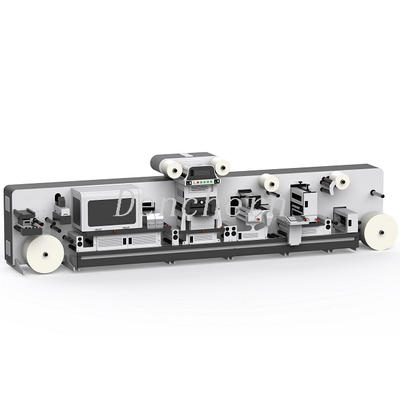

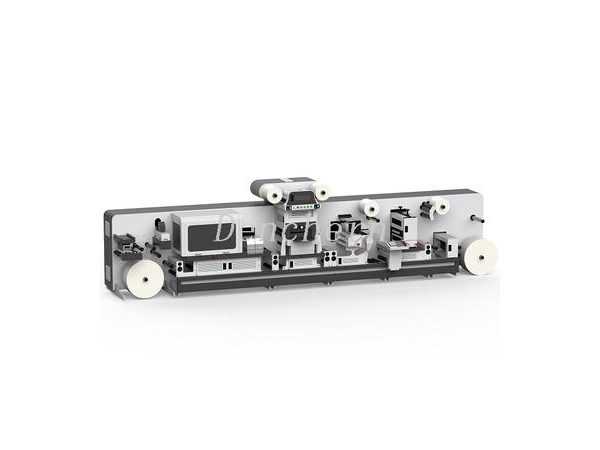

DCFM370-SUPER series is designed as module unit, it can be customized as per customer's requirement. This machine can be with flat bed screen printing, flat bed hot stamping, semi rotary flexo, semi rotary die cutting, slitting unit. It is driven by full servo, easy and smart for operation. It can save time and material, improve the competitiveness of production.
Model | 370 | 480 |
Max. web width | 370mm | 480mm |
Web thickness | 40-250um | 40-250um |
Max. unwind dia. | 800mm | 800mm |
Max. rewind dia. | 800mm | 800mm |
Screen printing length | 50-660mm | 50-660mm |
Screen printing speed | 100times/min | 100times/min |
Hot stamping length | 50-350mm | 50-350mm |
Flat bed die cutting max. speed | 400times/min | 400times/min |
Flexo printing repeat length | 50-444.5mm(max. 666.75 as optional) | 50-444.5mm(max. 666.75 as optional) |
Flexo printing speed | 300times/min | 300times/min |
Full rotary/intermittent die cutting length | 50-444.5mm(max. 666.75 as optional) | 50-444.5mm(max. 666.75 as optional) |
Full rotary/intermittent die cutting speed | 300times/min | 300times/min |
Auto slitting min. width | 20mm | 20mm |
Slitting knife | 8 sets | 8 sets |
