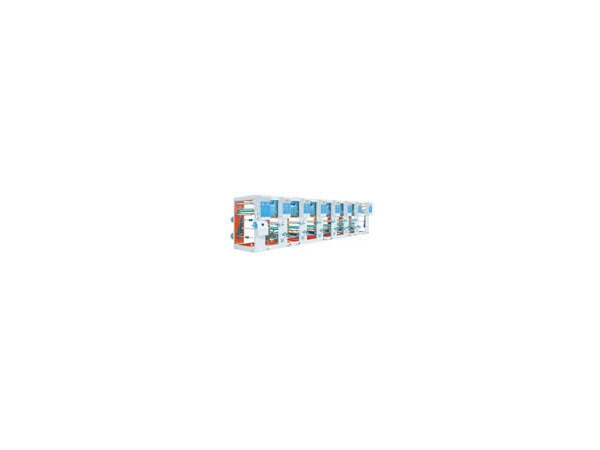

The rotogravure printing machine is suitable for printing on plastic film rolls, OPP, non-woven fabrics, PVC, thin leather, paper, aluminum foil, cloth and various soft packaging.
It is ideal printing equipment for wine boxes, shoe bag and vest bags.
Main Technical Variables
| Model | ASY-600/6 color | ASY-800/6 color | ASY-1000/6 color | ASY-1200/6 color |
| Printing Width | 600mm | 800mm | 1000mm | 1200mm |
| Printing Length | 240-940mm | 240-940mm | 240-940mm | 240-940mm |
| Max. Printing Speed | 50m/min | 50m/min | 50m/min | 50m/min |
| Register Precision | ±0.25mm | ±0.25mm | ±0.25mm | ±0.25mm |
| Power of main motor | 4kw | 4kw | 4kw | 5.5kw |
| Fan Power | 0.19kw/unit | 0.19kw/unit | 0.19kw/unit | 0.19kw/unit |
| Heating Power | 3.2kw | 4kw | 4.5kw | 5kw |
| Total Power | 18kw | 22kw | 26kw | 30kw |
| Overall Dimension | 8300*1200*1860mm | 8300*1400*1860mm | 8300*1600*1860mm | 8300*1800*1860mm |
As a professional rotogravure printing machine manufacturer in China, we also offer soft handle sealing machine, label slitting rewinding machine, sensitive resin plate making machine, cling wrap film making machine, etc.
