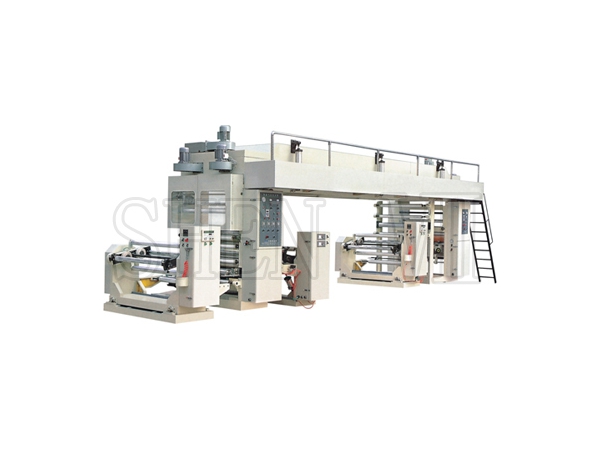

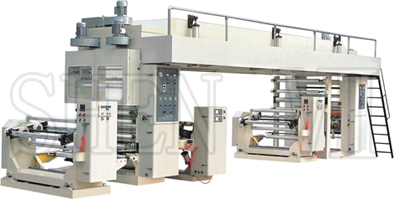

The full auto 2-layer packing material laminating machine is applied to BOPP, PET, CPP, PVCD, aluminum-plated film, and aluminum-tissue, as well as the compound film and paper with the same properties. Its mechanical speed is 70m/min.
| Technical Model | GF-B11100 |
| Layers of Complex | 2 layer |
| Compounding Width | 1100mm |
| Suitable Diameter | 600mm |
| Adjustable Speed | 50-120m/min |
| Maxi Adjustable Temp. of the Oven | 80℃ |
| Maxi Adjustable Temp. of the Heat Beat | 70℃ |
| Tension's Equivalent Extension Ratio | ≤1/1000 |
| Total Power | 50KW |
| Weight | 4500kg |
| Overall Dimensions (L×W×H) | 9000×1900×2600 |
Features
1. The main transmission unit of the full auto laminating machine uses
alternating current variable frequency vector to control the motor. The
spreading roller and hot drum are synchronized and use swing arms to
control tightness and looseness of the film in the oven channels.
2. Group 1 and 2 feeders use double working stations to pre-start,
pneumatic edge correction device, and automatic tension control.
3. The anilox rollers use scraper for scrapping and spreading, and the
spreading thickness can be freely adjusted through the scrapper. The
rubber roller uses a double air cylinder to increase the pressure, and
the pressure can be freely adjusted.
4. An intelligent thermocontroller is used for temperature control of
the oven channel. The material protecting roller and the hot drum can
rotate synchronously.
5. The laminating hot drum is heated through the heat conducting oil,
which achieves uniform heating effect and low power consumption. The
press roller uses a double air cylinder, and the pressure is adjustable.
6. The material receiving device adopts double working station to pre-start. A torque motor is used for rewinding.
We are a China-based full auto laminating machine manufacturer. We also supply paper cup machine, film blowing machine, slitting machine, printing machine, and much more.
