Features
1. Programmable control
With PLC programmable controller, our horizontal pillow pack packaging machine achieves programmed operation.
2. E-text display
The packing machine is fitted with TD-200 display screen, which clearly shows the machine speed, bag length, compensation and other information.
3. Self-regulation of bag length
Users can directly adjust the bag length on the TD-200 display, and the computer program will automatically regulate the length, which is quick and convenient.
4. Bidirectional benchmarking compensation
The superior photo-electric color code tracking device, coupled with PLC computer program and bidirectional compensation mechanism, ensures automatic tracking, and rapid and accurate benchmarking.
5. Four automatic temperature controllers
Temperature of each heating section is controlled by temperature controllers to achieve high sealing quality.
6. Automatic medicine feeding
The horizontal pillow pack packaging machine suits automatic feeding for aluminum-plastic medicine plates of varied specifications.
7. This machine comes with a coding machine, which prints the batch number, date of manufacture, term of validity, etc. on the outer packing.

Main Technical Parameters

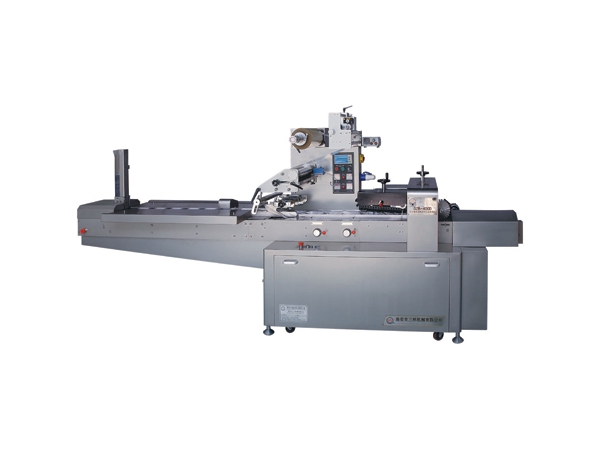

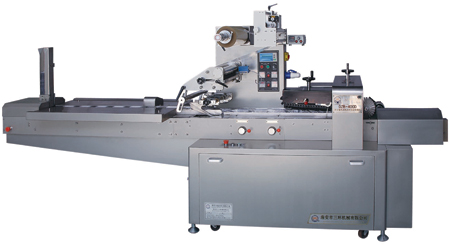

Horizontal Pillow Pack Packaging Machine, DZB-250D
Production Capacity: 30-120Bags/min, depending on packing film material
Packing Size: L: 60-150mm, W: 30-110, H: 5-30mm
Height for Angle Fold: Can not fold the angle
Width of the Film: 250mm
Total Power: 2kw
Rated Voltage: 220V/50Hz
Weight: 680Kg
Overall Dimension: L*W*H: 3500*640*1600mm
