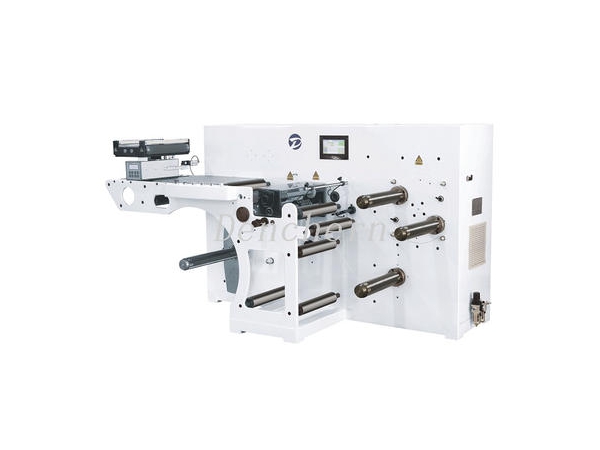

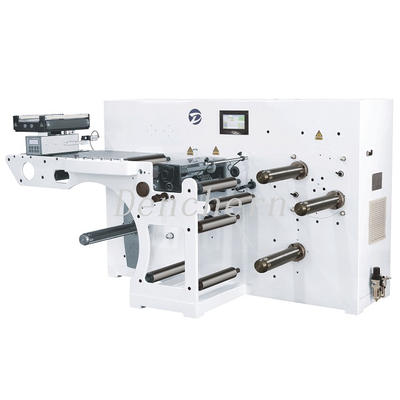

HSR-370 High speed slittig machine is developed by denchern machinery co.,Itd.Which mainly for Narrow web label slitting,.It adopts full servo driven system, taper tension control system, internatonal famous webguide system, turret type rewinding system. It's suitable for different size inner cores slitting and rewinding.
Model | HSR-370 |
Speed | 350m/min |
MaX. Feed Web | 370mm |
Max. Unwind Dia. | 800mm |
Max. Up Unwind Dia. | 450mm |
Max. Down Rewind Dia. | 700mm |
Razor Knife | optional |
Circular Knife | 6 sets |
Precision | ±0.1mm |
Voltage | 380V.50HZ |
Power | 9kw |
Dimension9 (L*W*H) | 2200mm*1350mm*1350mm |
Weight | 1300kg |
