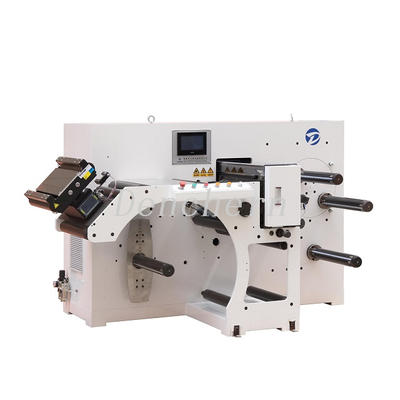

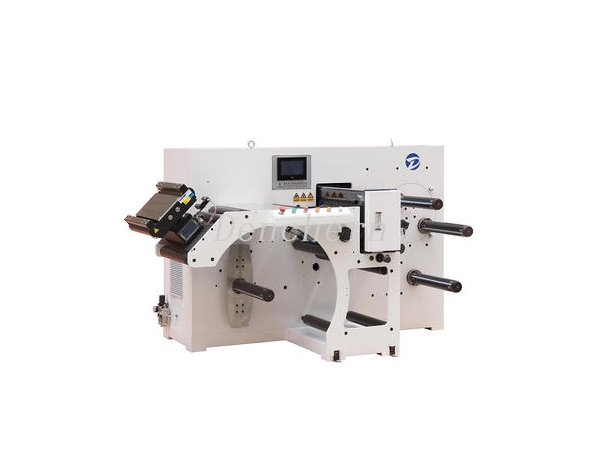

HSR370-MASTER High speed slitting machine is developed by Denchern machinery co.,ltd. which mainly for narrow web label slitting. It adopts full servo motor driven system, taper tension control system, international famous webguide system,turret type rewinding system, It's suitable for different size inner cores slitting and rewinding.
Model | 370 | 480 | 550 |
Speed | 350m/min | 350m/min | 350m/min |
Max. feed web | 370 | 480 | 550 |
Max. unwind dia. | 800mm | 800mm | 800mm |
Max. rewind dia. | 450mm | 450mm | 450mm |
Max. down rewind dia. | 800mm | 800mm | 800mm |
Razor knife | optional | optional | optional |
Min slitting width | 20mm | 20mm | 20mm |
Power | 9kw | 12kw | 15kw |
Dimension | 2200*1350*1350mm | 2200*1460*1350mm | 2200*1530*1350mm |
Weight | 1300kg | 1500kg | 1800kg |
