NJP-3500,3300 LCD Screen Control Automatic Capsule Filling Machine
NJP-3500,3300 LCD Screen Control Automatic Capsule Filling Machine NJP-3500,3300 LCD Screen Control Automatic Capsule Filling Machine NJP-3500,3300 LCD Screen Control Automatic Capsule Filling Machine NJP-3500,3300 LCD Screen Control Automatic Capsule Filling Machine

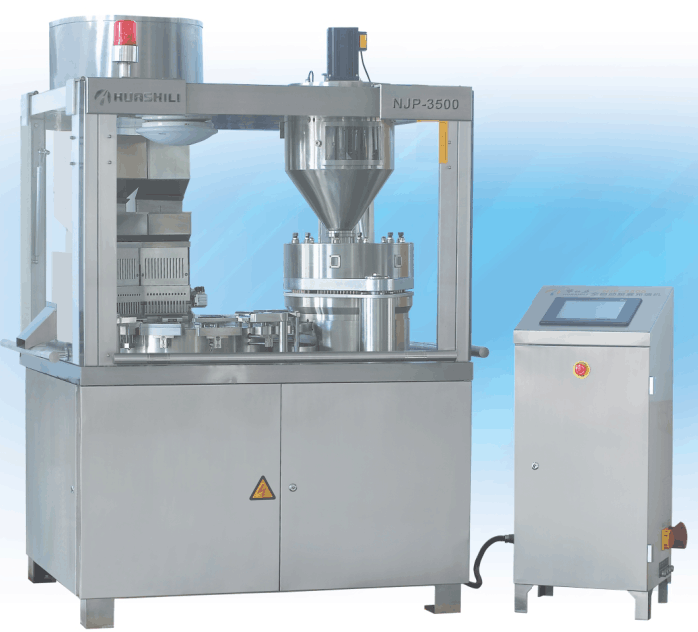

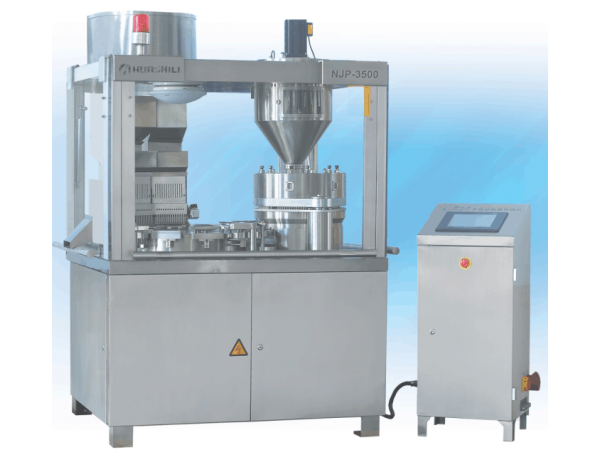

NJP-3500,3300 LCD Screen Control Automatic Capsule Filling Machine

The WISELY NJP-3500,3300 LCD screen control automatic capsule filling machine features a stable control and transmission mechanism. It can automatically alert operators in case of error.

Inquiry
Website

Features:
  • The capsule filling machine features wrought grooved cams in its transmission mechanism instead of springs, so this capsule filling machine has longer service life.
  • Fully closed workstation turntable is equipped with an automatic lubrication device, which can reduce the frequency of machine maintenance.
  • It adopts a 10.4-inch colorful LCD display screen. The device can automatically alarm or stop operating in case of capsule shortage, powder shortage, vacuum malfunction, dust absorption fault and in the case of a loose machine door
  • SEW motor and Schneider electrical components. It has bearings and a high-precision intermittent indexing box, and the distance between its input shaft and output shaft increase from 83mm to 145mm, which increases the performance of the controlmechanism and transmission mechanism more stable.

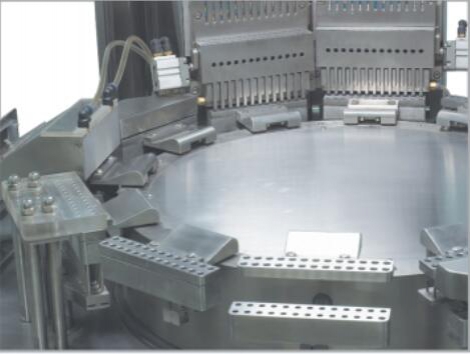

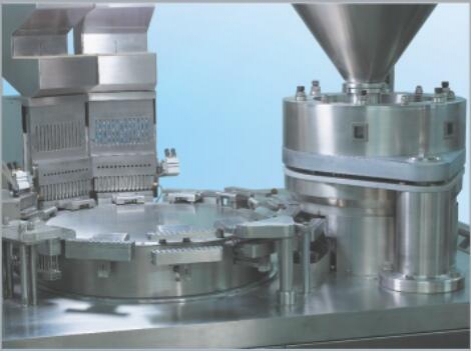

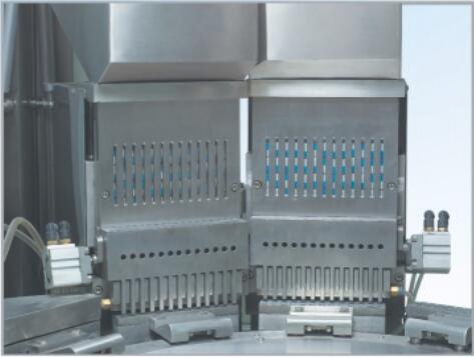

  • There are twelve steps in its capsule feeding mechanism, which can finish the filling process of medicine powders and pellets. During the indexing box's orbiting process, the angular velocity of the angle change from 36° to 30°, so the operation is more stable.
  • The capsulefilling machine and the motor are set separately. This makes the equipment safer and easier to clean. The operator can quickly finish cleaning and mold replacement during the cleaning process.
