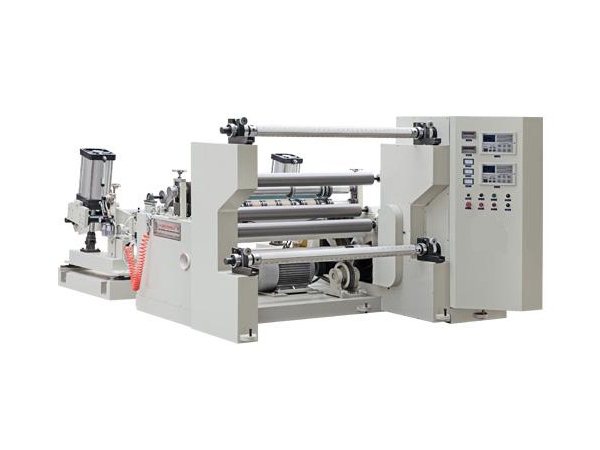

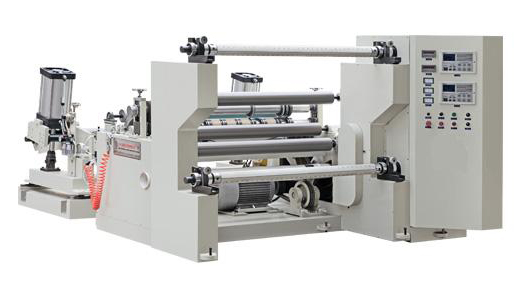

The paper slitting machine is used for adhesive paper, craft paper, and other types of paper.
Features
1. The unwinding device of the paper slitting machine uses an
air-cylinder full automatic lift type and a magnetic powder tension
controller on both the unwinding and rewinding device.
2. It offers stepless speed control of main motor, and auto
photoelectric edge corrector hydraulic pressure can be chosen, as well
other functions, such as meter presetting, auto stoppage, and so on.
| Width of Raw Material | 1100-1800mm |
| Max. Diameter of Raw Material | φ1300mm (Special customized) |
| Rewinding Diameter | φ800mm (Special customized) |
| Speed of Machine | 16-160m/min |
| Total Power | 11kw |
| Overall Dimensions (L×W×H) | 2700×1300×1500mm |
| Weight of Machine | 3000kg |
ShenⅦ is a professional paper slitting machine manufacturer, based in China. We offer an extensive line of products, including a slitting machine, paper cup machine, printing machine, cutting machine, and much more.
