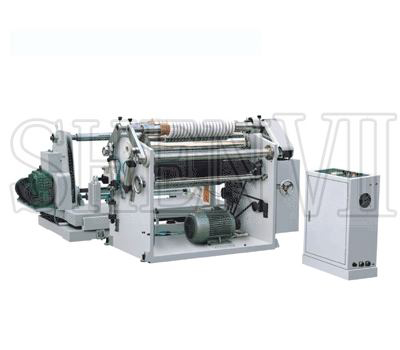

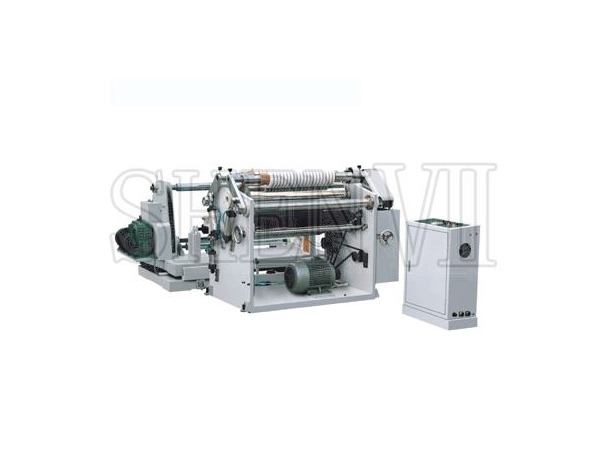

The slitting machine for plastic film and aluminum foil roll is used for slitting small scale materials, such as rolls of plastic glue film, aluminum foil, PVC, plastic film, and insulation material.
The roll slitting machine adopts variable frequency motor and achieves constant unwinding tension control. It also uses an auto photoelectric edge correction unit and the rewinding tension is controlled by the magnetic powder clutch. In addition, the roll slitting machine has meter preset and auto stop functions.
Technical Specifications| Max. Width of Raw Material | 1400mm |
| Max. Diameter of Raw Material | φ1000mm |
| Internal Diameter of Rolling Paper Core | φ25-φ76mm |
| Diameter of Rewinding | φ420mm |
| Min. Width of Split Cut | 5MM |
| Electrical Machinery Power | 5.5/7.5kw |
| Overall Dimensions | 2500×2500×1100mm |
| Weight of Machine | 3000kg |
Features
1. The chassis under the roll slitting machine and side of baffle use channel steel weld construction.
2. The rewinding tension uses a magnetic powder clutch 10Kg 2pcs. (Taiwan produce)
3. The unwinding tension uses magnetic powder Brake 10Kg 1pc. (Taiwan produce)
4. The roll slitting machine unwinding is equipped with auto tension control. (Constant tension)
5. There are two expandable shafts for: one mechanical shaft for unwinding, as well as a spare expandable shaft.
6. The rolling slitting machine offers automatic rectifying deviation.
7. It has auto meter counting and meter presetting.
8. The splitting device is equipped with 10 sets of circular knives.
9. All the gears and chains on the roll slitting machine use hardness thermal refining.
10. The spare parts include one set of spanner wrenches. An English manual is also provided.
As a specialized roll slitting machine manufacturer and supplier based in China, we also provide paper slitting machine, PE film blowing machine, non woven bag making machine, shopping bag making machine, and much more.
