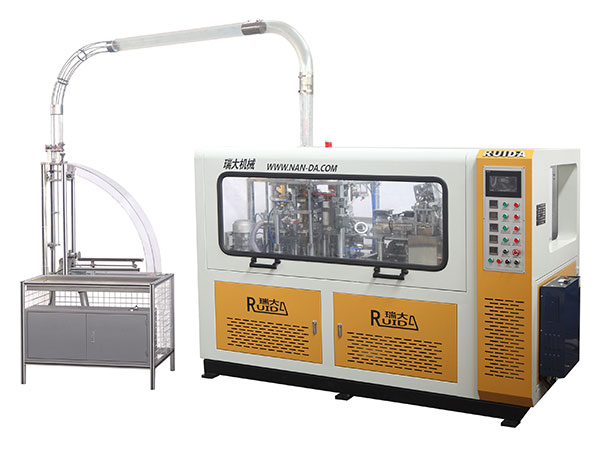

The RD-12/22-100A high speed paper cup forming machine features two turn plates, an open intermittent indexing cam mechanism, gear transmission and a longitudinal axis structure. The entire paper cup forming machine features an automatic lubrication system, allowing all mechanical parts to run smoothly.
The RD-12/22-100A high speed paper cup forming machine features two turn plates, an open intermittent indexing cam mechanism, gear transmission and a longitudinal axis structure. The entire paper cup forming machine features an automatic lubrication system, allowing all mechanical parts to run smoothly.
The characteristic of the machine
1.High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures. The cam is made in Korea.
2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.
3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
4.The new machine with higher working speed (100pcs/min) , so there is extra Switzerland Leister hot air device for the side sealing, so side sealing is done by both Hot air and Ultrasonic.
5. Cup side sealing by ultrasonic.
6. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).
7. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in JAPAN.
8. All bearing of the machine is made in Japan (NSK brand), and the vacuum generator is made in Japan (SMC brand).
9. More efficient and higher performance.
10. It is easy to make cups with different sizes by changing moulds.
11. With automatic cup delivery system and counter.
12. The machine can be equipped with an optional automatic packing machine, which can pack up to 400 paper cups per minute.
