Main Features

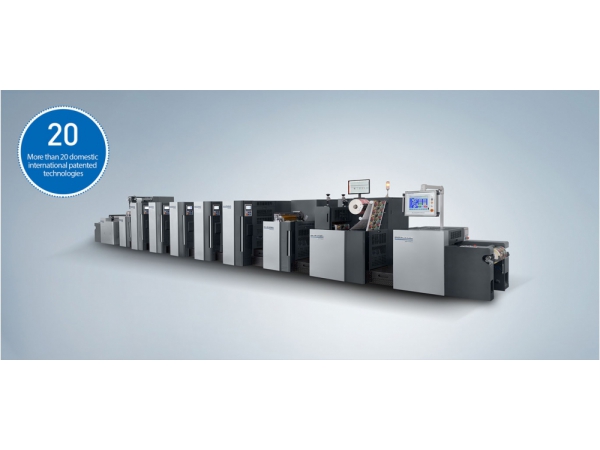

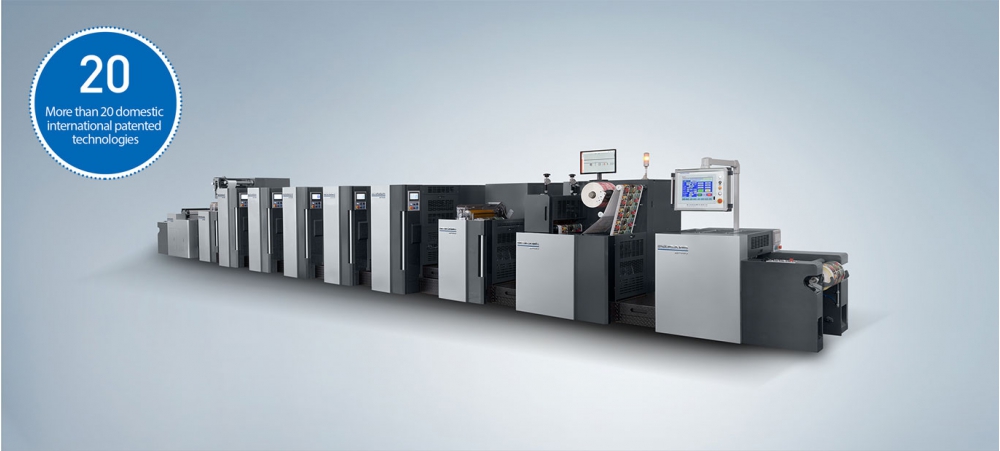

1. High-speed rotary offset printing machine(with sleeve technology)owns more than 20 national and international patents.

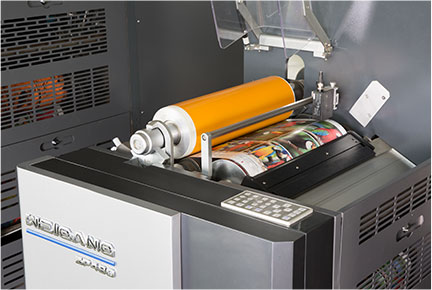

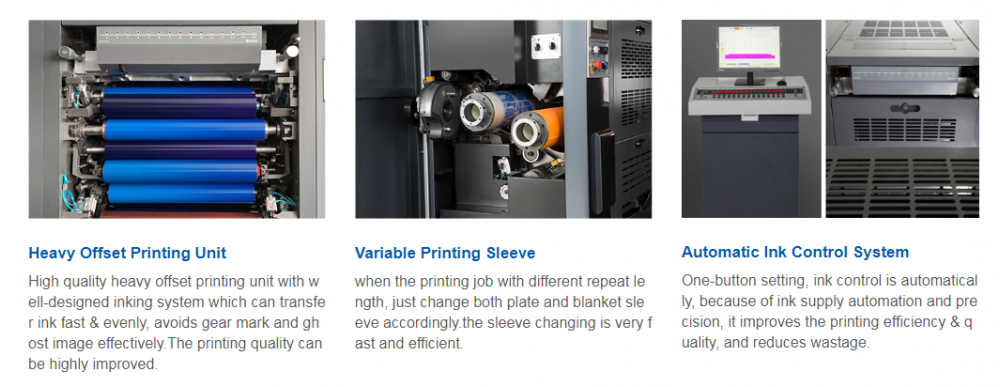

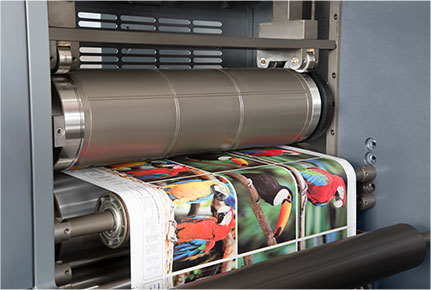

2. Continuous offset printing mode and variety printing sleeve technology makes fast printing speed and high printing quality.

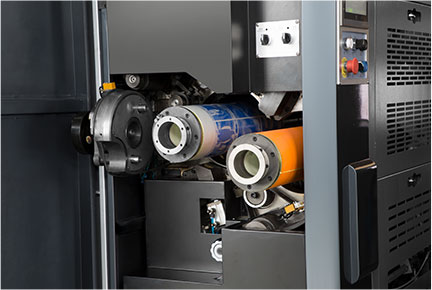

3. The plate roller and the blanket roller adopt the air expansion sleeve type achieves short plate changing time, easy operation, and high efficiency.

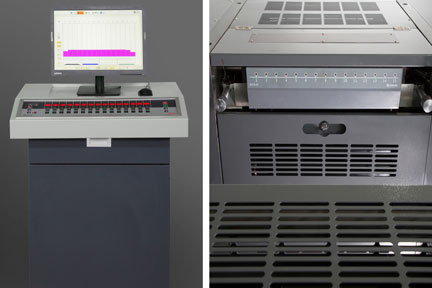

4. The inking system and water system are automatically adjusted according to variable printing sleeve.

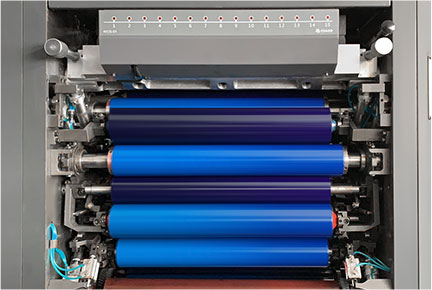

Super inking system makes the inking move evenly, printing pressure more stable and easy adjusting.

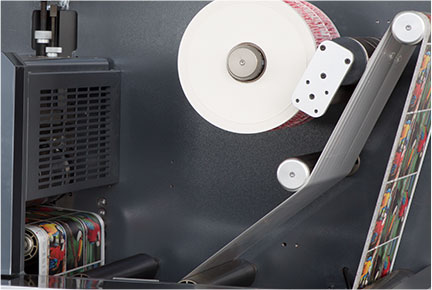

5. Unwinder has automatic tension control and is equipped with web guider.
6. Printing tension controls automatically, the web passing smoothly even at high speed, stable printing tension ensures high-speed and high-precision printing.
7. This machine has the function of automatic pre-registration, automatic registration by photocell after set-up and second pass with registration.
8. Inline inspecting system can be installed according to user’s requirement.

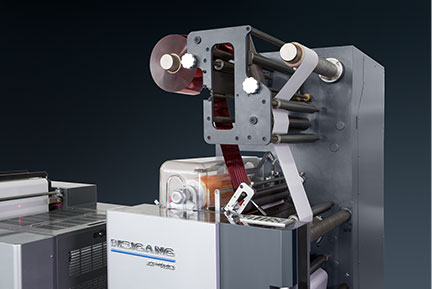

9. Based on offset printing units, machine can combine with other functions such as flexo, gravure, cold stamping, hot stamping, die cutting, embossing and so on.

Main Technical Parameters

Model	ZP-480	ZP-680
Max. printing speed	180m/min	180m/min
Printing color	4-12色(Colors)	4-12色(Colors)
Max. printing width	460mm	660mm
Max. web width	480mm	680mm
Printing repeat length	380-690mm(15-27.5inch)	430-690mm(17-27.5inch）
Max. unwinding dia.	1000mm	1000mm
Max. rewinding dia.	1000mm	1000mm

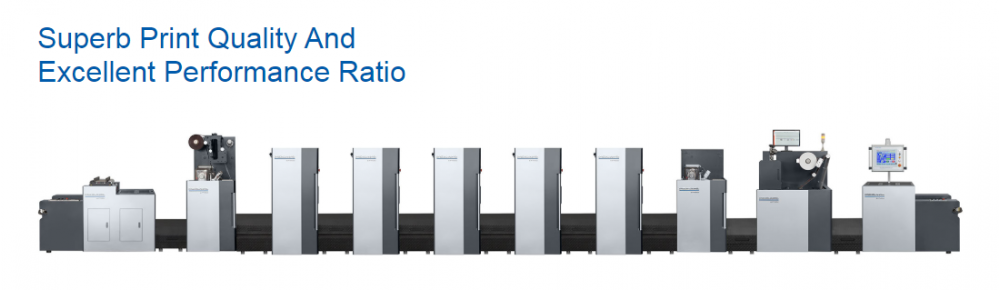

Dimensions(L×W×H)	15.2m × 3.7m × 2.1m Unwinder+Flexo unit with cold stamping+5 Offset units+Flexo(varnishing)+Die-cutting unit+Rewinder
