The JDZ-100P cartoning machine is suitable for packing bottles( round shape), vial, etc. the cartoning machine consists bottle turntable , leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

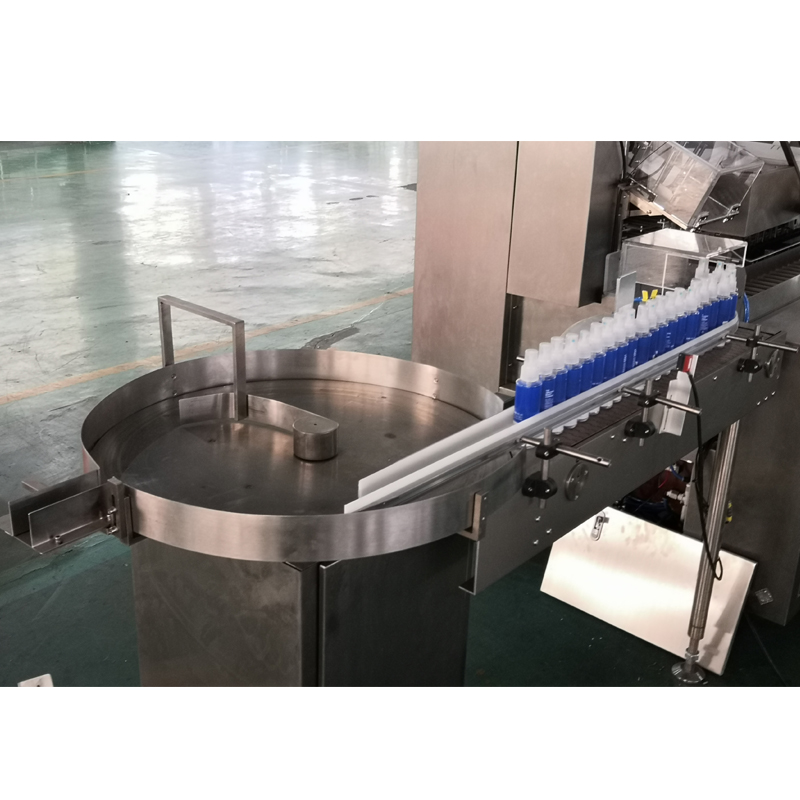

With bottle turntable
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance, operation is easy.
Options:ink jet printer,glue machine,bar code reader.
Main technical parameters | JDZ-100P | |
Encasing speed | 30-100cartons/min | |
Carton | Quality requirement | 250-350g/m2 |
| Dimension range(L*W*H) | (65-180) *(35-85) *(15-50)mm |
Leaflet | Quality requirement | 60-70g/ m2 |
| Unfolded leaflet specification | (80-250) *(90-170)mm |
| Fold range | 1-4 fold |
Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min |
Power supply | 220/380V 50/60HZ | |
Motor power | 0.75Kw | |

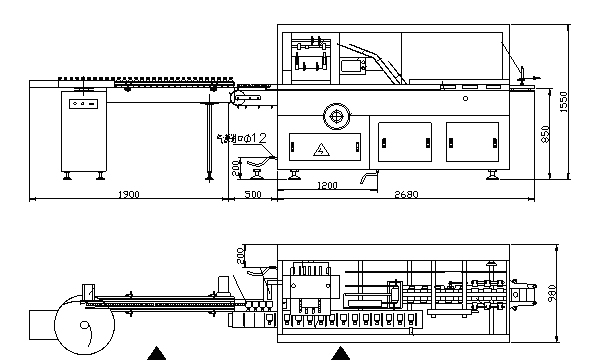

Machine dimension(L*W*H) | 4300*1100*1550mm | |
Machine weight | 1600kg | |
