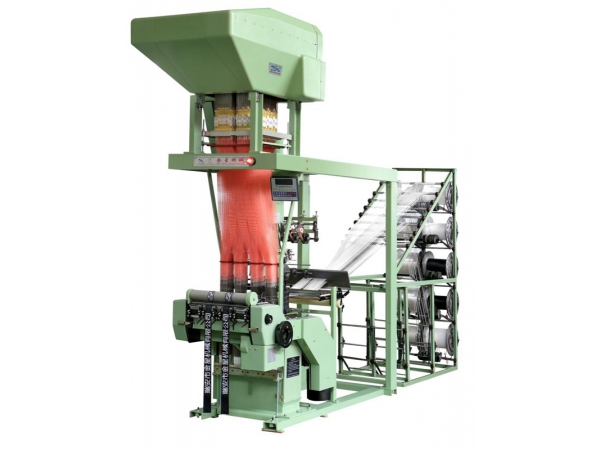

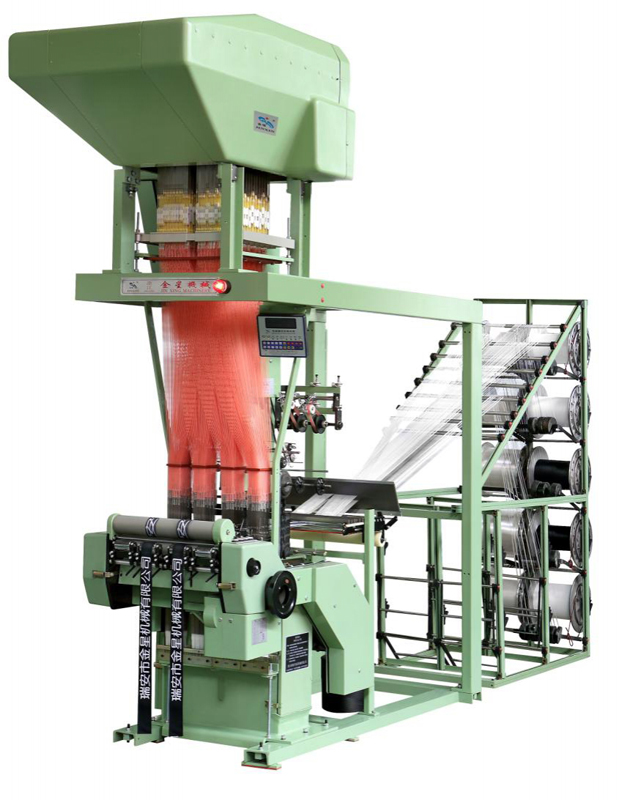

The JXNFM53-4/66-768 jacquard loom uses an electromagnetic needle selection, with the magnetic selection unit driven using a solenoid valve to complete the needle selection process. This is faster and more efficient, and significantly improves the finished textile quality. The production speed exceeds 1200r/minute, which significantly increases the production rate.

The traditional plastic jacquard modules have to be replaced within one or two years, though the service life of the magnetic selection unit reaches 10 to 20 years, thus reducing maintenance costs. The combination of a magnetic selection unit and solenoid valve significantly reduces the usage frequency of mechanical parts, friction among them and the vibration of harness wire and warp yarn, all of which enhance the jacquard machine’s durability. The magnetic selection unit’s yarn tension is larger and more stable, ensuring the woven cloth is more delicate and smoother to satisfy production requirements for heavier woven types with a higher density.

Optional functions
HD: elastic fabrics double weft system
JNF-T: double latch needle weaving system
Optional models

According to the tape lines and width of woven types, the following three standard jacquard looms can be chosen to suit your needs. If they do not meet your needs, please do not hesitate to contact us about customization services.

Model	8/27	6/42	4/66
Tape Lines	8	6	4
Reed Width	27mm	42mm	66mm
Max. Weaving Width	25mm	40mm	62mm
No. of Hooks	128-320	192-384	192-768
No. of Heald Frame	12	12	12
Repeat Length	1:8/16-32	1:8/16-32	1:8/16-32
Machine Width	980mm	980mm	980mm
Max. Machine Height	2600mm	2600mm	2600mm
Min. Machine Length	3000mm	3000mm	3000mm
Net Weight	890KG	890KG	890KG
