Multicolor Flexo Printing Machine
With a maximum web width of 320mm, the RY320 series flexographic printing press doesn't take up a lot of floor space.The standard configuration flexo printing machine can print at both sides at the same time. It is also equipped with one rotary die cutting station, thus it can finish unwinding, printing, lamination and die cutting in one process. Each printing unit has an IR drider, but the UV drier is also optional.
This machine can print 1-8 colors. The machine prints narrow labels on paper, film, and self-adhesive tags for use in supermarkets, drug stores and department stores.

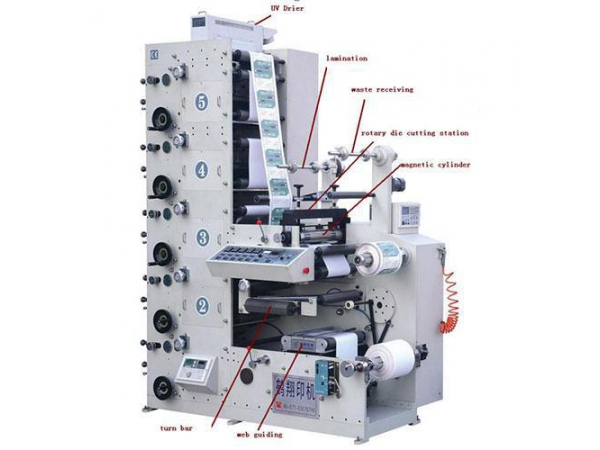

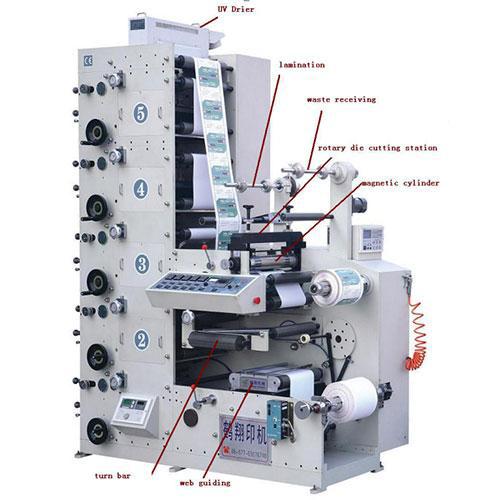

Station for 5-Color Flexo Printing Machine1. One mounting device.
2. One anilox roller for each group (200LPI-1000LPI)
3. Three sets of printing rollers (3*5=15)
4. Printing both sides at the same time (with turn bar)
5. One lamination station
6. One unwinding tension controller (Mitsubishi Japan)
7. One rewinding tension controller
8. One rotary die cutting station
9. Each station with IR drier
