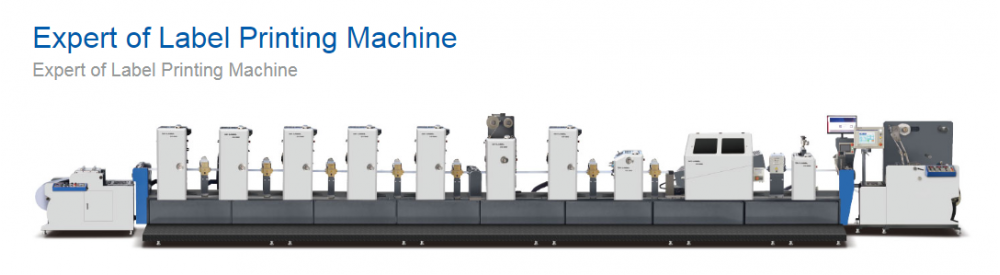

ZX-320 machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change. The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It’s the best choice for printing highest quality labels with lowest production cost.
Main Technical Parameters
Model ZX-320 ZX-450 Printing speed 50-180 rpm/min 50-150 rpm/min Printing color 4-10colors 4-10colors Max. printing length 350mm 380mm Max. web width 320mm 470mm Max. printing width 300mm 450mm Max. unwinding diameter 700mm 700mm Max. rewinding diameter 600mm 600mm Power supply 3 phase 380V 3 phase 380V Total power 33.6kw(without UV power) 40kw(without UV power) Dimensions(L×W×H) 10550×1600×1800mm (6colors) 11150×1700×1800mm (6colors) Main machine weight about 9.5t about 11.5t
