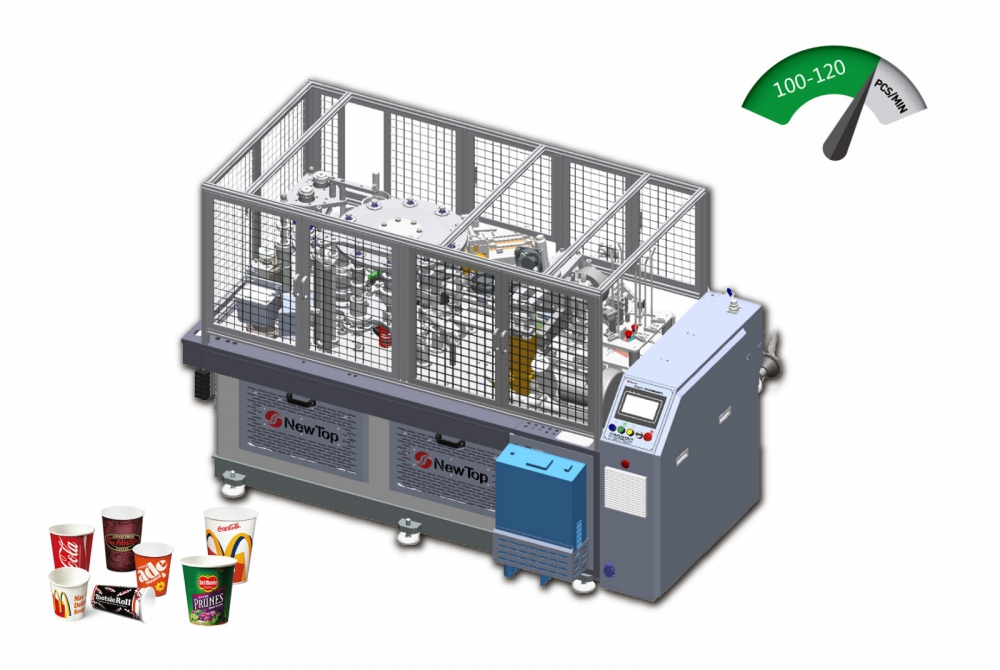

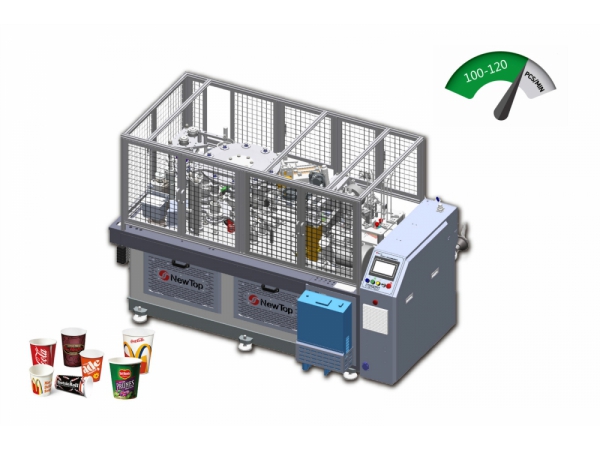

The DEBAO-100S type intelligent paper cup machine is using desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance.

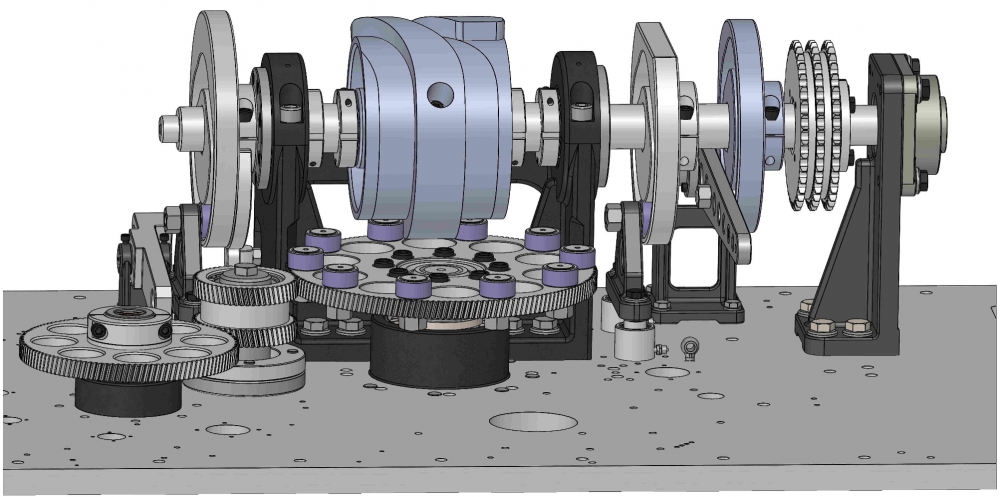

The machine adopts automatic spray lubrication, longitudinal axis transmission structure, barrel type cylindrical indexing mechanism and the gear drive, ensuring the stability and quality of the whole machine. For electrical parts, PLC, photoelectric tracking and servo feeding are used to control the running. This type machine’s capacity is up to 100-120/min, suitable for the production of 1.5-12 ounces of cold/hot cups.
Production Efficiency
1.Production output up to 53,000 cups per shift (8 hours), up to 4 million cups per month (3 shifts); 2.Percentage of pass is higher than 99% under normal production; 3.One operator can handle several machines at the same time.
Machine parameter
DEBAO-100S DEBAO-118D Weight Weight 2500 kg 2700kg Machine
encasement dimensions Machine encasement
dimensions 2600 x 1600
x 1900mm（collection table 1230 x 610 x 1900mm） 2600 x 1600 x
2100mm（collection table 1230 x 610 x 1900mm） Connecting
power Connecting power three-phase
380V，20KW three-phase 380V，20KW Compressed
air Compressed air 0.6-0.8MPa，0.4m³/min 0.6-0.8MPa，0.4m³/min Production
capacity Production capacity 100-120
pcs/min 110-140 pcs/min Paper types Paper types Single/double
PE Single/double PE /PLA /PLA Paper
grammage Paper grammage 150-300g/㎡ 150-300g/㎡ Product
range Product range (D1)ф50-85mm
(H)40-110mm (D1)ф50-85mm (H)40-110mm (D2)ф35-65mm (h)5-12mm (D2)ф35-65mm
(h)5-12mm Visual
inspection system Visual inspection system ○ ○ bottom
heating bottom heating assembly● assembly● Long term
magazine Long term magazine ○ ○ control
panel control panel 7 inches 7 inches Note: optional ○ standard ●
Mechanical Quality Guarantee 1.Mechanical parts are guaranteed for 3 years or production reaches 200 million cups, electrical parts are guaranteed for 1 year. 2.All parts on forming table are easy to access for maintenance. 3.All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.
