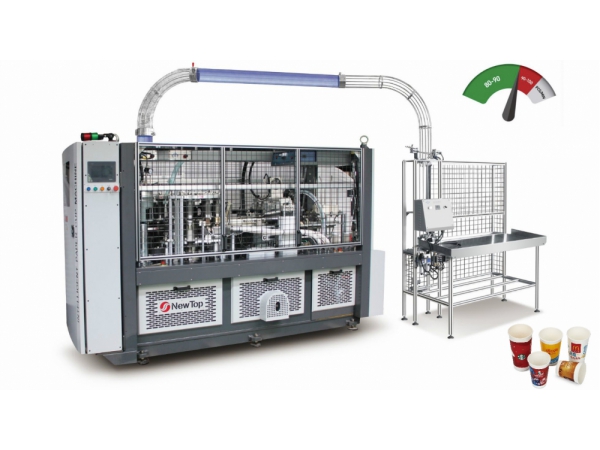

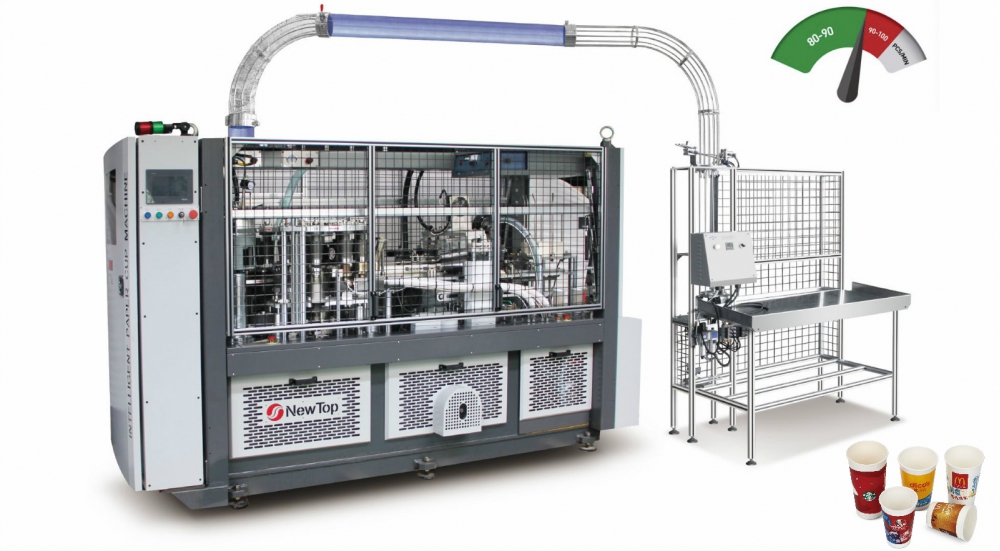

DEBAO – 118C type intelligent paper cup machine adopts desktop layout, molding and transmission part of the isolation.
To drive a set inside the frame case from behind the scenes, automatic spray lubrication, with vertical shaft transmission structure, bucket cylinder dividing mechanism and gear transmission way; Counter set various forming dies, facilitate cleaning maintenance. Electrical PLC control, photoelectric tracking monitoring, servo feed. Production capacity can reach 80-90 / min.
Production Efficiency
3.One operator can handle several machines at the same time.
Machine parameter
DEBAO-138S DEBAO-118C Weight Weight 3400 kg 3500kg Machine
encasement dimensions Machine encasement
dimensions Machine: Machine: 3100 x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） 3100
x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） with visual system: with
visual system: 3100 x 1600 x 2350mm（collection table1230 x 610 x 1900mm） 3100
x 1600 x 2350mm（collection table1230 x 610 x 1900mm） Connecting
power Connecting power three-phase
380V，26KW three-phase 380V，24KW Compressed
air Compressed air 0.6-0.8MPa，0.5m³/min 0.6-0.8MPa，0.5m³/min Production
capacity Production capacity 110-160
pcs/min 80-100 pcs/min Paper types Paper types single
PE/double PE/PLA single PE/double PE/PLA Paper
grammage Paper grammage 210-330g/㎡ 250-330g/㎡ Product
range Product range (D1)ф60-95mm
(H)50-135mm (D1)ф70-95mm
(H)130-180mm (D2)ф40-75mm (h)5-12mm (D2)ф50-75mm
(h)5-12mm Visual
inspection system Visual inspection system ○ ○ bottom
heating bottom heating assembly● assembly● Long term
magazine Long term magazine ○ ○ control
panel control panel 10.2 inches 7 inches

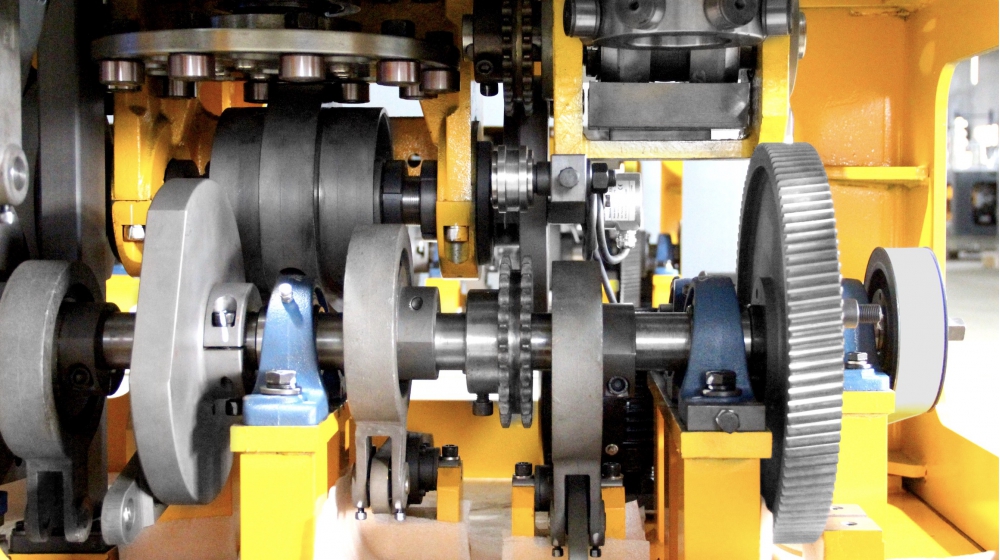

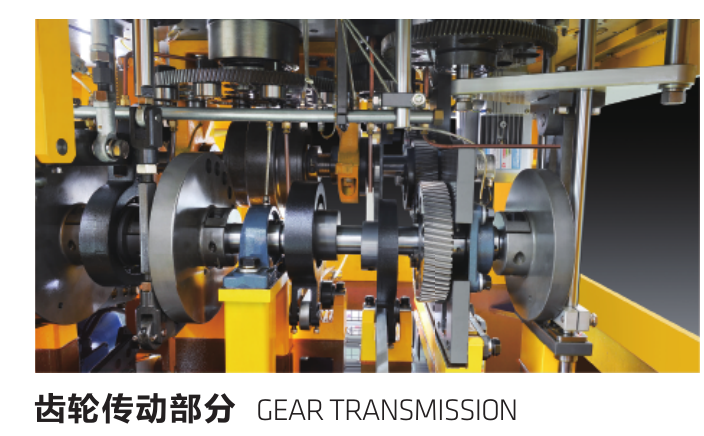

Vertical shaft gear drive, cylindrical barrel indexing cam, optimize the internal layout, to ensure the accuracy of the machine transmission, high synchronization performance, so as to achieve coordination between the travel to avoid collision damage parts, make up the chain drive jitter and transmission is not smooth Congenitally deficient.
The overall case structure: The machine enclosure structure design, pouring oil spray lubrication, reduce wear and tear, effective heat dissipation, the machine to run fast. The machine warranty for three years.
