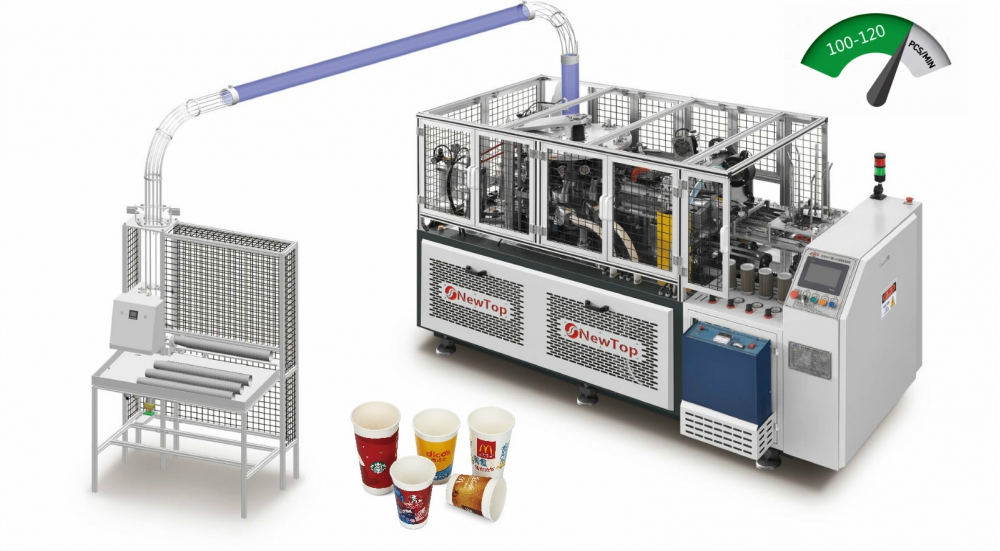

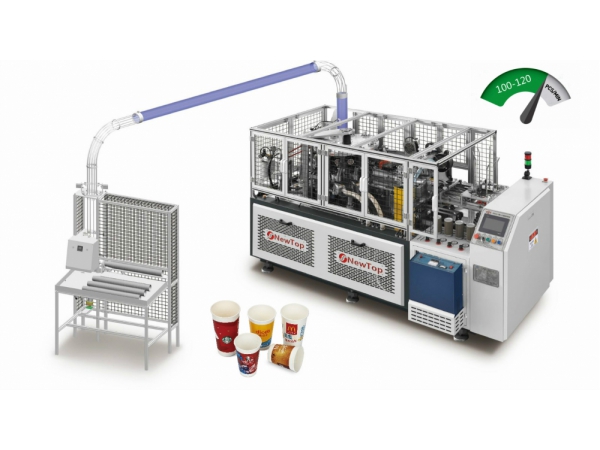

The DEBAO-118S+SY type intelligent paper cup machine is using desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance.
Machine parameter
| DEBAO-138S | DEBAO-118S+ZY | DEBAO-118S+SY |
| Weight | Weight | Weight |
| 3400 kg | 3300kg | 3100 kg |
| Machine encasement dimensions | Machine encasement dimensions | Machine encasement dimensions |
| Machine: | Machine: | Machine: |
| 3100 x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） | 3100 x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） | 3100 x 1600 x 2100mm （collection table 1230 x 610 x 1900mm） |
| with visual system: | with visual system: | with visual system: |
| 3100 x 1600 x 2350mm（collection table1230 x 610 x 1900mm） | 3100 x 1600 x 2350mm（collection table1230 x 610 x 1900mm） | 3100 x 1600 x 2350mm（collection table1230 x 610 x 1900mm） |
| Connecting power | Connecting power | Connecting power |
| three-phase 380V，16KW | three-phase 380V，12KW | three-phase 380V，16KW |
| Compressed air | Compressed air | Compressed air |
| 0.6-0.8MPa，0.5m³/min | 0.6-0.8MPa，0.5m³/min | 0.6-0.8MPa，0.5m³/min |
| Production capacity | Production capacity | Production capacity |
| 110-160 pcs/min | 110-150 pcs/min | 110-150 pcs/min |
| Paper types | Paper types | Paper types |
| single PE/double PE/PLA | single PE/double PE/PLA | single PE/double PE/PLA |
| Paper grammage | Paper grammage | Paper grammage |
| 210-330g/㎡ | 210-330g/㎡ | 210-330g/㎡ |
| Product range | Product range | Product range |
| (D1)ф60-95mm (H)50-135mm | (D1)ф60-95mm (H)50-135mm | (D1)ф60-95mm (H)50-135mm |
| (D2)ф40-75mm (h)5-12mm | (D2)ф40-75mm (h)5-12mm | (D2)ф40-75mm (h)5-12mm |
| Visual inspection system | Visual inspection system | Visual inspection system |
| ○ | ○ | ○ |
| bottom heating | bottom heating | bottom heating |
| assembly● | assembly● | assembly● |
| Long term magazine | Long term magazine | Long term magazine |
| ○ | ○ | ○ |
| control panel | control panel | control panel |
| 10.2 inches | 7 inches | 7 inches |
| note: optional○ standard● |
