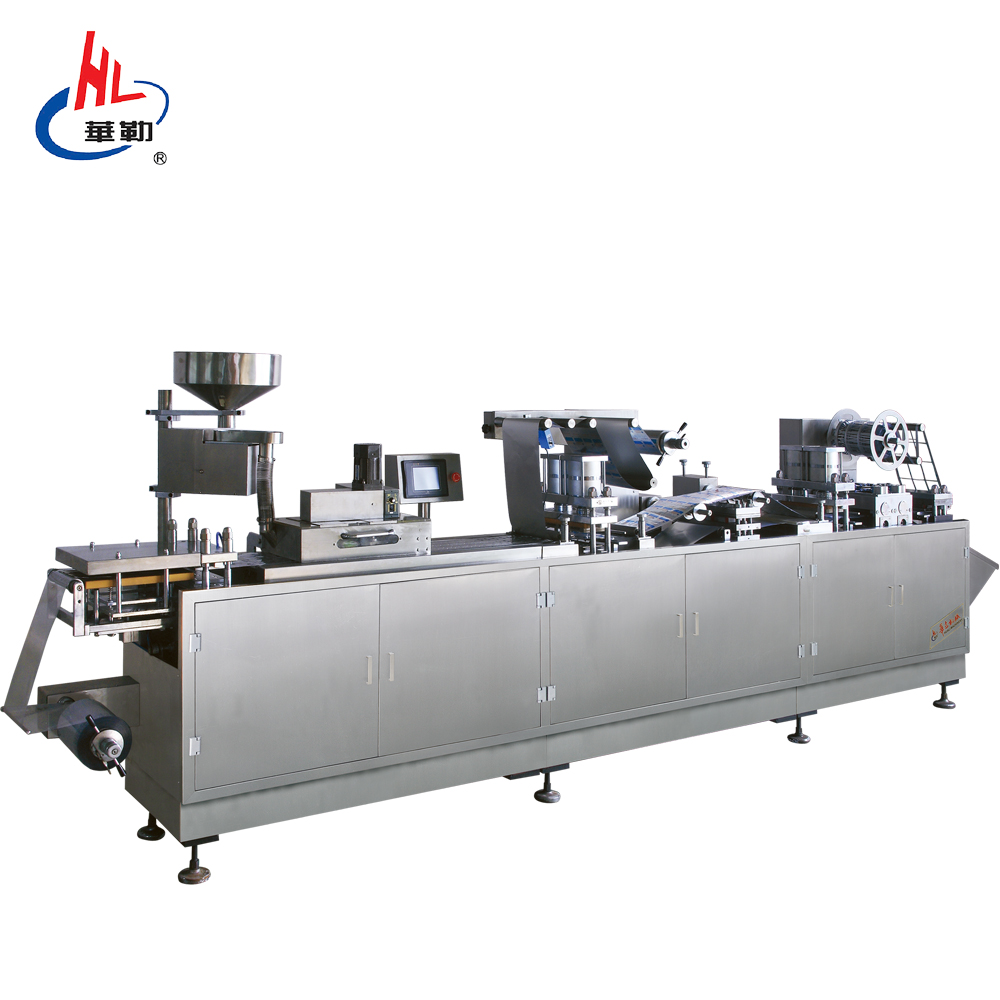

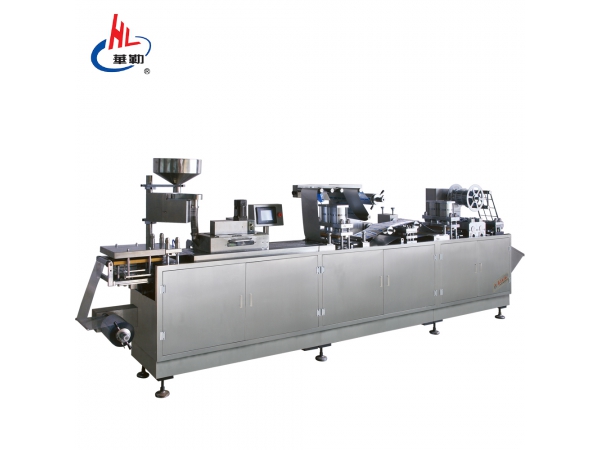

DPP-250F Blister packing machine

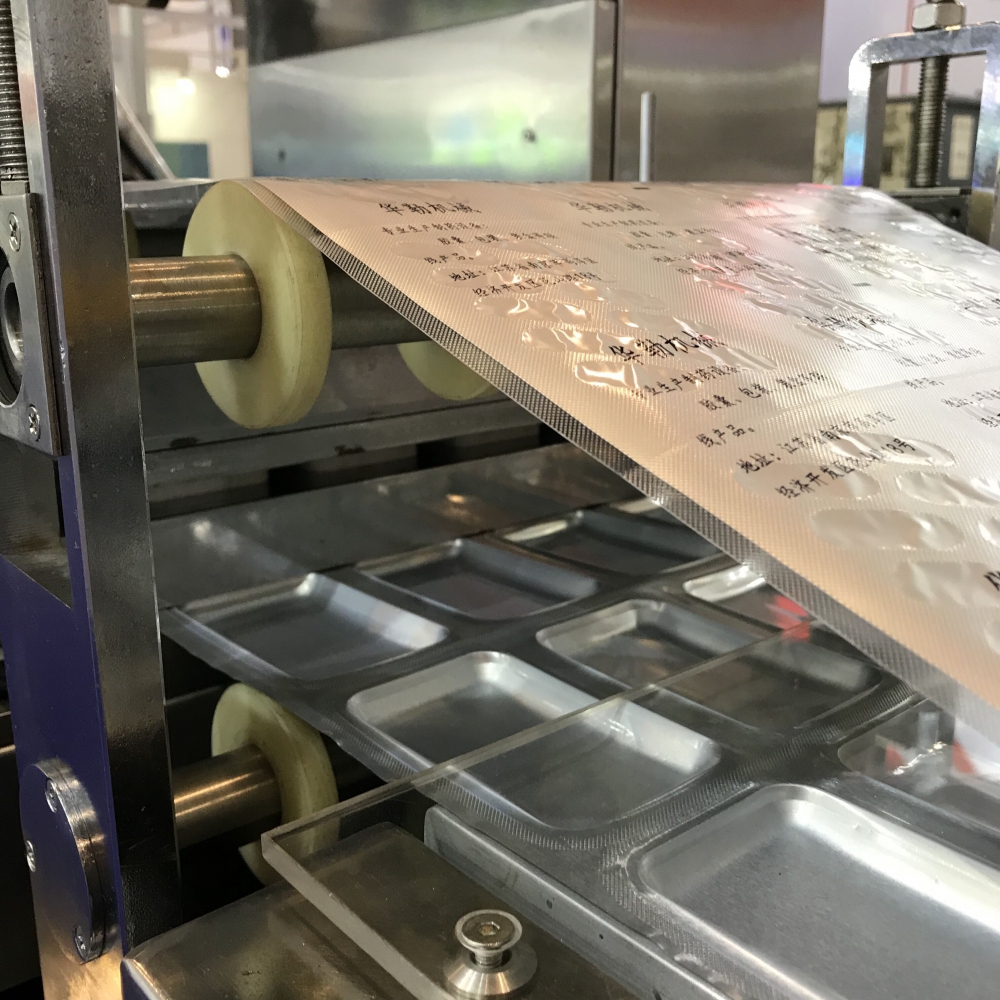

The machine suitable for blister packing with Alu-Plastic, Alu-Alu and Alu- Plastic-Alu.

FEATURES

Pulling length can be input by touch screen while air frothing forming and cold forming are controlled by encoder.
It comes with universal feeder for packaging object feeding; the feeder also can be designed as client’s requirement to irregular shape object.
The speed is controlled by inverter which operators can input by touch screen.
The machine comes with Automatic Detection system for object absence in blisters by mechanical detecting system or optical sensor or camera system is required by clients.
The pulling is controlled by servo motor for ensuring accurate pulling length and saving materials.

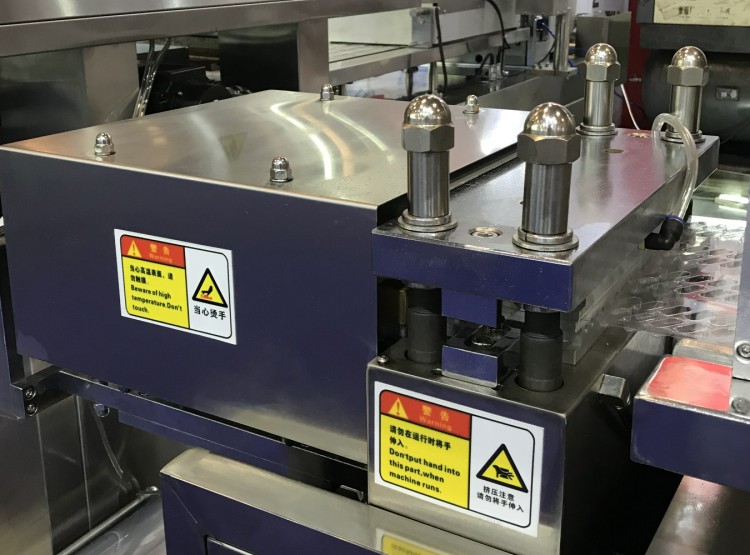

The heating molds separate automatically when the machine stops, which contributes to protect the packaging material from the heated molds.

Model	ALU-PVC-ALU	ALU ALU			ALU-PVC
Machine Body	Stainless Steel 304 (		medicinal	contact can be selected SS3016)

Blanking frequency(times/min) (Standard size 57*80)	12-25	15-30			20-45
Adjustable pulling length	30-120mm
Max Forming area and depth(mm)	25012015	25012013			25012015
Power supply(Three phase) (According to the customer need to select the voltage)	380V/220V 50HZ 11.5KW	380V/220V 50HZ 4.5KW			380V/220V 50HZ 8KW
Packaging Material (mm) (I.D.Φ75mm)	Tropical Foil 260(0.1-0.12)(Φ400) PVC 260(0.15-0.4)(Φ400)	Alu Alu Foil 260(0.14-0.18)(Φ400)			PVC 260(0.15-0.4)(Φ400)
	Blister Foil: 260(0.02-0.15)(Φ250)
Air compressor	0.6-0.8Mpa ≥0.5m3/min (self-prepared)
Mould cooling	(Recycle water or circulating water consumption) 60-100 L/h
Overall Dimension(LWH) (including foundation)	44508001600
Dimension of Each Part	14008001600(front)
	16508001450(middle)
	14008001450(back)
Weight	About 1700kg
