Main Functions And Features:
1.Combined with automatic filling machine according to different products;
2.Main process: top and bottom film forming, automatic products feeding, automatic oil feeding, vacuuming, sealing, inkjet coding, cutting and discharging;
3.Easy to operate: PLC controller, HMI system for easy operation;
4.High efficiency: more than 6000bags/hour by two operators (Ref. 100*70mm bag);
5.Easy to clean: 304 Stainless steel, and the filling machine can be moved separately for wash-down;
Main Technical Parameter:

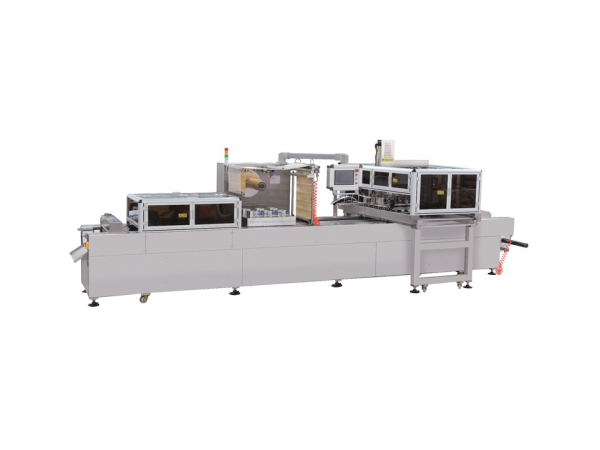

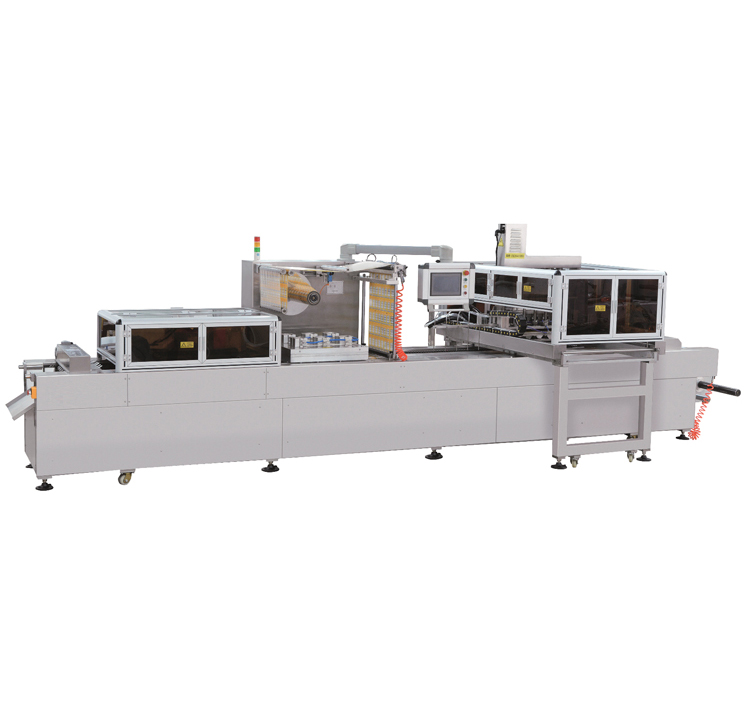

Full-automatic Thermoforming and Filling Packaging Line | |
Equipment Model | RC-520J |
Width of Top Film | 498mm |
Width of Bottom Film | 524mm |
Vacuum | ≤200Pa |
Compressed Air | ≥0.6Mpa |
Air Consumption | ≥0.7m3/min |
Air Filling Pressure | ≥0.2Mpa |
Filling Speed | 3-4p/min |
Filling Accuracy | ≤±1g (according to the products) |
Filling Weight | 10g-50g |
Filler Numbers | 4-5 filler number |
Air Filling Connector | Ø16PU tube |
Cooling Water | ≥0.15Mpa |
Power Supply | 380V/50HZ |
Total Power | 14~20KW |
Machine Dimension | 6750*1950*2050mm |
Machine Weight | 2700kg |
