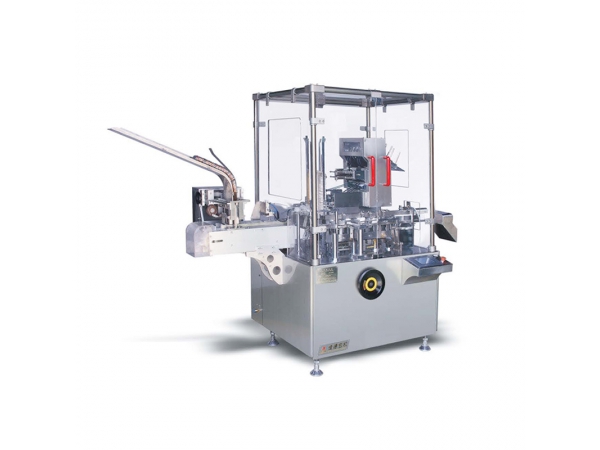

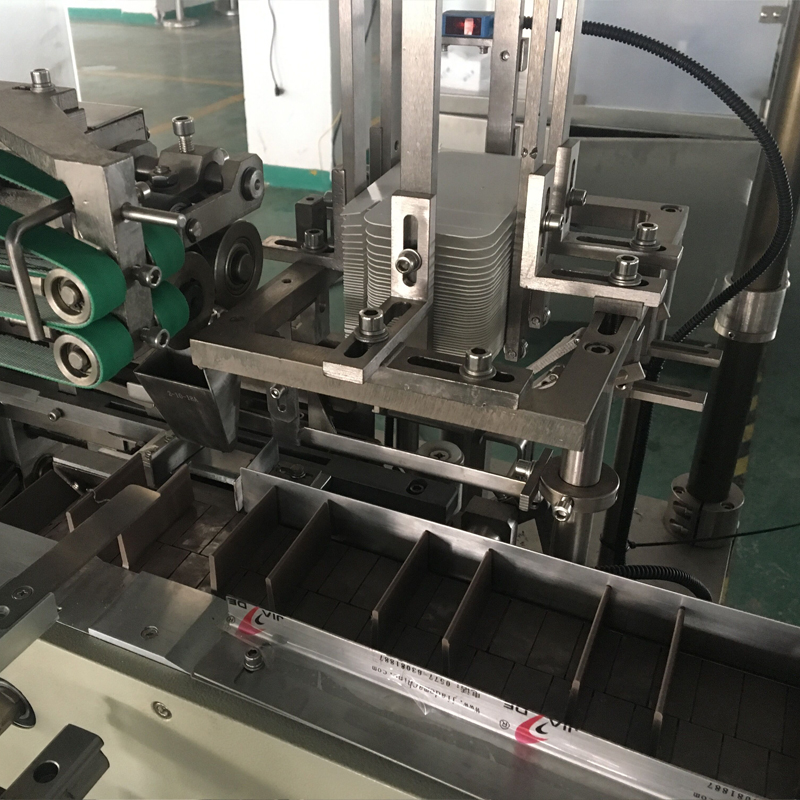

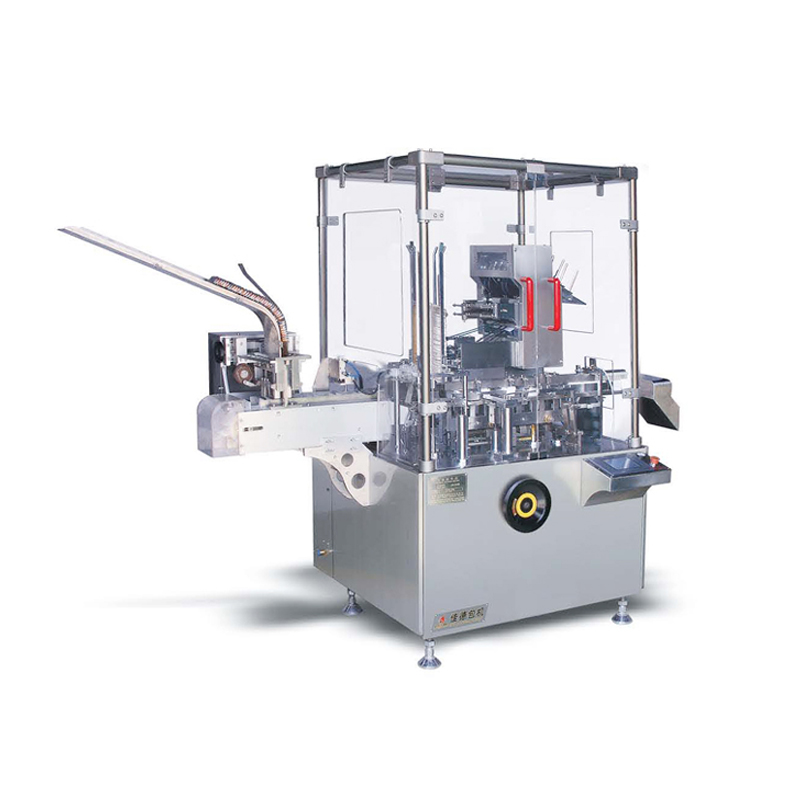

The JDZ-120 Vertical cartoning machine is a type of packaging machine that specially for packing the blister or similar product. It consists of direction folding (1-4folds) and automatic blister feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.
Conforms to cGMP standards CE Marked

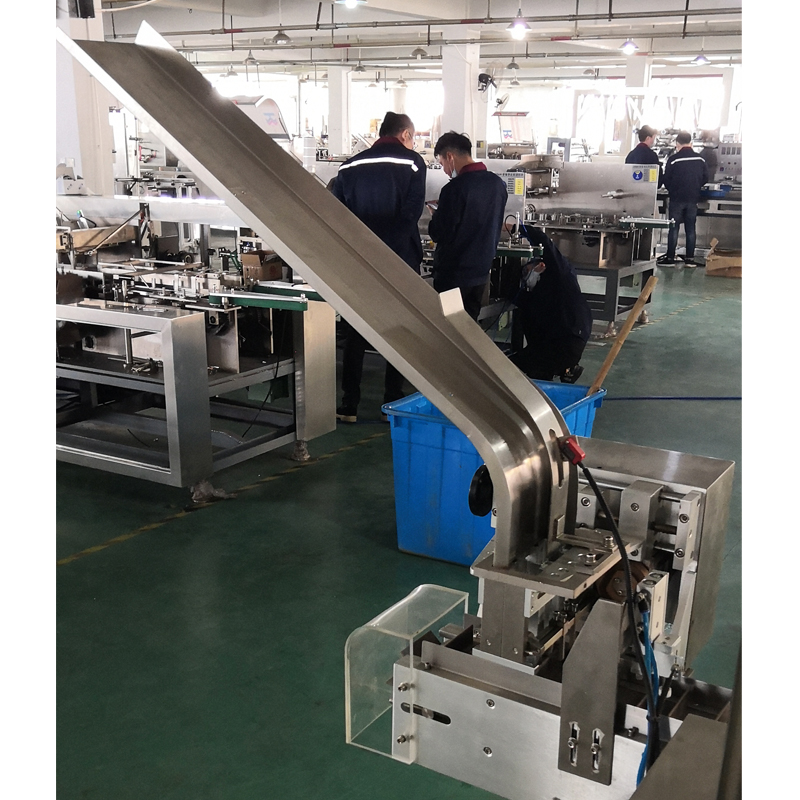

With the feeding device for blister and
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
When machine is overload, it will automatically stopped.
It will automatically reject lacking of package product and leaflet.
It will automatically display trouble, Alarm and count finished products.
Fully adjustable throughout size range with digital position indicators
Stable performance, operation is easy.
Main technical parameters | JDZ-120 | |
Encasing speed | 30-120cartons/min | |
Carton | Quality requirement | 250-350g/m2 |
| Dimension range(L*W*H) | (65-125) *(30-85) *(12-50)mm |
Leaflet | Quality requirement | 60-70g/ m2 |
| Unfolded leaflet specification | (80-250) *(90-170)mm |
| Fold range | 1-4 fold |
Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min |
Power supply | 220V 50HZ | |
Motor power | 0.75Kw | |

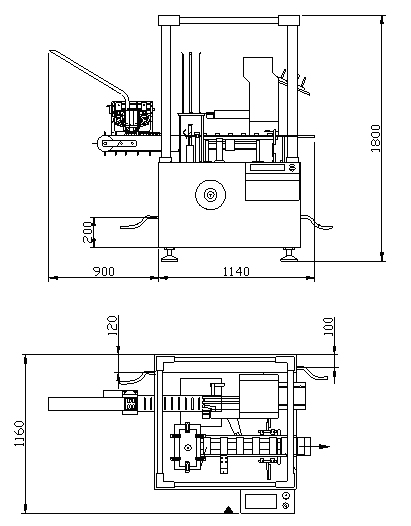

Machine dimension(L*W*H) | 2150*1140*1800mm | |
Machine weight | 1100kg | |
