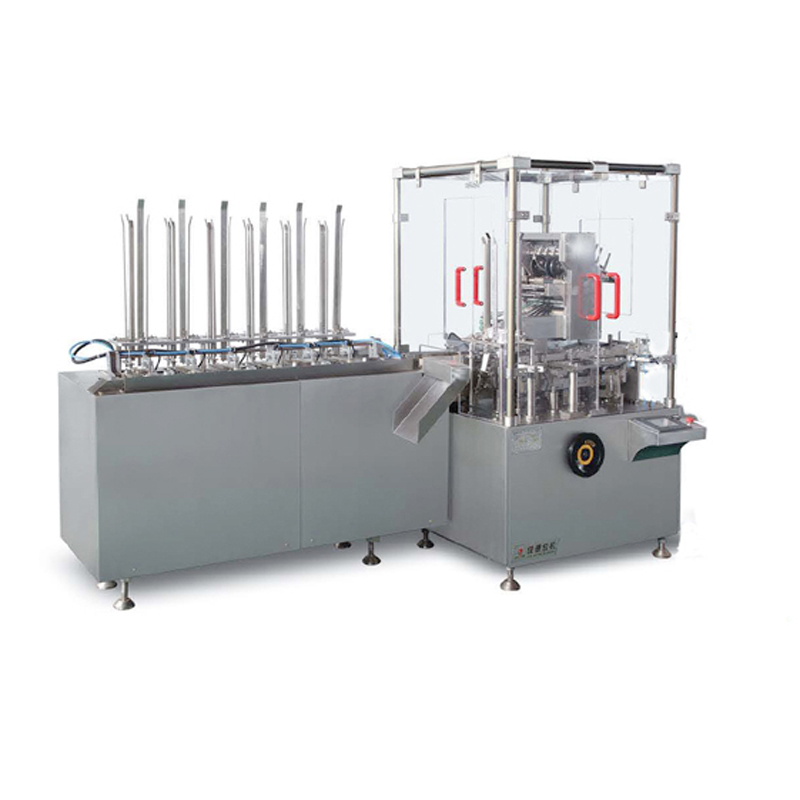

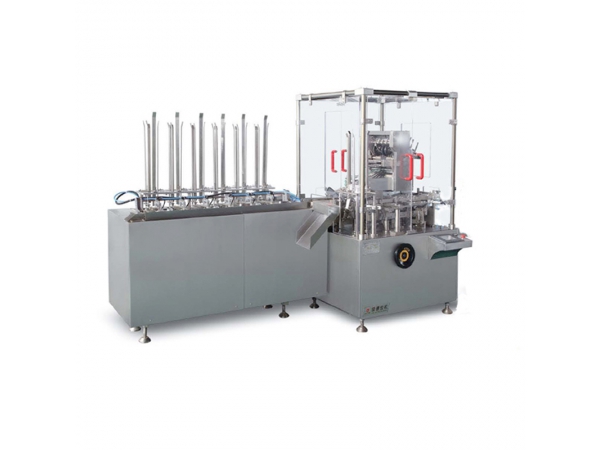

The JDZ-120D Vertical cartoning machine is a type of packaging machine that specially for packing the several sachets with automatic sachet feeding device. It consists of direction folding (1-4folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.
Conforms to cGMP standards CE Marked
With the feeding device for sachet. How many feeding head depends on how many sachet will be pack in one carton.
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
When machine is overload, it will automatically stopped.
It will automatically reject lacking of package product and leaflet.
It will automatically display trouble, Alarm and count finished products.
Fully adjustable throughout size range with digital position indicators
Stable performance, operation is easy.
Technical Parameters
Model JDZ-120D Encasing speed 30-100 cartons/min Charging quantity of pouch 1-12(Base on sachet or pouch

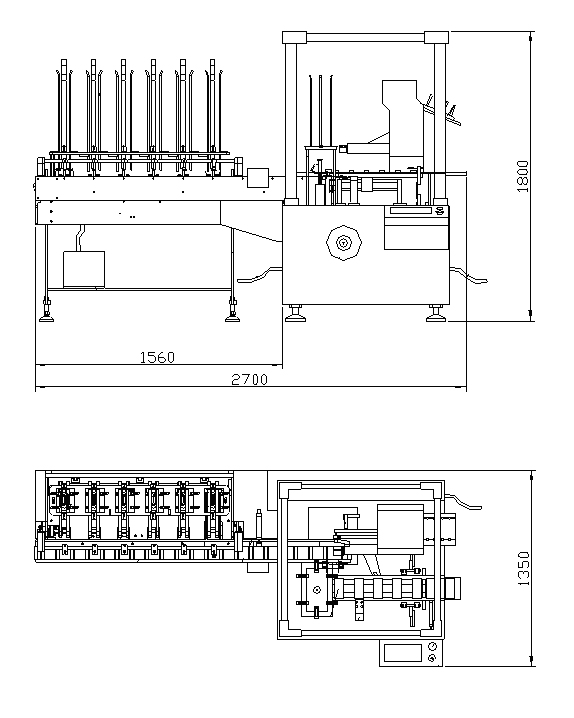

size) Carton Quality requirement 250-350g/m2 Leaflet Dimension range(L*W*H) (65-150) *(30-85) *(12-45)mm Quality requirement 60-70g/ m2 Unfolded leaflet specification (80-250) *(90-170)mm Fold range 1-4 fold Compressed air Working pressure ≥0.6mpa Air consumption 200-240L/min Power supply 220V 50HZ Motor power 1.10Kw Machine dimension(L*W*H) 2880*1140*1800mm Machine weight 1500kg
