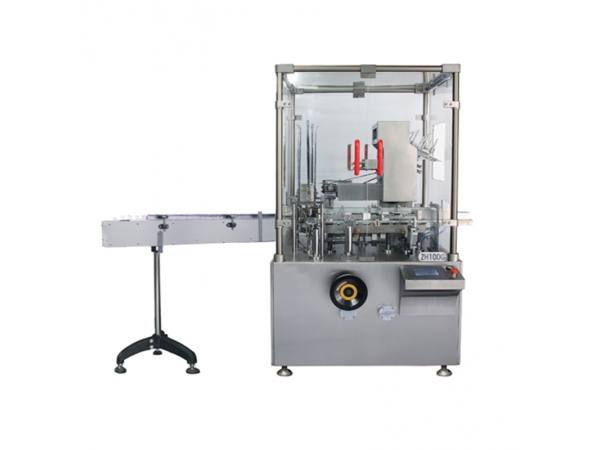

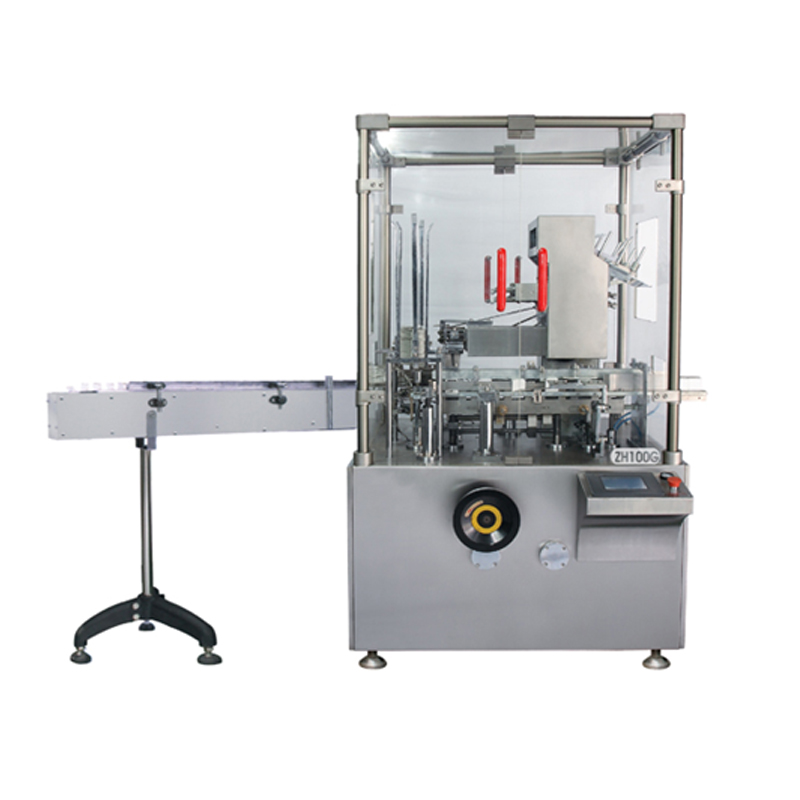

The JDZ-120G Vertical cartoning machine is a type of packaging machine that specially for packing several kinds of products such as tubes, trays, ice cream, chocolate etc. It can be linked with the pre-packing machine. It consists of direction folding (1-4folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.
Conforms to cGMP standards CE Marked
It can be feeding product by manual or linked with pre-packing machine
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
Adopt human-machine operation system.
When machine is overload, it will automatically stopped.
It will automatically reject lacking of package product and leaflet.
It will automatically display trouble, Alarm and count finished products.
Fully adjustable throughout size range with digital position indicators
Stable performance, operation is easy.
Main technical parameters | JDZ-120G | |
Encasing speed | 30-120cartons/min | |
Carton | Quality requirement | 250-350g/m2 Base on carton size |
| Dimension range(L*W*H) | (65-155) *(30-85) *(15-50)mm |
Leaflet | Quality requirement | 60-70g/ m2 |
| Unfolded leaflet specification | (80-250) *(90-170)mm |
| Fold range | 1-4 fold |
Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min |
Power supply | 220V 50HZ | |
Motor power | 0.75Kw | |

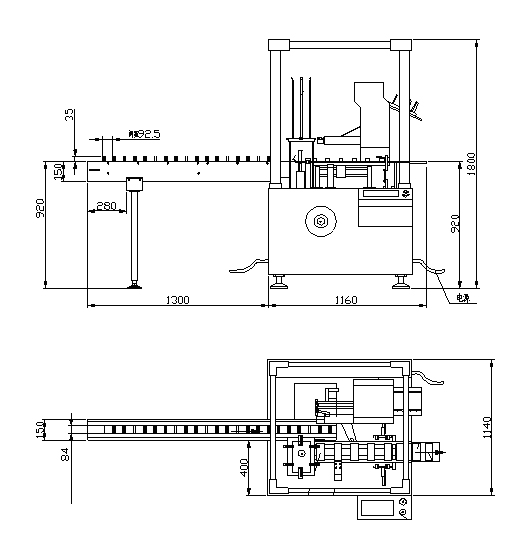

Machine dimension(L*W*H) | 2300*1140*1800mm | |
Machine weight | 1200kg | |
