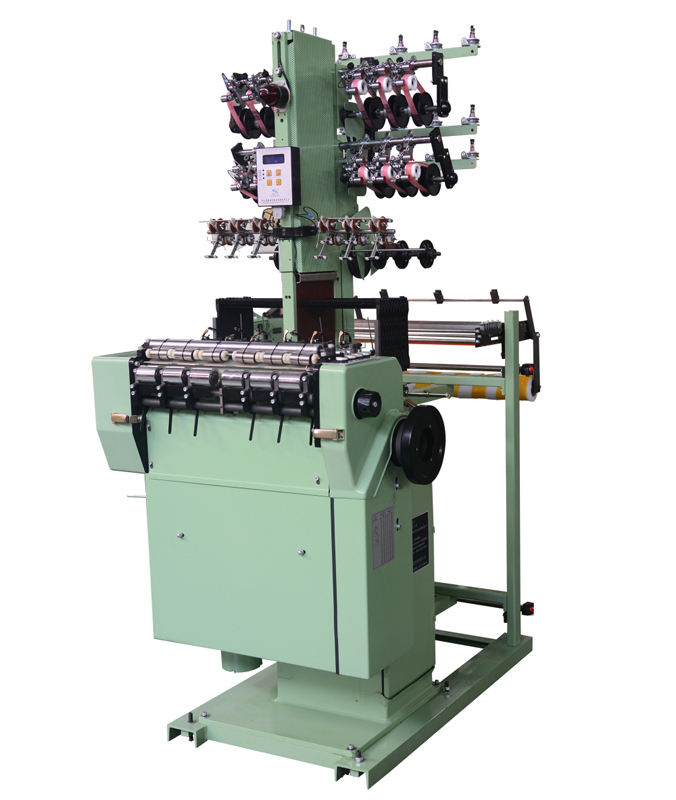

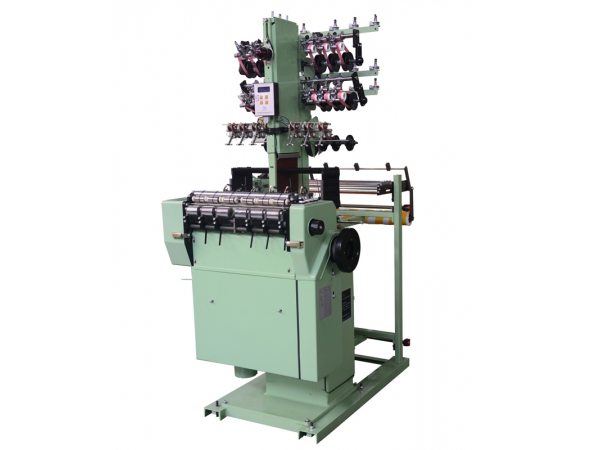

The JX-NF2 needle loom is suitable for the manufacturing of high-quality elastic or non-elastic woven tapes, such as elastic ribbons for lingerie, elastic belts, curtain belts, hook and loop fasteners, webbing strap, ribbon, shoelaces, and more. This ribbon weaving machine is widely used in clothing, hat, hair accessory, gift, bag and suitcase and other industries.
With a streamlined and advanced design, the JX-NF2 needle loom is designed to increase the production efficiency and yield at minimum maintenance costs. The fabric removal device uses a belt drive that results in a lower friction, vibration, and abrasion compared to a turbine drive, and ensures the equipment is operator friendly, and allows for a simple, flexible regulation of the weft density.
Optional models
Model | 8/27 | 6/42 | 4/66 |
Tape Lines | 8 | 6 | 4 |
Reed Width | 27 | 42 | 66 |
No. of Heald Frame | 12-20 | 12-20 | 12-20 |
Pattern Chain Repeat Length | 48 | 48 | 48 |
Motor | 2HP | 2HP | 2HP |
RPM | 1300-1500 r/min | 1200-1500 r/min | 1200-1300 r/min |
Weft Density | 2.9-40.5 | 2.9-40.5 | 2.9-40.5 |
Special Device* | DH | DH | N |
