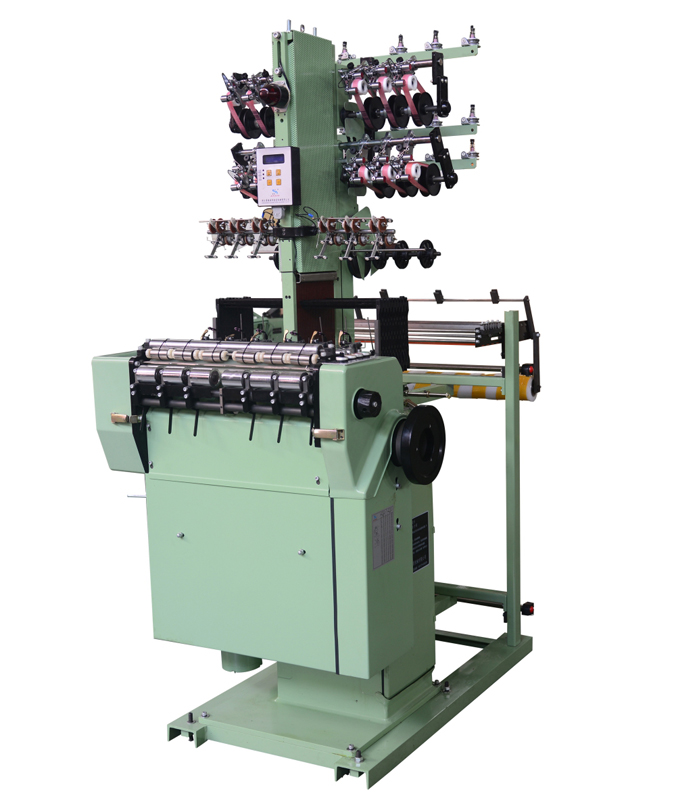

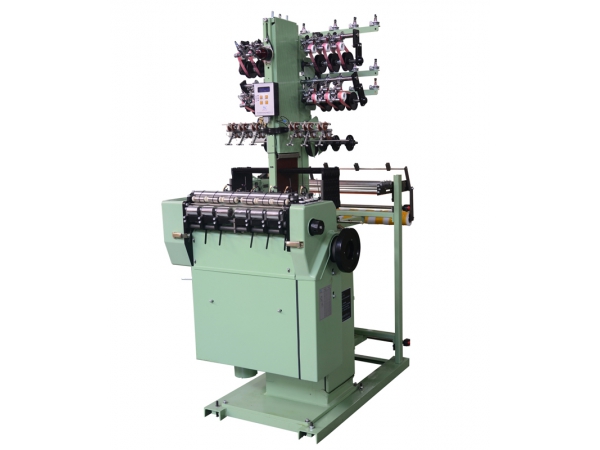

The JXNFB53-6/42 needle loom is one of Comtech’s traditional looms, and is especially suitable for high-performance elastic and non-elastic woven tapes, such as elastic ribbons for lingerie, elastic tapes, curtain tapes, satin ribbons, hook and loop fasteners, webbing straps, shoelaces, and more. The JXNFB53-6/42 needle loom achieves excellent results with a wide application range, including clothing, hats, hair accessories, gift bags, and suitcases.
JXNFB53-6/42 needle loom features double weave, double needle hook and double weft systems, leading to the highest productivity. Equipped with an automatic weft thread transport device and two-speed brake motor, the weft thread is easily regulated, stable, and flexible without having to stop the equipment. This makes the loom applicable for weaving underwear lace bands, lace tapes, zipper tapes and other applications.
Optional Models
| Model | 8/27 | 6/42 | 4/66 |
| Tape Lines | 8 | 6 | 4 |
| Reed Width | 27 | 42 | 66 |
| No. of Heald Frame | 12-20 | 12-20 | 12-20 |
| Pattern Chain Repeat Length | 48 | 48 | 48 |
| Motor | 2HP | 2HP | 2HP |
| RPM | 1300-1500 r/min | 1200-1500 r/min | 1200-1300 r/min |
| Weft Density | 2.9-40.5 | 2.9-40.5 | 2.9-40.5 |
| Special Device * | DH | DH | N |
