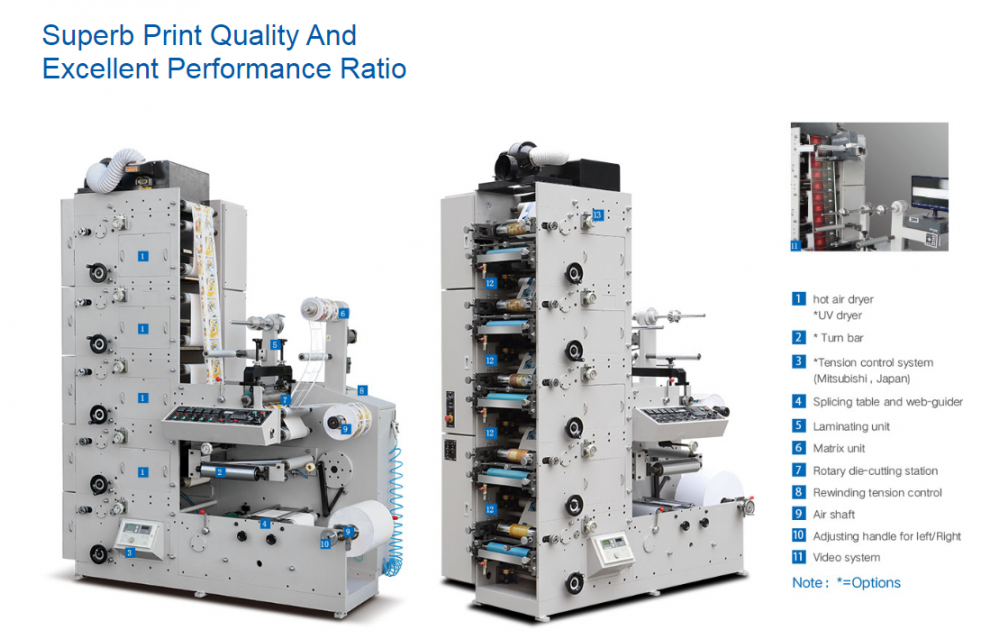

Label(logo) Flexo Printing Machine
This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
Main Features1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
4.Each printing unit equips with hot air dryer.
5. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
6. Main motor use inverter to adjust stepless speed.
7. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.
Main Technical Parameters
Model | ZBS-320 |
Printing speed | 60（M/Min） |
Printing color | 1-6（Colors） |
Max. web width | 320mm |
Max. printing width | 310mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 600mm |
Printing length | 177.8-355.6mm |
222.25-539.25mm （Options） |
Precision of chromatography | ±0.1mm |
Dimensions(L×W×H) | 2000x1100x2600mm |
Machine weight | (About)2150kgs |
