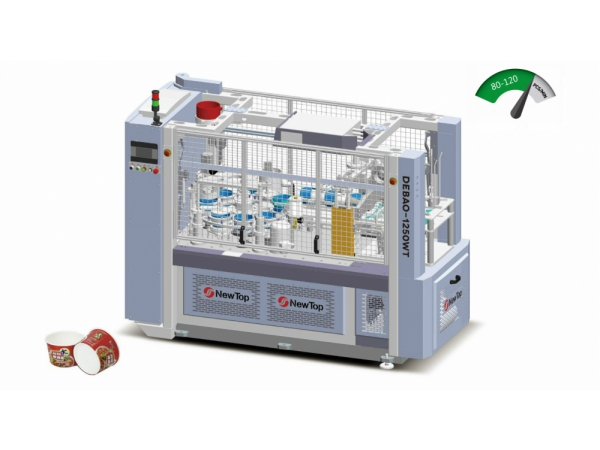

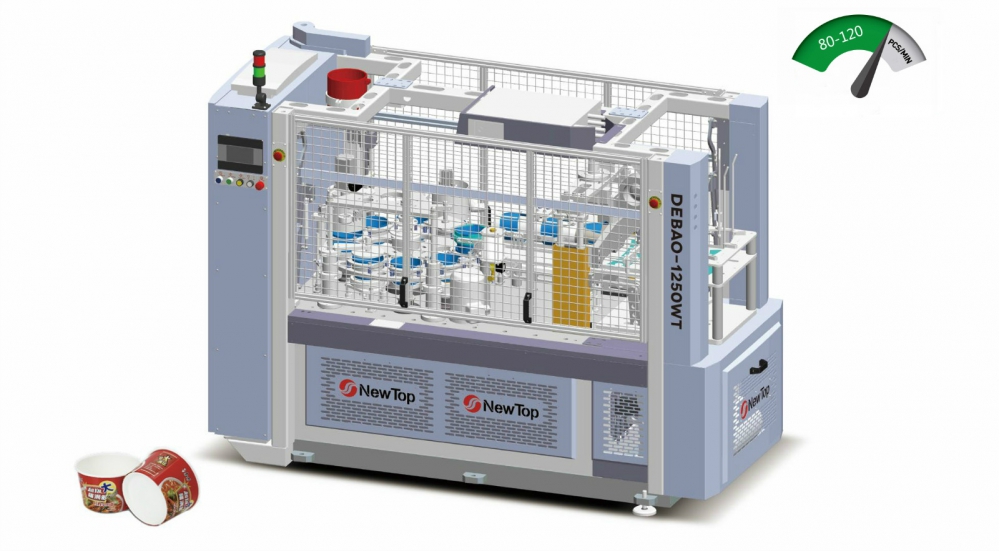

DEBAO-1250WT intelligent paper cup jacket machine adopts open-type, intermittent division design, gear drive, longitudinal axis design, so they can reasonably distribute each part function. The whole machine adopts spray lubrication. PLC system controls the whole cups forming process. By adopting photoelectric failure-detecting system and servo control feeding, our machine’s reliable performance is guaranteed, thus offering a rapid and stable operation. The maximum speed can reach 100pcs/min, and it is suit for produce 8-44OZ cup jacket forming which is widely used in milk-tea cup,coffee cup, ripple cups, noodle bowl and so on.
Production Efficiency
3.One operator can handle several machines at the same time.
Machine parameter
DEBAO-118DT DEBAO-1250WT Weight Weight 2600 kg 2600kg Machine
encasement dimensions Machine encasement
dimensions 2900 x 1400
x 2100mm 2700 x 1300 x 2100mm Connecting
power Connecting power 380V，5KW 380V，5KW Compressed
air Compressed air 0.6-0.8MPa，0.4m³/min 0.6-0.8MPa，0.4m³/min Production
capacity Production capacity Hollow/appressed:80-120pcs/min; appressed:80-120pcs/min, Corrugated:80-100pcs/min; Hollow/corrugated:60-80pcs/min Embossing:60-80pcs/min Paper types Paper types White
board/Grey board/Corrugated board White board/Grey
board/Corrugated board Paper
grammage Paper grammage 200-300g/㎡
for white board/grey board 200-300g/㎡ for white
board/grey board 170-200g/㎡ for embossing Product
range Product range （D1)ф70-95mm
(H)60-135mm （D1)ф90-150mm
(H)70-110mm （D2)ф50-75mm (h)5-12mm （D2)ф80-120mm
(h)5-12mm Long term
magazine Long term magazine ○ ○ control
panel control panel 7 inches 7 inches Note:
optional ○ standard● Note: optional ○
standard●

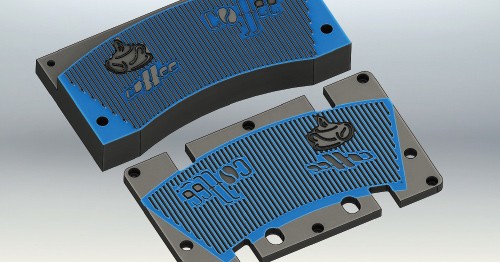

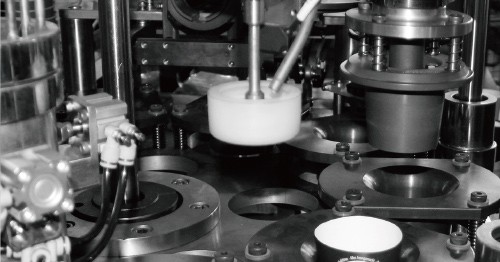

Corrugated Forming part
Intelligence Gluing
Mechanical Quality Guarantee
