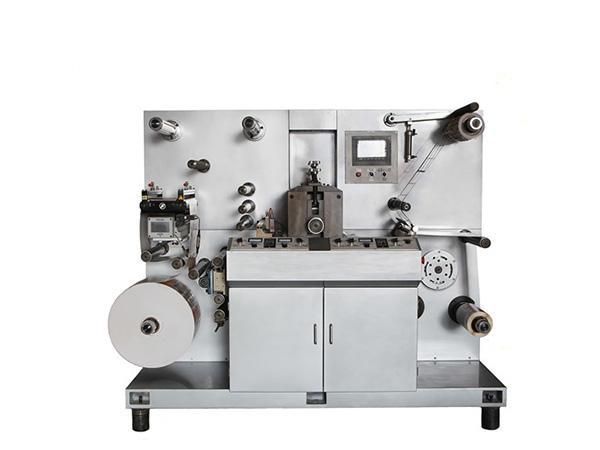

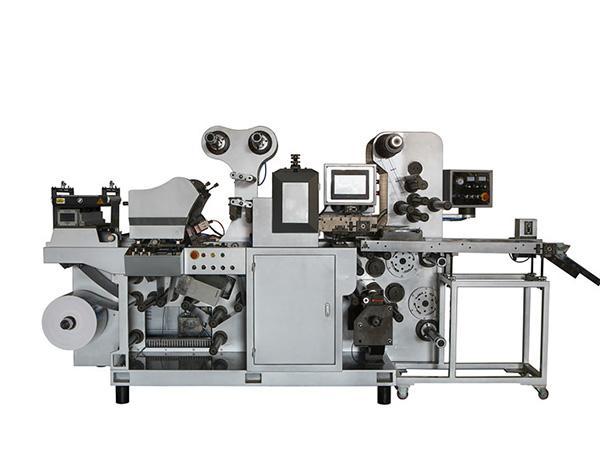

Rotary Die Cutting Machine
JXMQ-320 full servo rotary die cutting machine adopts full servo shaftless driving system with unidirectional uniform feeding paper. It features high speed, high precision registration, easy operation, high safety and stability.
The machine is equipped with high quality magnetic cylinder. This intermittent die cutting machine doesn't need to change the magnetic cylinders while dealing with different size products. Only the flexible die should be changed. The rotary die-cutting machine is composed of unwinder, web guider, laminator, register die cutter and rewinder. Many options can be added, including flexo UV varnishing device, cold foiling device, die cutting stations, sheeter conveyer, slitter with two rewinders.
Standard Configurationa) 1 rotary die cutting station with waste rewinding shaft
b) 1 lamination station with waste rewinder for over-lamination film with liner
c) 1pc of 3’’ unwinding shaft with tension controller.
d) 1 meter/number counter.
e) 1 register sensor
f) 8 rotary knifes.
g) 1 blower fan for blowing away the paper scraps after trimming.
h) 1 USA web guider
