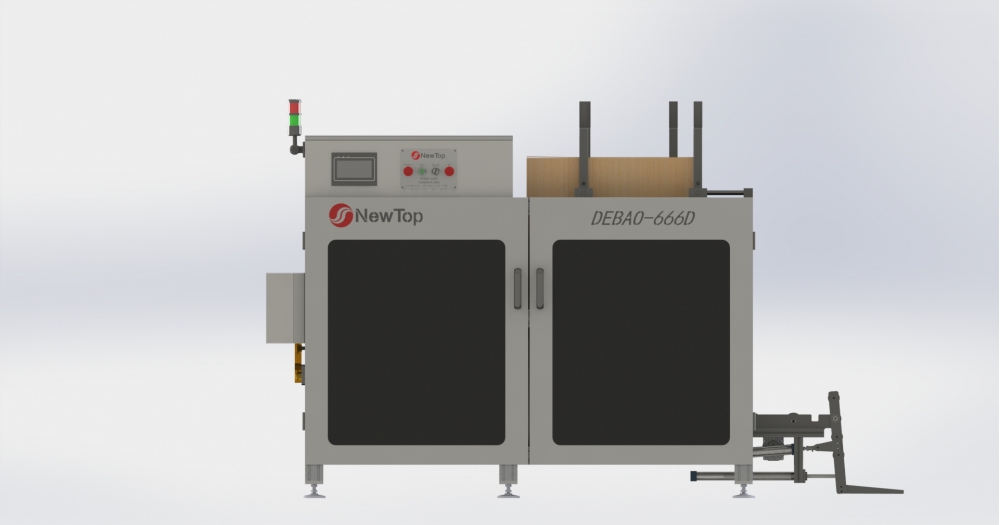

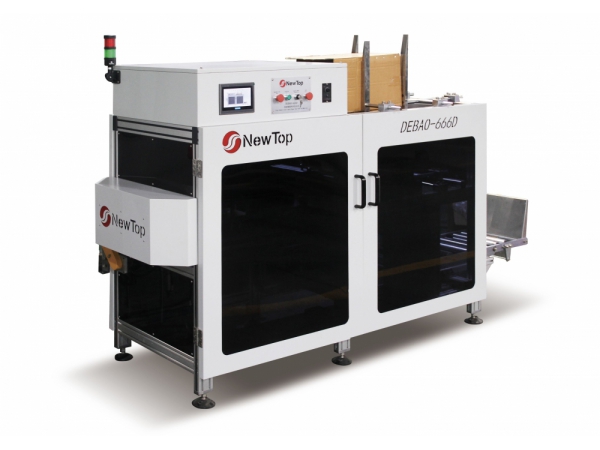

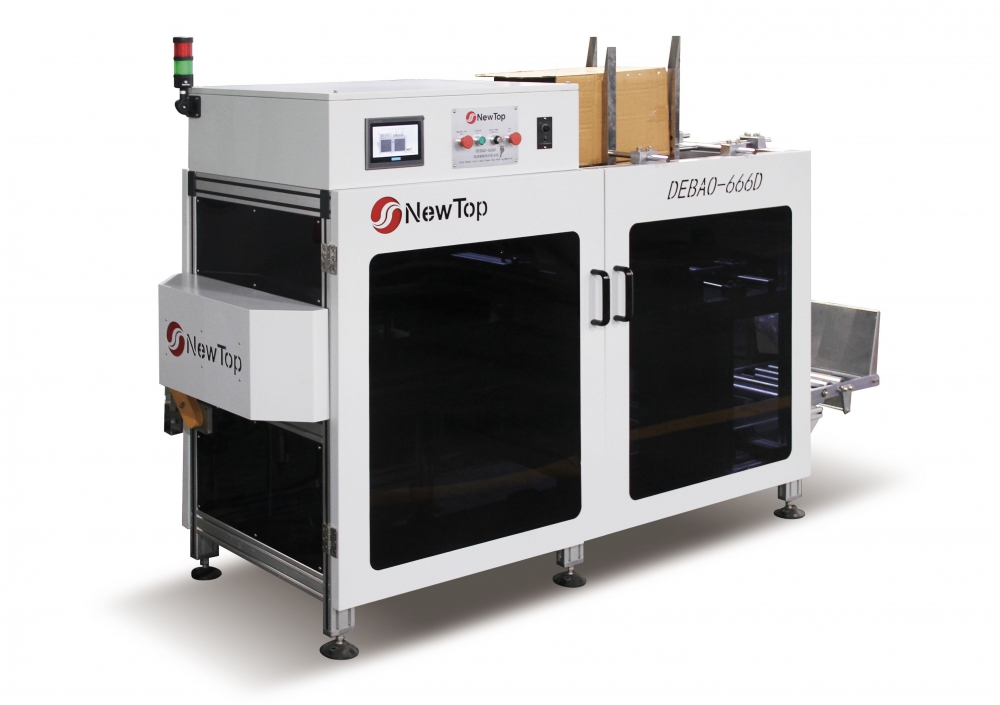

DEBAO-666D paper cup encasing machine has functions of paper cup auto-feeding, cup bags quantity identification, carton feeding and discharging. It can be linked up to 4 paper cup machines and 1 packing machine as an automatic production line. The lifting height can be adjusted according to the diameter of the paper cup and the carton size. It is an ideal machine for automation.
Machine parameter
Model DEBAO-666D Weight 550 kg Size(LxWxH) 1800x1600x2000mm Total power Three-phase, 220V, 2KW Air supply
requirement 0.4MPa、0.5m³/min Packing
speed 30Cartons/Hr Carton
specification 500*400*700mm Packing
diameter φ60-95mm（cup）φ95-150mm（bowl）
