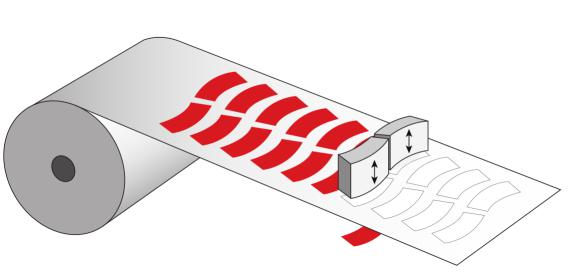

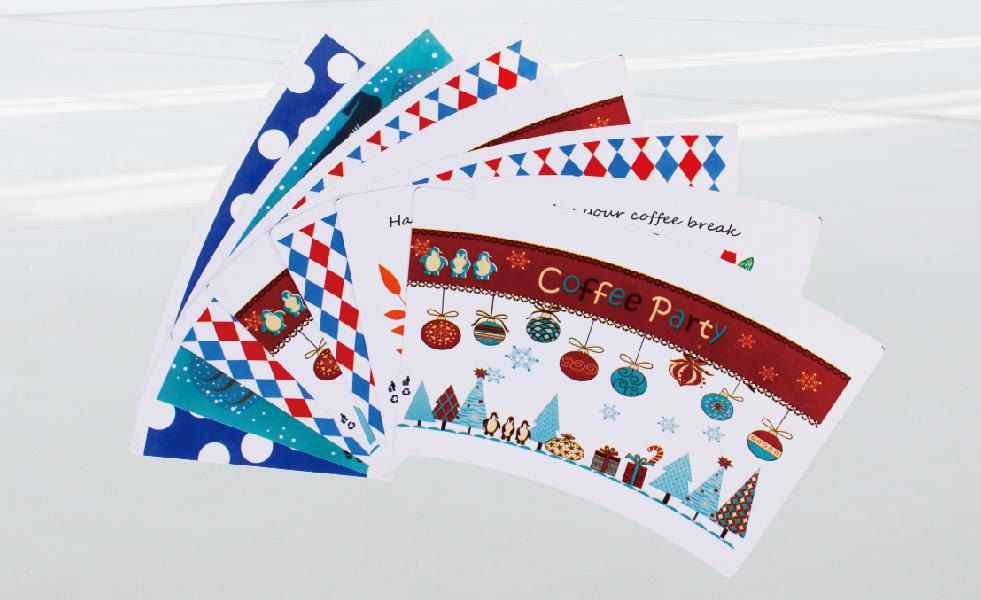

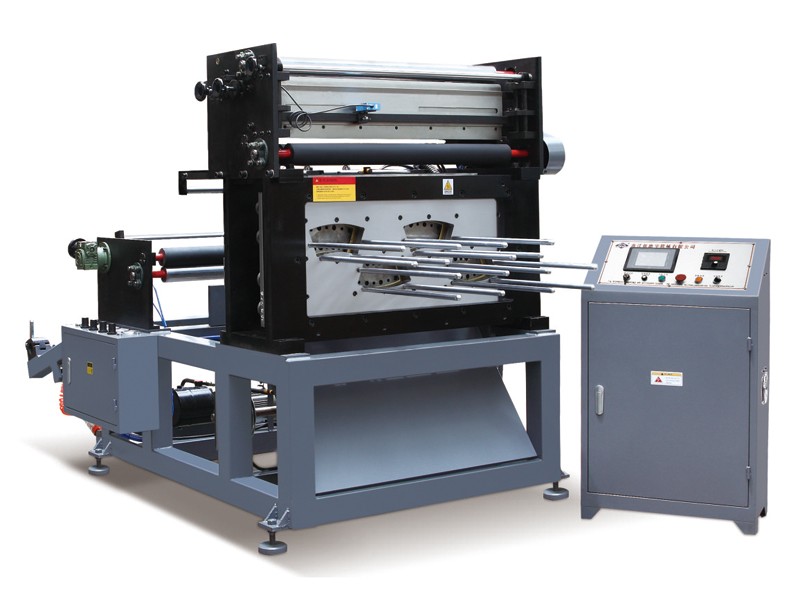

DEBAO-C900 automatic punching machine removes the waste clearing step in traditional procedures and cuts the pattern paper directly.So it is a good machine which can not only largely reduce the consumption and manpower of worker;The machine adopts professional high definition gas feeding paper structure,it comes ture to feeding paper smoothly;locating accurately;collecting paper tidily.It is controlled by PLC, whhich makes the whole working procedures are automatic.It is ideal equipment for cutting many kinds of paper container,such as disposable paper bowl,paper cup, paper meal,paper box,lable paper,etc.
Machine parameter
Model DEBAO-C900 Cutting
speed 100-250 times/min Required
paper 135-400g/m2,width
:355-880mm Paper width
Max 950mm Way of
cutting Die cutting (fit for
roll paper) Mould board
size 950mmx420mm Total power 380v 50Hz 6.3kw Main roller
length 1000mm Size(LXWXH) 3000x1600x2000mm Control
system PLC control
