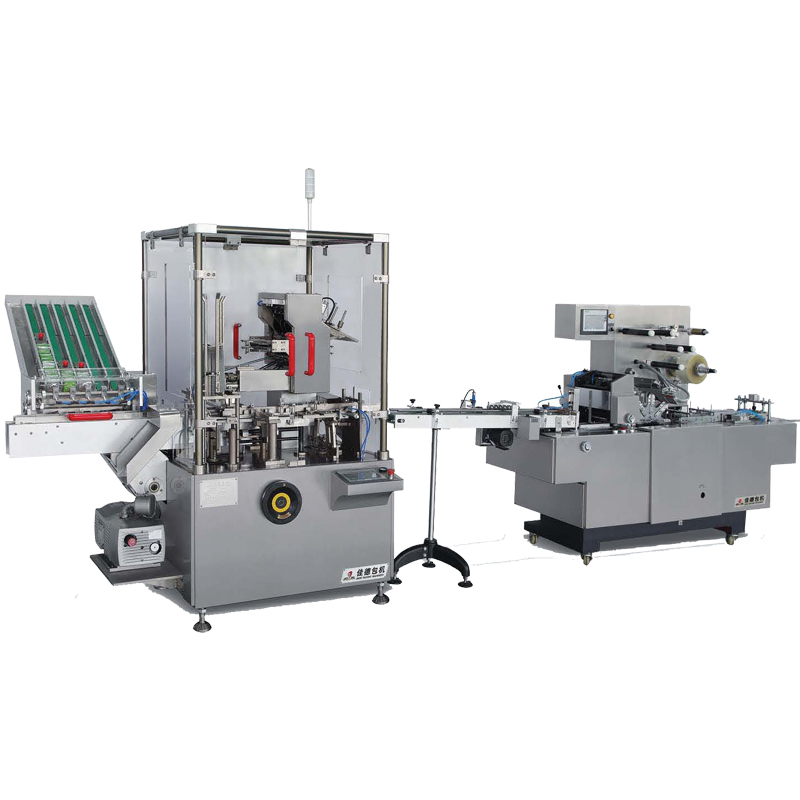

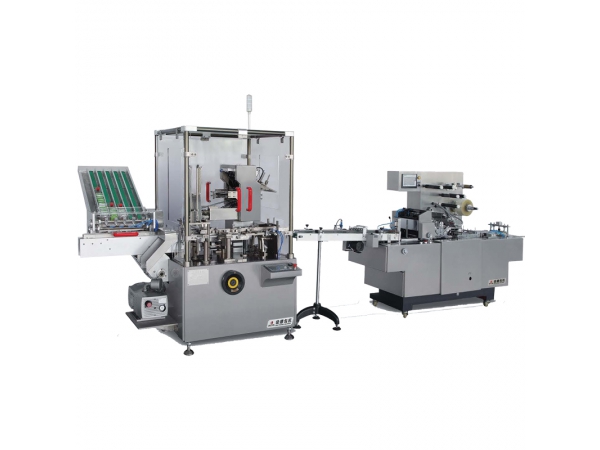

The JDZ-120 LZ Cartoning Production Line is suitable for packing condom, sachet, pouch, soft alv/alv strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton and three –demensional. This line includes the functions as product feeding, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
International famous brand of electrical component such as PLC touch screen, frequency inverters etc.
Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, alarm and count finished products.
Stable performance, operation is easy.
Main Technical Parameters of JDZ-120LZ | |
Capacity | 20-80 packs/min |
Packing dimenssions | (40-200)x (30-140)x(10-50)mm |
Motor Power | 0.75kw |
Electric Heating | 4Kw |
Overall dimensions | 2400*800*1700mm (L X W X H) |
Weight | 880kg |
