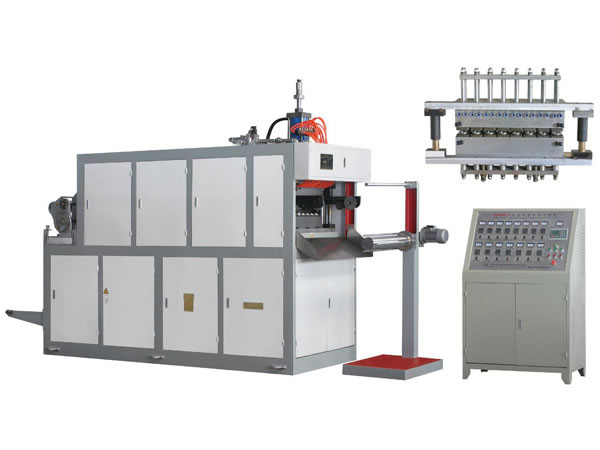

The plastic cup forming machine is an ideal product for forming PP, PS, HIPS, PVC and PET plastic sheets due to its high performance. It is widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups, chocolate package boxes, candy boxes, fast-food boxes, etc.
| 1. Maximum forming area: 250×580mm | 2. Maximum forming depth: 120mm |
| 3. Maximum width range of sheet: 300-660mm | 4. Thickness range of sheet: 0.2-2.0mm |
| 5. Maximum sheet roller diameter: 710mm | 6. Air pressure: 0.7Mpa |
| 7. Water consumption: 100 Liters/min | 8. Air consumption: 2000 Liters/min |
| 9. Manufacturing speed: 10-35mould/min | 10. Power: 3-N AC 308V±15V |
| 11. Heating motor power: 60kW | 12. Main motor power: 5.5kW |
| 13. Feeding motor power: 2.2kW | 14. Rewinding motor power: 0.37kW |
| 15. Weight: 4000kg | 16. Main machine(L×W×H): 3300×1650×2250(mm) |
| 17. Dewinder (L×W×H): 1250×800×1900(mm) | |
