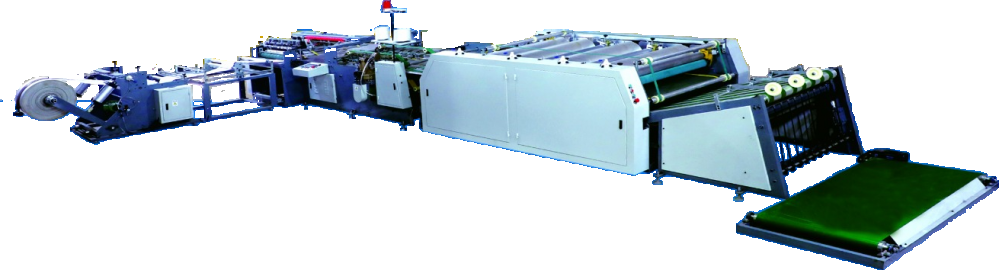

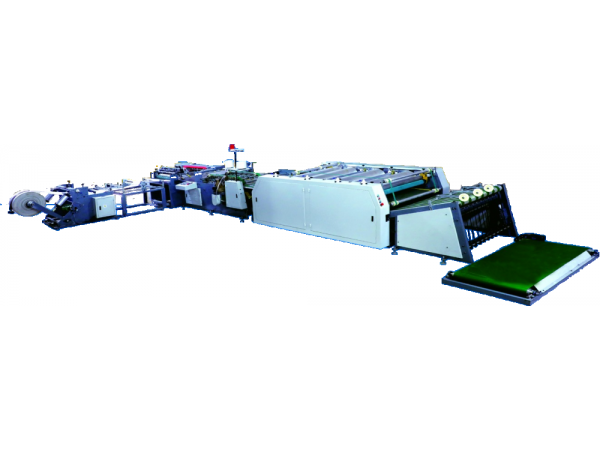

Woven slitting machine

Woven slitting machine

Product performance and uses: Suitable for all kinds of market bags, fertilizer bags, rice bags, is a one-time completion of cutting, sewing the bottom of the processing equipment This machine can automatically cut, feed, fold, sew, cut and receive

Inquiry
Product characteristics:
1. Suitable for automatic cutting and seaming of cement bags, flour bags, feed bags, sugar bags, fertilizer bags, etc.
2. fully automated, intelligent combined operation of one person, one machine, production efficiency increased by more than two times.
3. Set a variety of processing processes in one, one person can complete the knitting bag cutting, feeding, feeding, folding, stitching, broken
line, receiving, cutting, counting all the processes, closely with each other; without interference.
4. It is the first time that the photoelectric detection equipment is combined with the photoelectric detection equipment in the industry. It can
intuitively and accurately detect the work flow, with good safety, less electrode consumption and easy operation.
5.  digital frequency conversion is used to turn power into electricity.

6.  according to customer needs, special sizes, machinable and customized.

Main Parameter

ITEMPARAMETER
Working Speed(Bags/Min)20-50
Cutting Width(mm)350-800
Cutting&Printing Length(mm)450-1300
Cutting Accuracy(mm)±1
Material Size(mm)Φ1200*800
Bottom Folding Width(mm)12-30
Printing Colors1-5
Printing Width(mm)1300
Printing Cylinder Dia(mm)305
Printing Plate Thickness(mm)2.84-5
Machine Power(KW)8.5
Machine Weight(T)3.5
Machine Size(M)12.5x5.5x1.8
