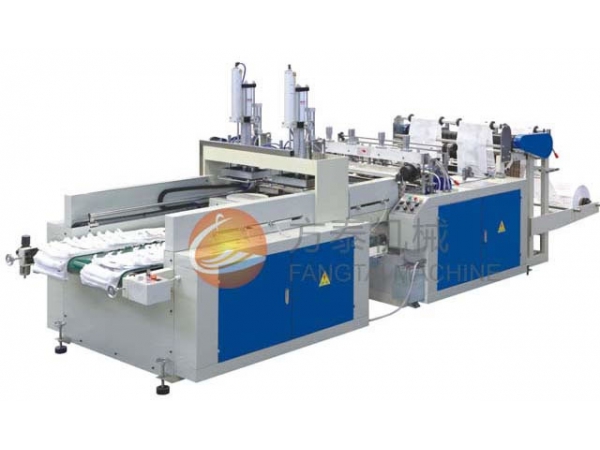

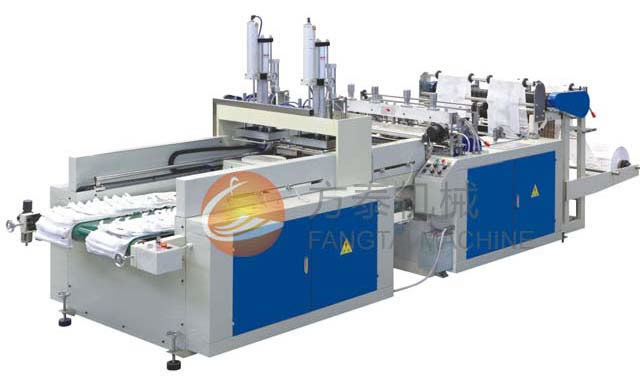

Our FTHQ automatic vest style carrier bag making machine is fed with LDPE or HDPE film to make vest bags. It adopts PLC control and stepping motor to control the length. Customers can deicide to choose a servo motor or not.
The liquid crystal touch screen can simultaneously display the status of feeding, sealing, cutting, punching holes and discharging throughout. Our product features high automation and can bring investor good economic returns.
Technical ParametersModel FTHQ-400*2 FTHQ-450*2 Max bag width 320mm*2 400mm*2 Max bag length 600mm 600mm Bag thickness 0.015-0.035mm 0.015-0.035mm Producing speed 140-180pc/min*2 140-180pcs/min*2 Air compressor 5kg/m2 5kg/m2 Total power 7kw 9kw Machine weight 1400kg 1600kg Dimension 6000*1400*1600mm 6000*1600*1700mm
