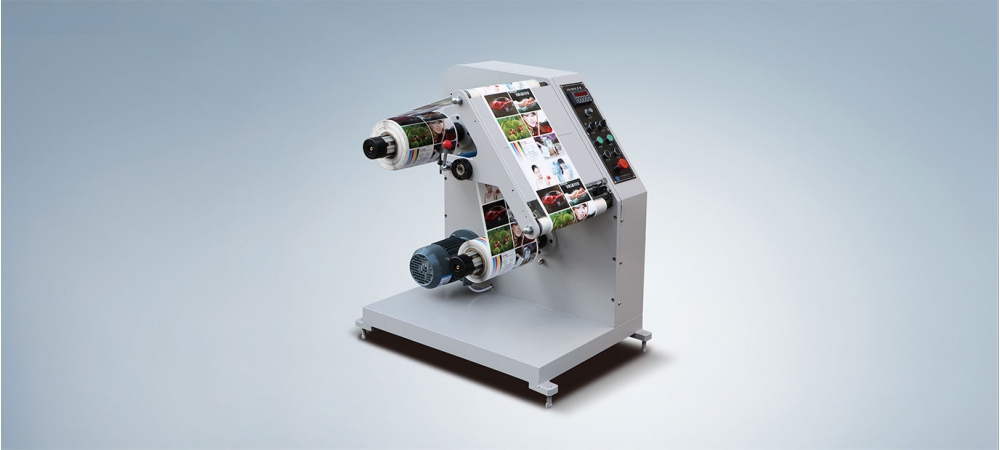

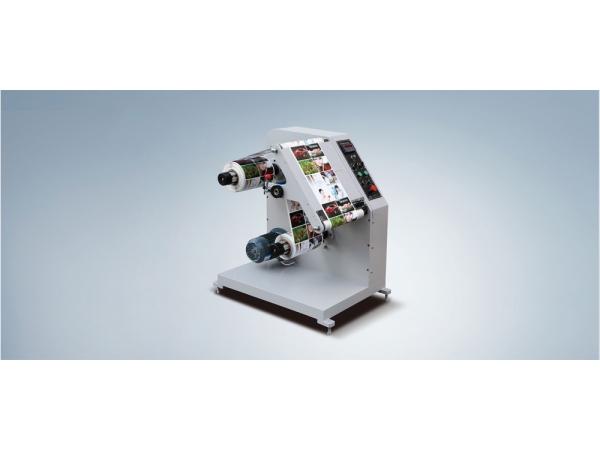

EM-320 inspecting machine is an accessorial machine for printing machine and die-cutting machine; it inspects the quality of printing and die-cutting. This machine has meter counting and label counting function, has the characteristics of stable running, easy operation, high speed and forward-backward running/inching.
Main Technical Parameters
Model | EM-320 |
Max.speed | 70m/min |
Max.web width | 320mm |
Max.unwinding diameter | 500mm |
Power supply | AC220V ±10% |
Power consumption | 0.75KW |
Dimensions(L×W×H) | 900x620x960mm |
Machine weight | (About)200kgs |
