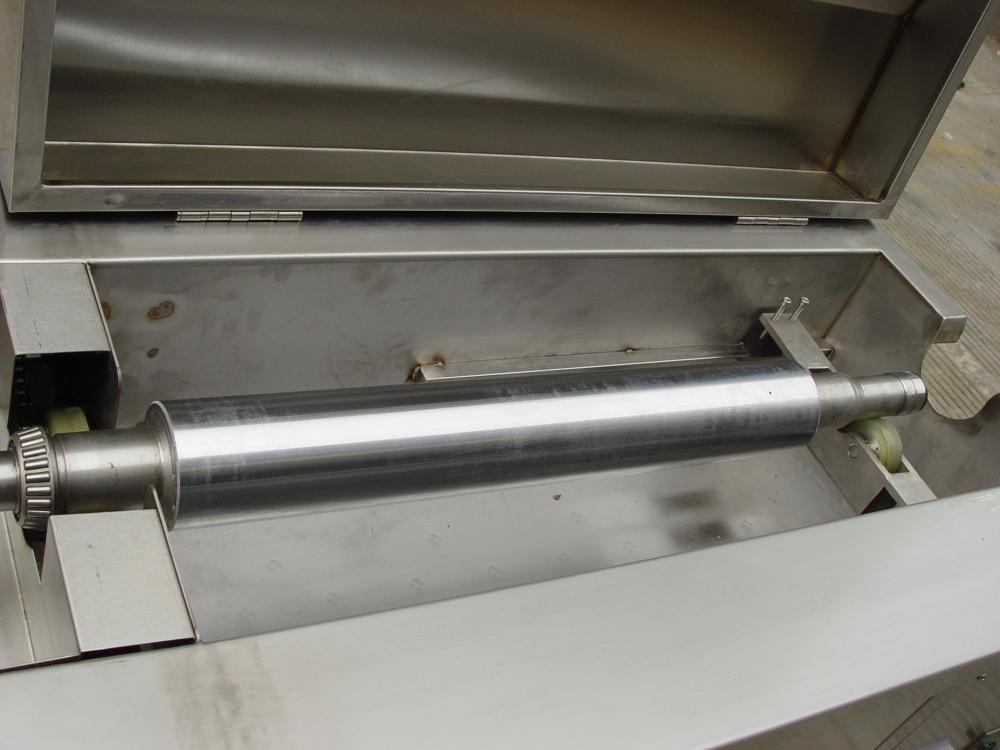

Washing chemically & physically This machine is combined with microwave generator, vibration box and mechanic structure suitable for evenly washing anilox For the purpose of clear washing, microwave vibrators vibrate to generate countless micro air bubbles, which can bang into the small cells and get the dust away from the cells. This machine's design is professionally made for washing anilox, as a result, the micro air bubbles will not hurt the surface of anilox. Stainless steel frames.
Main technical specification
Model | QXJ-450 | QXJ-700 | QXJ-1000 | QXJ-1800 |
Vibrator quantity | 15 | 15 | 24 | 24 |
Ultrasonic power | 600w | 900w | 2100w | 2100w |
Ultrasonic frequency | 25 or 40 KHZ | 25 or 40 KHZ | 40 KHZ | 40 KHZ |
Heating power | 1600w | 1600w | 1000w | 1000w |
Power supply | 220v/1P/50~60Hz | 220v/1P/50~60Hz | 220v/1P/50~60Hz | 220v/1P/50~60Hz |
Washing tank dimension | 660x280x200mm | 680x280x200mm | 1000x200x260mm | 1800x200x280mm |
Overall dimension | 880x460x730mm | 900x460x730mm | 1200x460x850mm | 2000x460x850mm |
Packing dimension | 930x510x820mm | 950x510x820mm | 1300x560x1100mm | 2100x560x1100mm |
Weight | 90kg | 100kg | 135kg | 135kg |
