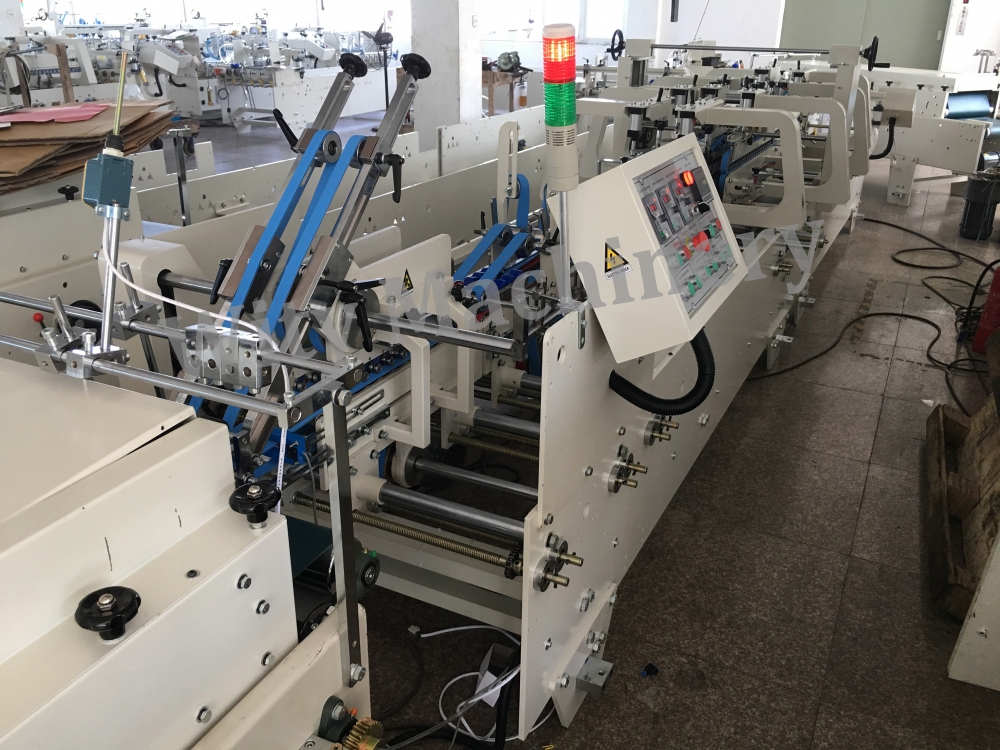

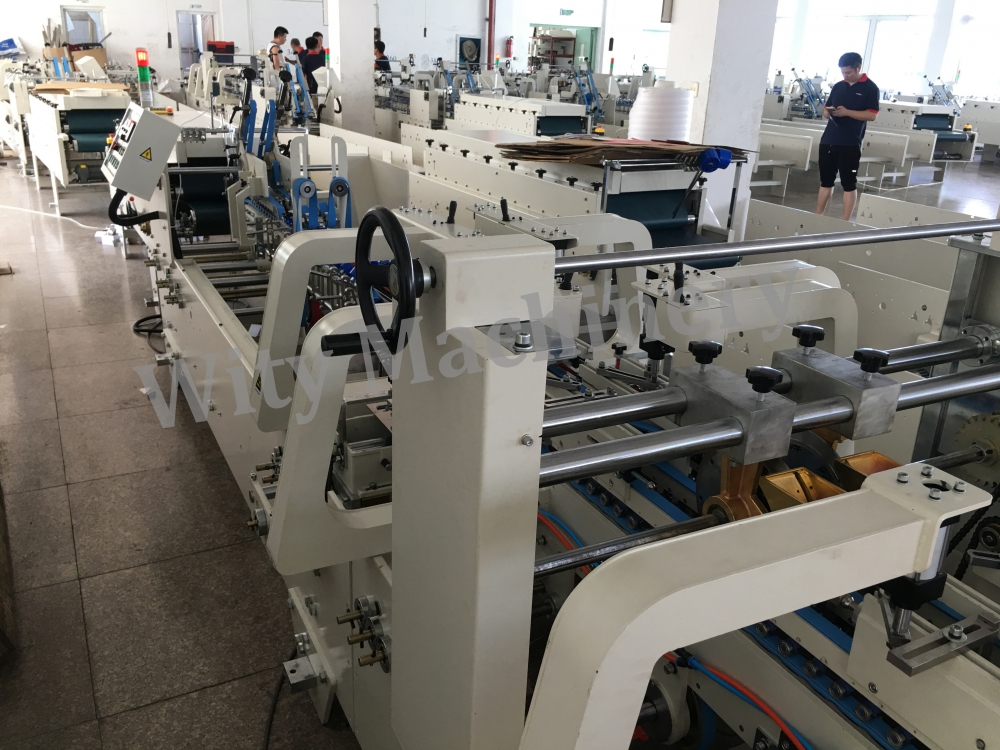

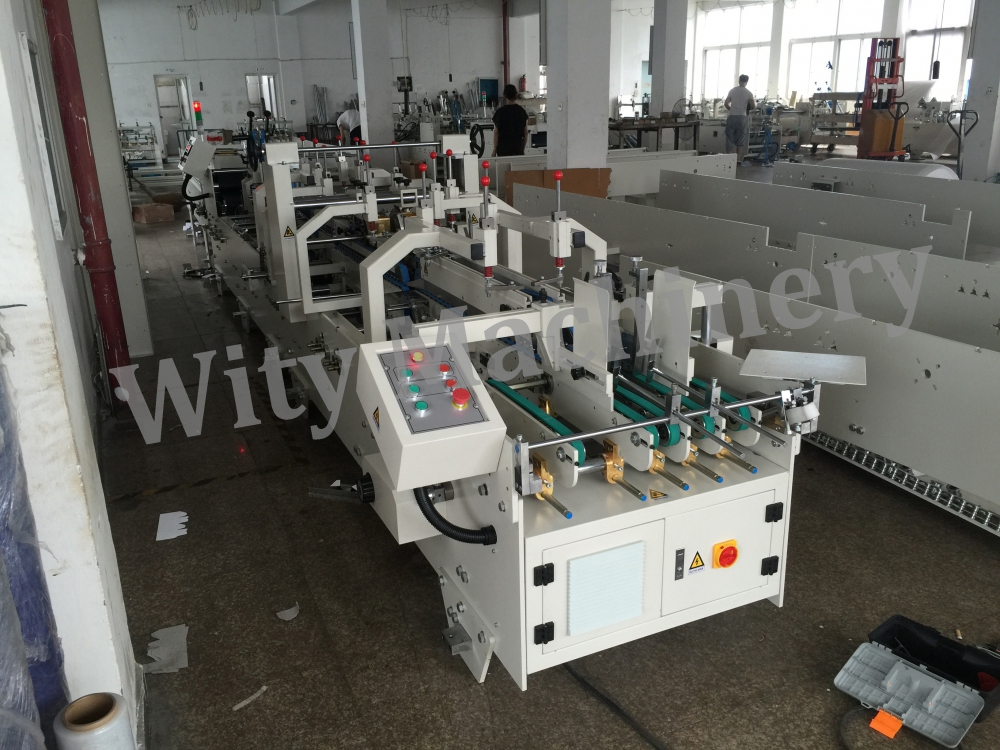

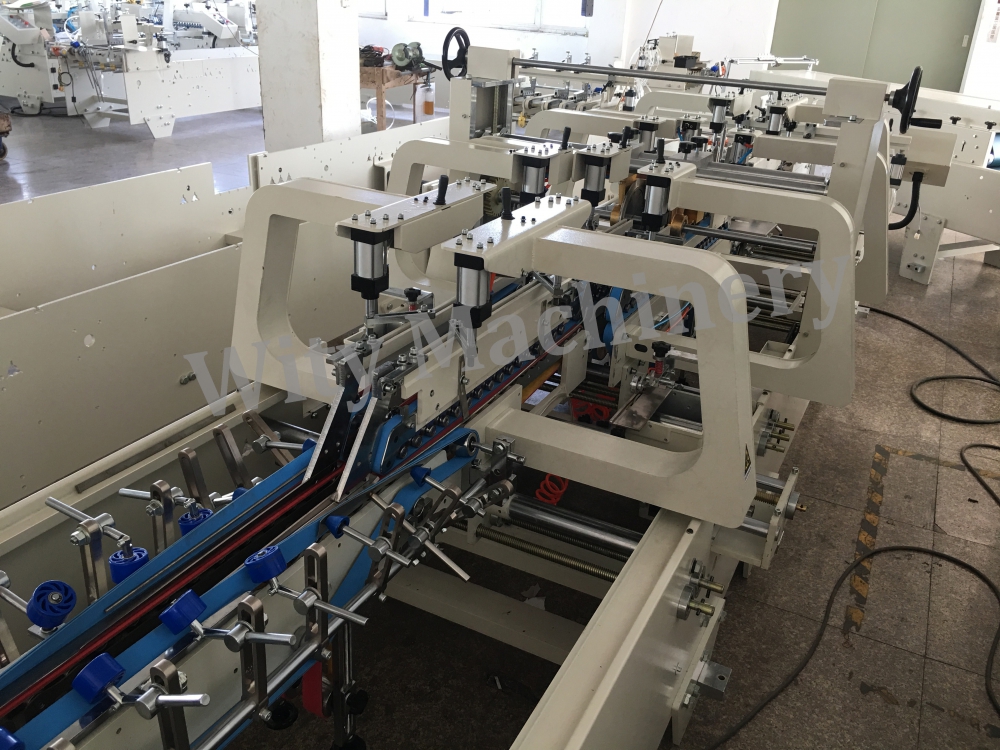

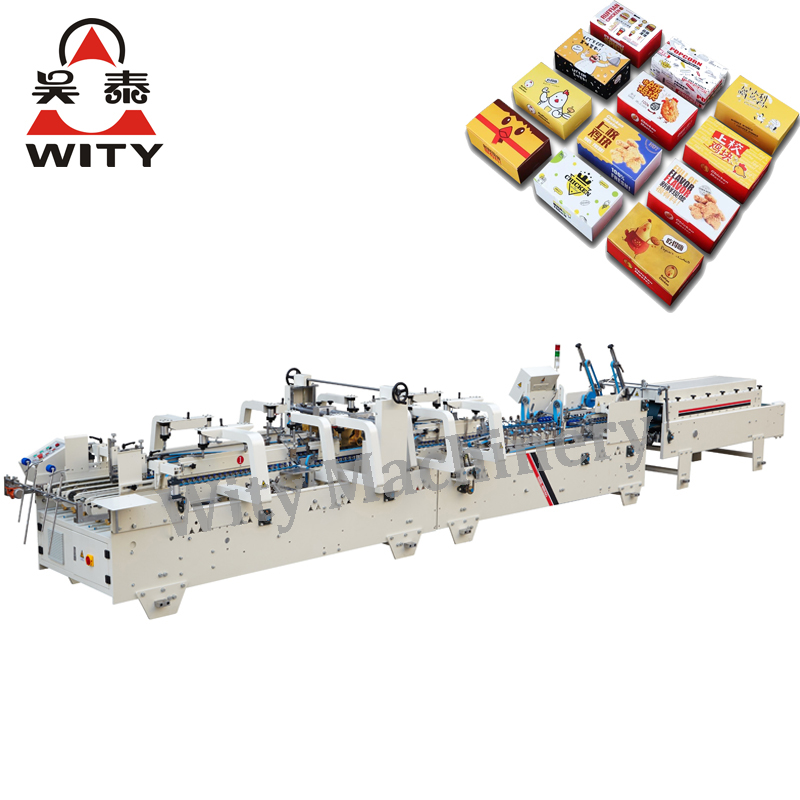

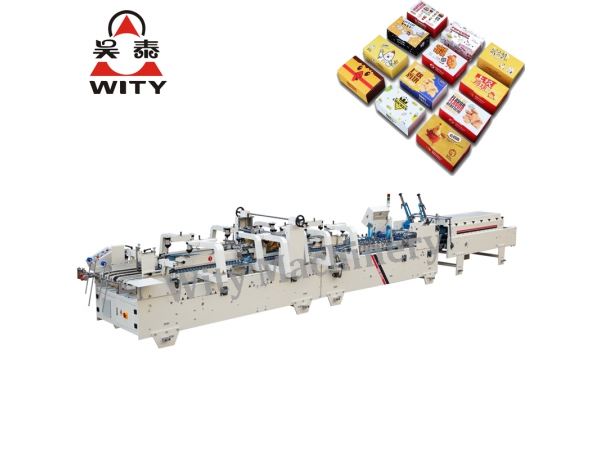

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
1. Main technical parameter:
Power
capacity: 6.5KW 380V
Overall
size (mm): 9000 x 1100(1300 )x 1350
Weight
(kg): 2600 2950 3300
2. Working principle:

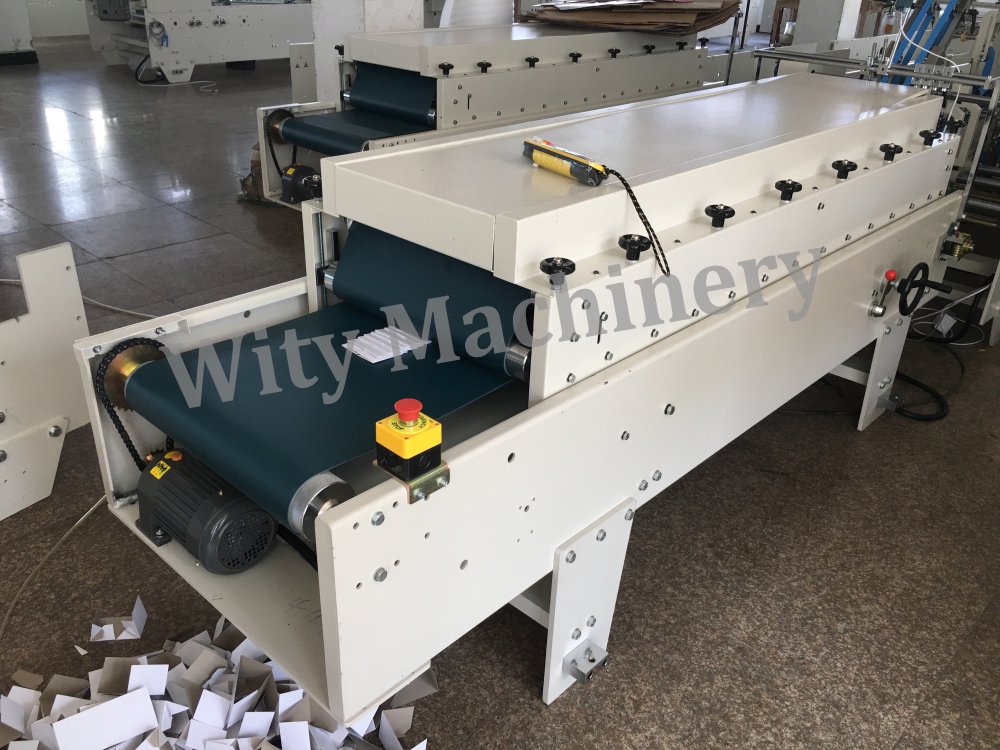

After starting the machine, the automatic paper feeding table will feed the paper sheets needed to be pasted out one by one continuously. The gluing device will automatically coat the glue on the adhesive position of paper box evenly. The glued paper sheets also will automatically send to the fold part. In the course of paper sheets ahead, the belt device of the fold part will automatically fold and stick the paper box. After finishing the fold and adhesion, send the paper box to the pressing part. After pressing, send it to the conveying part to be pressed firmly, finally send it to the paper receiving table. The whole working procedure is finished.
