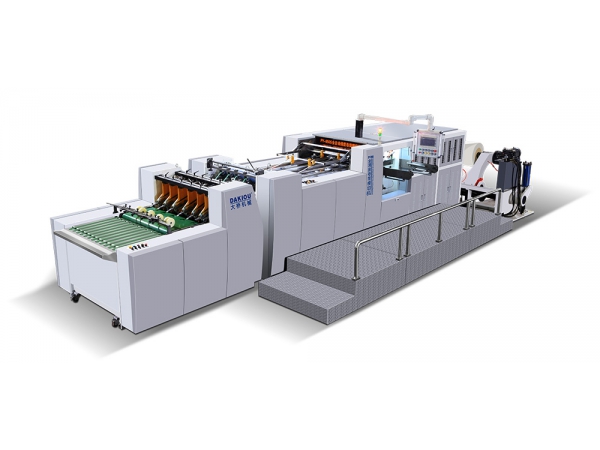

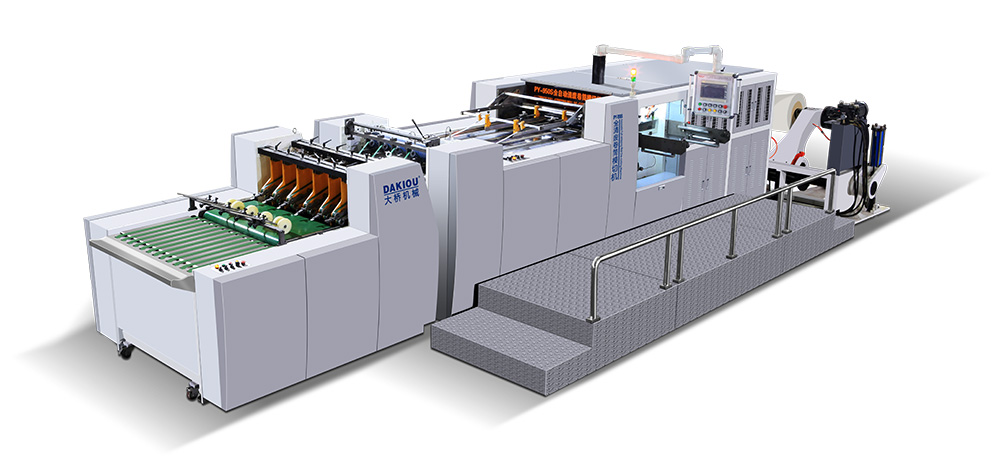

This automatic die cutting and creasing machine can automatically accomplish processes from die cutting, creasing, stripping to final products collecting in one machine pass. It is characterized by easy and safe operation, high production efficiency, ideal for post-press processing of paper cups, paper boxes and cards.
| Model | PY-950S | PY-1200S |
| Cutting precision | ± 0.10mm | ± 0.10mm |
| Cutting speed | 90-140 times/min | 90-150times/min |
| Max. cutting size | 950 x540mm | 1200 x640mm |
| Max. feeding width | 950mm | 1200mm |
| Applicable material | 100-600g/m ² PE coated paper, cardboard paper, kraft paper etc. | 100-600g/m ² PE coated paper, cardboard paper, kraft paper etc. |
| Max. cutting force | 250T | 350T |
| Total power | 25KW | 32KW |
| Weight | 13T | 15T |
| Overall dimension | 10000 x 4000 x 2000 mm | 10200 x 4150 x 2000 mm |
| Working air source | Air pressure 0.5-0.7Mpa | Air pressure 0.5-0.7Mpa |
