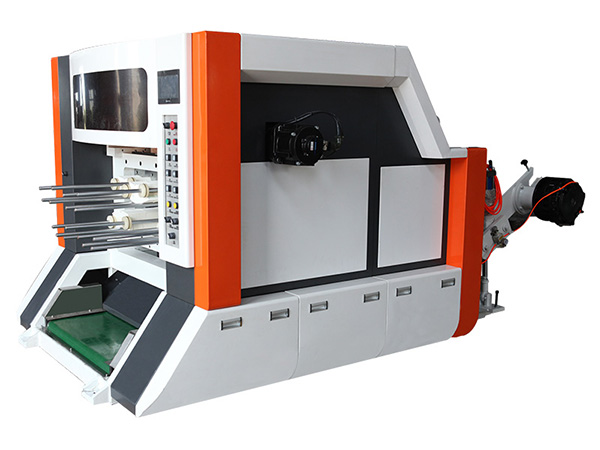

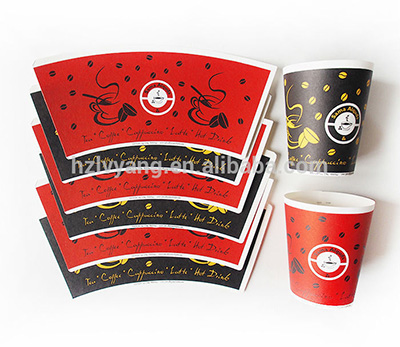

JTCQ-D high speed die punching machine is typically designed for die cutting and punching of paper blanks for manufacturing paper cups and paper plates, various sizes can be processed by changing molds. It is an ideal die cutting machine suited to be used with flexo printing machine.
| Model | JTCQ-D 900 | JTCQ-D 1200 |
| Cutting Precision: | ± 0.10mm | |
| Production Capacity | Metal die made in Germany/Switzerland: 300-380 times/min Metal die made in China: 200-240 times/min | |
| Metal die service life | Metal die made in Germany/Switzerland: 60.000.000 times Metal die made in China: 20.000.000.times | |
| Max. die cutting size | 850*350mm | 1150*350mm |
| Suitable Material | 120-450g/m2 PE coated paper, white cardboard paper | |
| Total Power | 10KW | |
| Total Weight | 3580KGS | 5100KGS |
| Overall Dimension | 3200mm*2300mm*1800mm | |
| Working Air Source | Air pressure 0.4-0.5Mpa | |
| Mold Weight | 400kg 1050*500*260(mm) | 500kg 1420*500*240(mm) |
