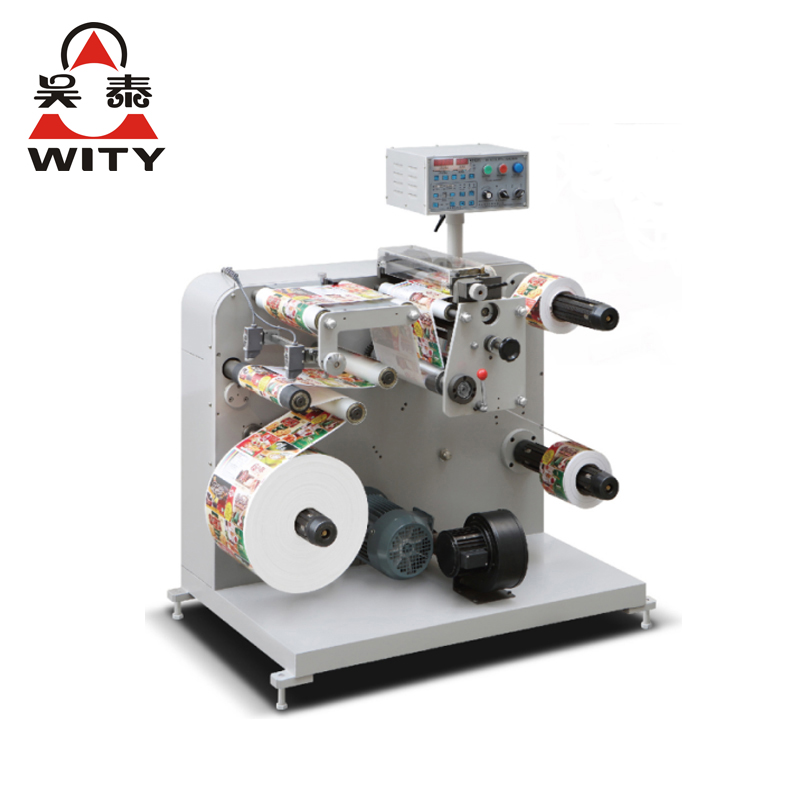

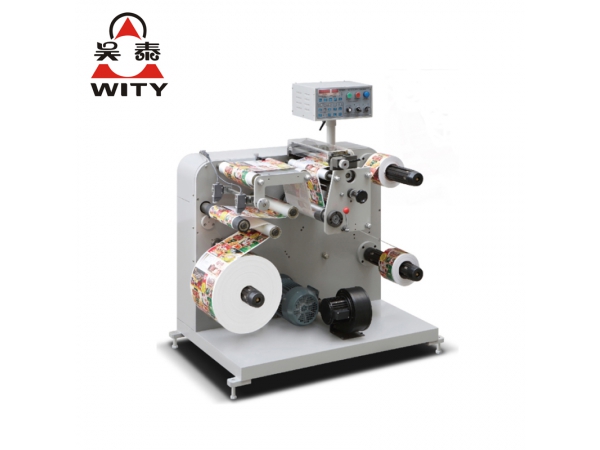

It is the auxiliary equipment of label die-cutting machine, which is used for narrow reel material slitting. It has the function of automatic meter and number counting, automatic stopping, photocell web-guiding. The machine gets the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running, etc.
Model | DK-320 | DK-450 |
cutting speed | 75m/minute | 75m/minute |
Max web width | 320mm | 450mm |
Max unwinding diameter | 500mm | 500mm |
Max rewinding diameter | 480mm | 480mm |
overall dimension | 1.1(L)×0.9(W)×1.2 (H)m | 1.1(L)×1.2(W)×1.3 (H)m |
Power voltage | 220v±10% | 220v±10% |
weight | About 400kg | About 500kg |
